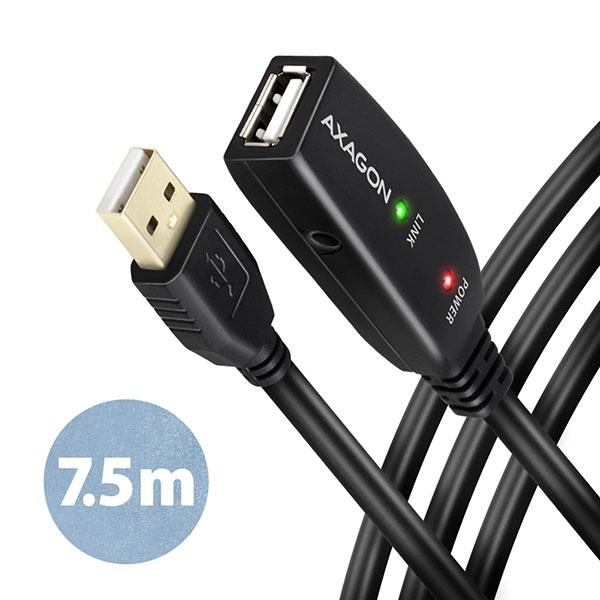

Cable USB2 A-A M/F+Repeater, 7m, AXAGON ADR-207

ADR-207 USB repeater kabel 7.5 m

Active USB 2.0 AM > AF extension cable, 7.5 m long. Power supply option.

The active USB 2.0 extension cable AXAGON ADR-207, 7.5 meters long, is ideal for connecting your computer to a USB device such as a mouse, keyboard, webcam, printer, scanner, plotter and more. The active USB repeater cable amplifies the signal and allows you to connect USB devices at a significantly greater distance than a passive cable. The cable range can be further extended by using several cables in a row.

A big advantage of the ADR-207 cable is the integrated auxiliary power connector . In most cases, USB bus power is sufficient, but for devices with higher power consumption, USB power may be insufficient over longer distances, and additional power from the mains can solve the problem in these cases.

The exceptionally compact body of the repeater cable allows for trouble-free use in electrical mounting rails or cable systems. The use of high-quality shielded cable guarantees high communication speed and minimal unwanted interference.

Input:
• USB 2.0 for connection to a computer
• USB type A (M) male connector

Output:
• USB 2.0 for connecting a remote USB device
• USB type A (F) female connector
• Transfer rate 480 / 12 / 1.5 Mbit/s (high / full / low speed)

Power supply:
• Power supply of the cable and connected devices via the USB bus (bus-power mode 5V - 500mA).
• For most connected USB devices, the USB bus power supply is sufficient and no additional power supply is required.
• The active part of the cable contains a connector (Ø 3.5 x 1.3mm external x internal diameter) for additional external power supply 5V/1-2A.
• A USB AM / 3.5mm jack power cable 1.2 m long is included in the package. The cable allows power supply from a common mobile phone charger with a USB-A output of 5V / min. 1A, e.g. AXAGON ACU-QC18 .
• When powering the repeater cable with a power adapter, an external 2.5" disk can be connected without the need for its own power supply for the disk.
• For longer USB routes with several repeater cables connected in series, the USB bus power supply may be insufficient even for USB devices with lower power consumption than an external 2.5" disk. Also in this case, boosting the power supply by connecting a power adapter can help.

Other features:
• Fully compatible with USB 2.0 and backward compatible with USB 1.1.
• Full support for Plug and Play and Hot Plug.
• Two LEDs indicating connection to power and connection of USB devices.
• A regular passive USB cable can also be used behind the active USB cable.
• Dimensions of the active part are 74 x 22 x 13 mm, cable length 7.5 m.
• Weight 254 g.

Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, macOS, Linux, Chrome OS and Android.
• Windows Server 2003 / 2008 R2 / 2012 / 2016 / 2019 / 2022 / 2025 and later (all 32- and 64-bit versions of Windows OS supported).
• Note: Drivers are included with supported operating systems and are installed automatically. No other drivers need to be installed and are not available.

The package includes:
• USB 2.0 AM > AF active cable 7.5 m long,
• USB-A / 3.5 mm power cable,
• multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
• packed in a cardboard box.
