Проектор BenQ W5800, DLP, 4K/UHD (3840x2160), 3 000 000:1, 2600lm, HDMI, USB, LAN, RS232

BenQ W5800

W5800｜4K 2600lm BenQ Home Theater Projector

Commercial Grade Cinema Projector For Your Home

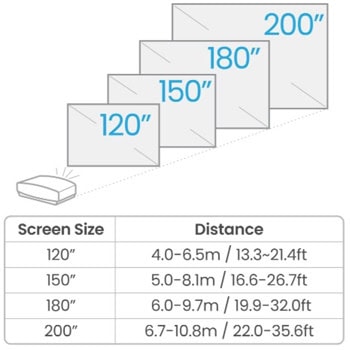

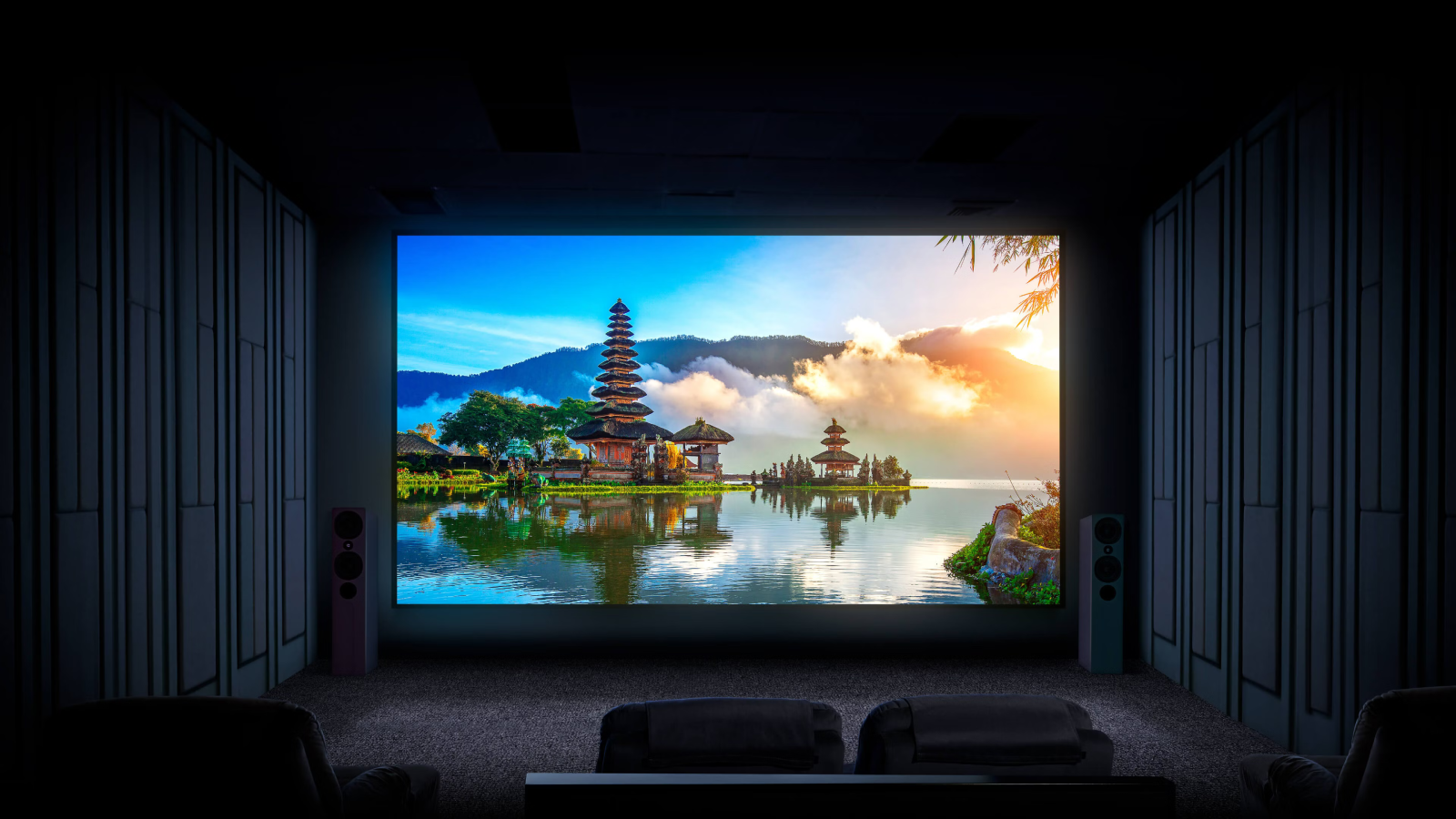

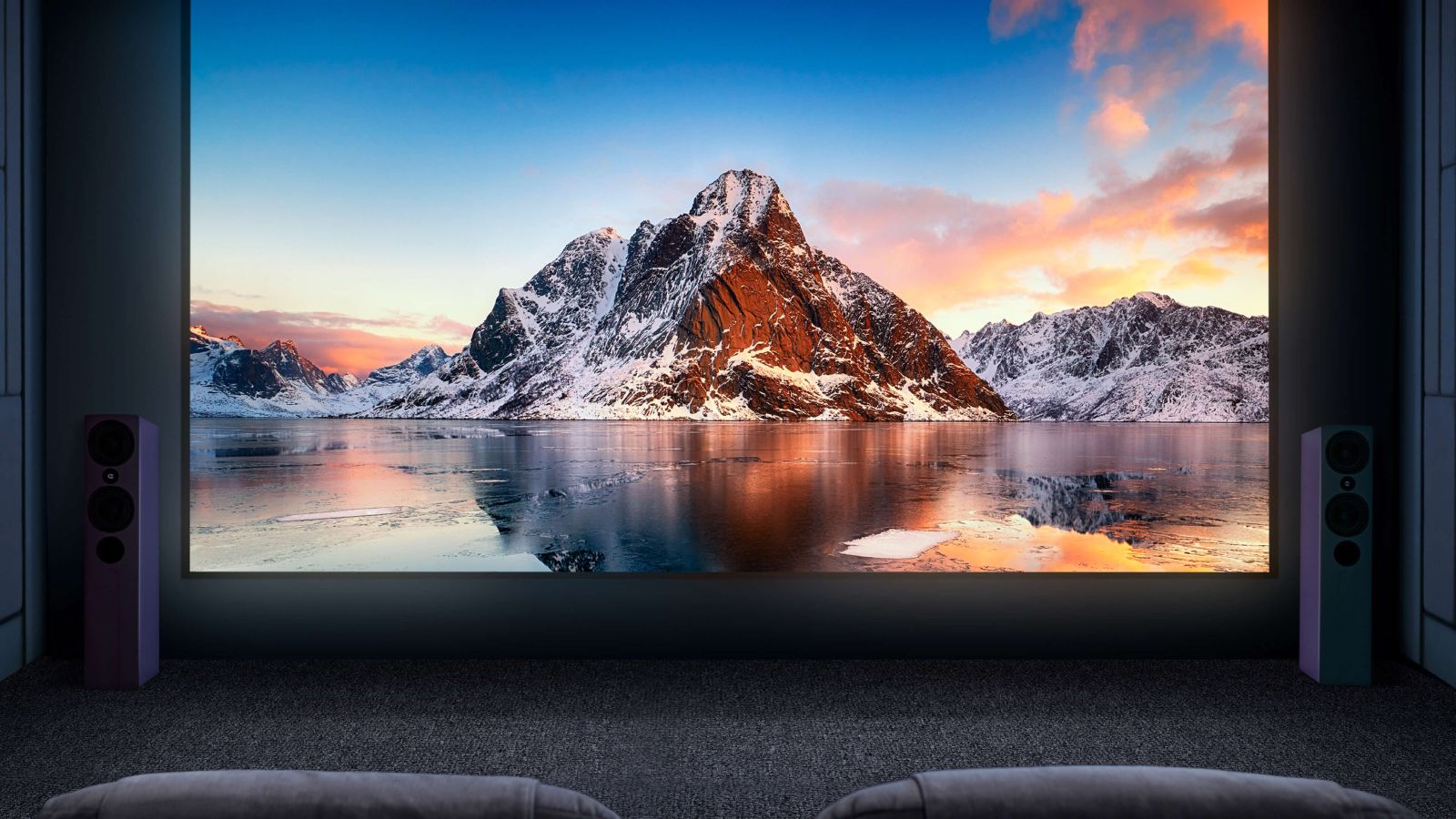

Easy Upgrade to a 200” 4K Home Theater

Experience a 200” screen with laser-sharp clarity. Precision-calibrated for 100% DCI-P3 color coverage and Delta E <2 color accuracy, the W5800 leverages installation features to easily upgrade your entertainment.

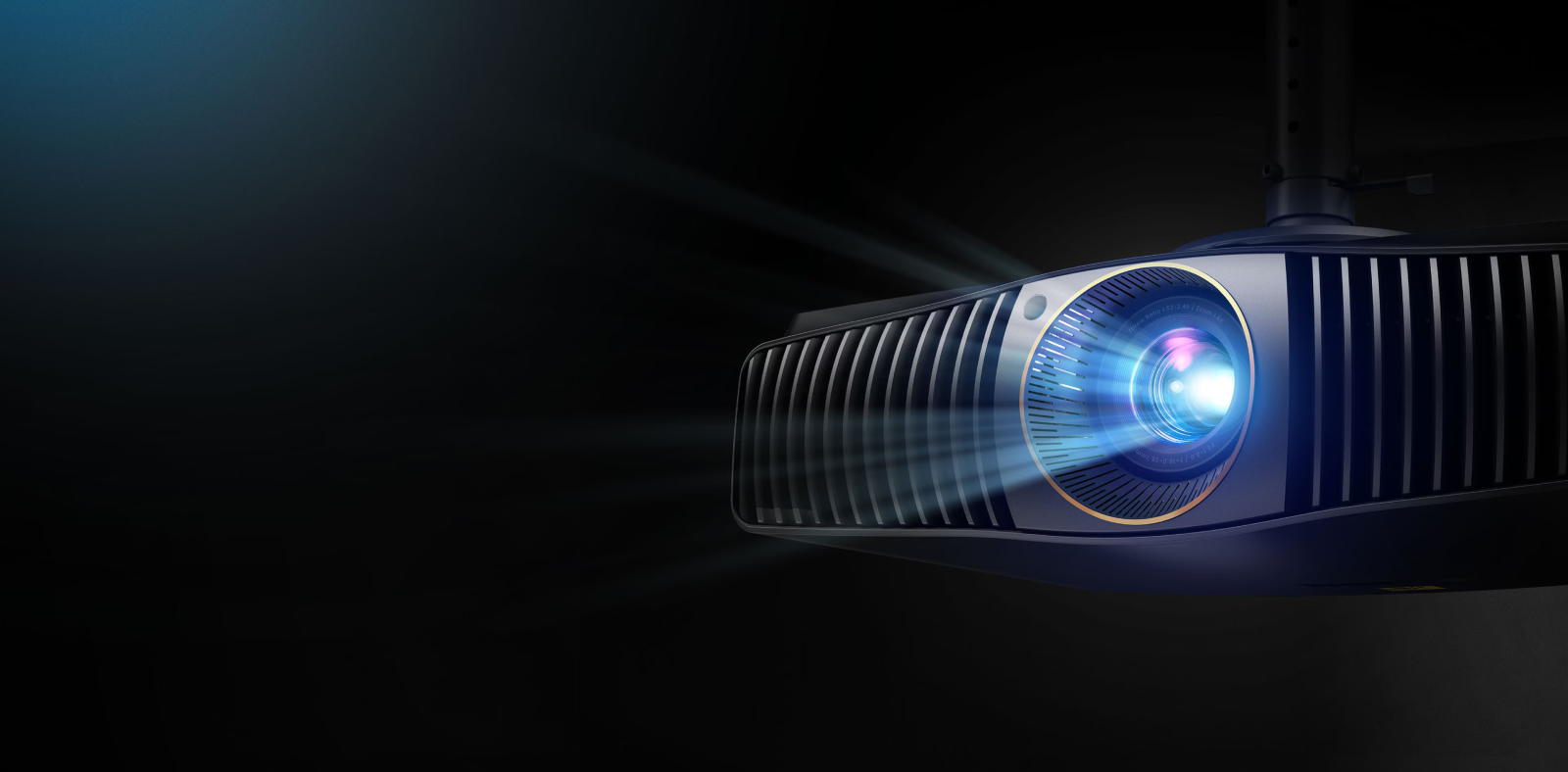

Laser Precision, Unmatched Visuals

The W5800 features a groundbreaking laser array light source, presenting a breathtaking 4K image with an impressive brightness of 2,600 lumens for vivid color and clarity.

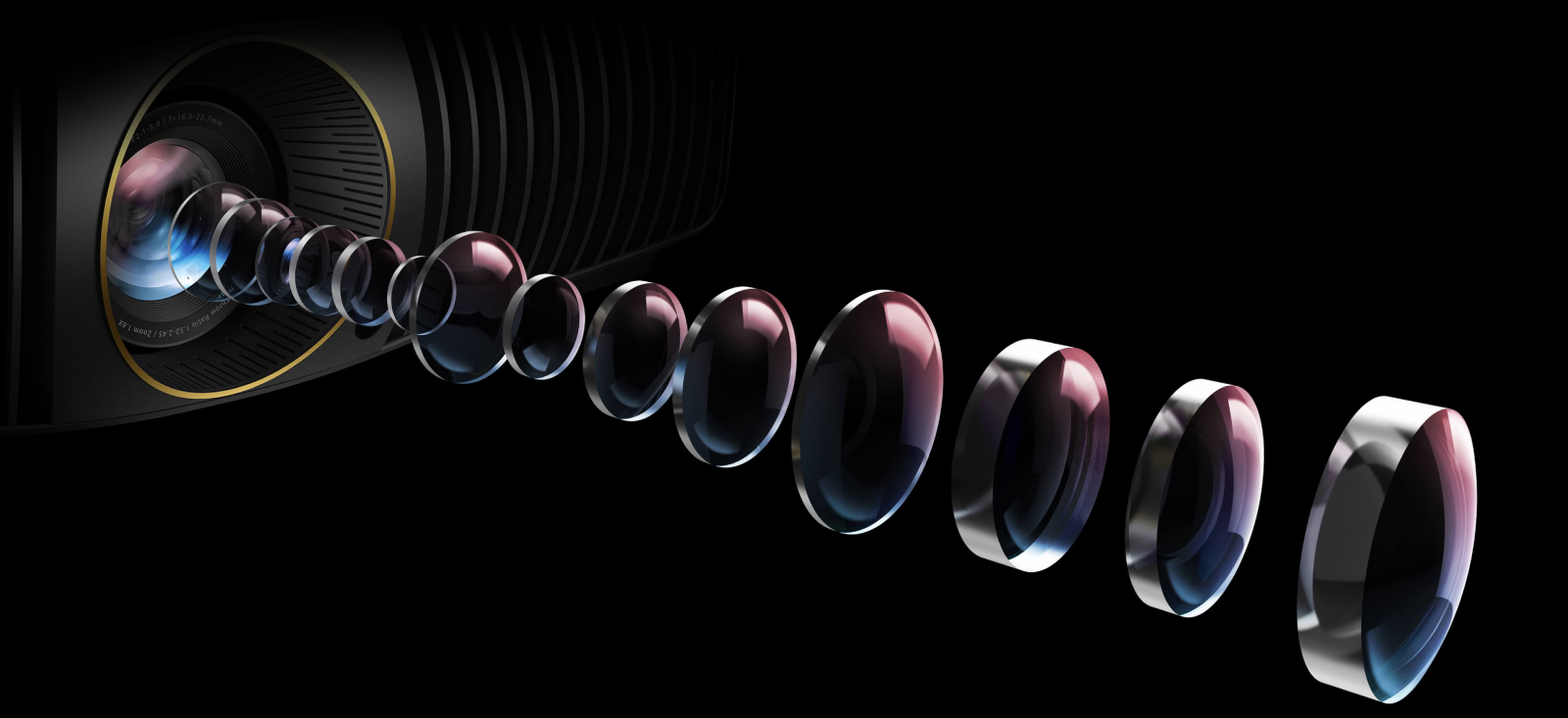

4K Clarity Through Tailor-Made Lens

Utilizing a lens system featuring 14-element including aspheric lens coated with low dispersion materials to improve clarity and uniformity, fully displaying 4K image clarity.

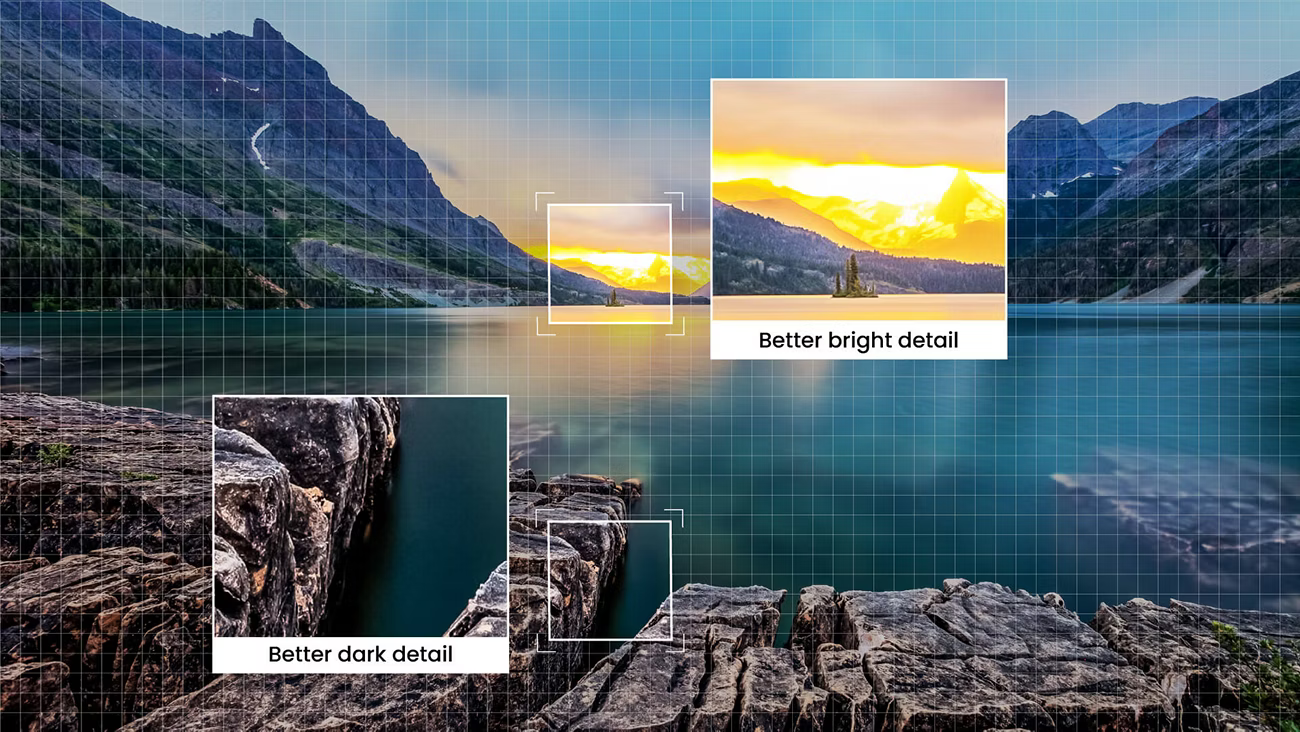

Enhanced Shadows and Highlights

Applying the industry-leading Local Contrast Enhancer (LCE) algorithm to divide images into 1,000+ zones, analyzing each segment’s brightness and adjusting gamma independently for greater dark and bright detail definition and enriched image depth.

Superior Acoustic Enjoyment

The W5800 connects you to all kinds of entertainment with universal ports including dual HDMI 2.0b (HDCP 2.2)*, two USB-Type A, SPDIF, and eARC allows 7.1 channel and Dolby Atmos audio pass through, transmitting the original-full resolution audio signal to your sound system via one HDMI cable.

Display

• Brightness (ANSI lumens)

  2600

• Resolution

  4K UHD (3840×2160)

• Native Aspect Ratio

  16:9

• Contrast Ratio (FOFO)

  (w/ Lightsource Dimming), 3,000,000:1

• Display Color

  30-bit (1.07 billion colors)

• Light Source

  Laser

• Light Source Life

  a. Normal 20000 hrs, b. ECO 25000 hrs

Optical

• Throw Ratio

  1.52~2.45

• Zoom Ratio

  1.6x

• Lens

  F/# 2.1 ~ 3.0 , f 16.0 (Wide) ~25.7 (Tele) mm

• Projection Offset (Full-Height)

  0%

• Keystone Adjustment

  2D, Vertical ± 35 degrees; Horizontal ± 35 degrees

• Lens Shift Vertical

  ±50% (Motorized)

• Lens Shift Horizontal

  ±21% (Motorized)


• DCI-P3 Coverage

  100%

• Rec. 709 Coverage

  100%

• Picture Modes

  3D, Bright, Bright Cinema, Cinema, FILMMAKER MODE, FILMMAKER MODE HDR, HDR10, HDR10+, HLG, ISF Day, ISF Night, User

Compatibility

• Input Lag

  13 ms (1080p@120Hz), 17.9ms (1080P 60Hz), 17.9ms (4K 60Hz)

• Resolution Support

  VGA (640 x 480) to 4K UHD (3840 x 2160)

• Horizontal Frequency

  15K~135KHz

• Vertical Scan Rate

  23~240Hz

I/O Interface

• HDMI in

  (x2)

• LAN (RJ45)

  (10/100 Mbps), (x1)

• 3D Sync out

  (x1), VESA

• USB Type A

  USB Type A-1 (2.0/Power Supply2.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A/Reader)

• USB Type B

  (x1), USB Type B-1(service)

• RS232 in (DB-9pin)

  (x1)

Audio

• Speaker

  No Speaker

• HDMI Audio Return

  eARC, 7.1 channel

• S/PDIF

  2-Channel, PCM, Multi-Channel, RAW

Environment

• Operating Temperature

  0~40℃

• Power Supply

  AC 100 to 240 V, 50/60 Hz

• Typical Power Consumption (110V)

  Max 450W/ Normal 380W/ ECO 240W

• Stand-by Power Consumption

  <0.5W

• Network Stand-by Power Consumption

  <2W

• Acoustic Noise (Typ./Eco.)(dB)

  30/27

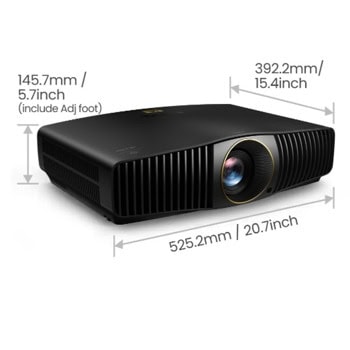

Dimension & Weight

• Dimensions (WxHxD) (mm)

  525.2x145.7x392.2

• Net Weight (kg)

  10.5

• Dimensions (WxHXD) (inch)

  20.7x5.7x15.4

• Net Weight (lb)

  23.1

Projection System

• Projection System

  DLP
