Проектор BenQ MW826STH, DLP, WXGA (1280x800), 20 000:1, 3500 lm, LAN, HDMI, VGA, USB

BenQ MW826STH

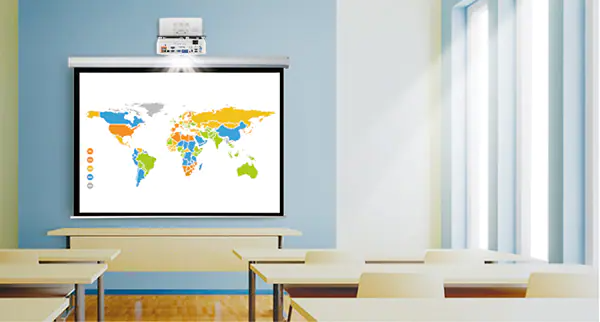

Uncompromised High Brightness
MW826STH produces 3,500 high ANSI lumen brightness and resolution for perfect projection performance with crisp images and sharp text even in bright lecture room. High brightness provides clear content under high ambient lighting, allowing lights to be kept on during classes for note taking and interactive collaboration.








Crisp Readability via High Contrast Ratio

Ideal for text, numbers, and tables widely used in instruction, BenQ education projectors leverage the native DLP advantage of digitally controlled micromirrors on the DMD chip. By completely toggling off reflective micromirrors to generate deep true blacks, BenQ education projectors create high native contrast ratio for sharp readability and crisp resolution at every single sub-pixel.

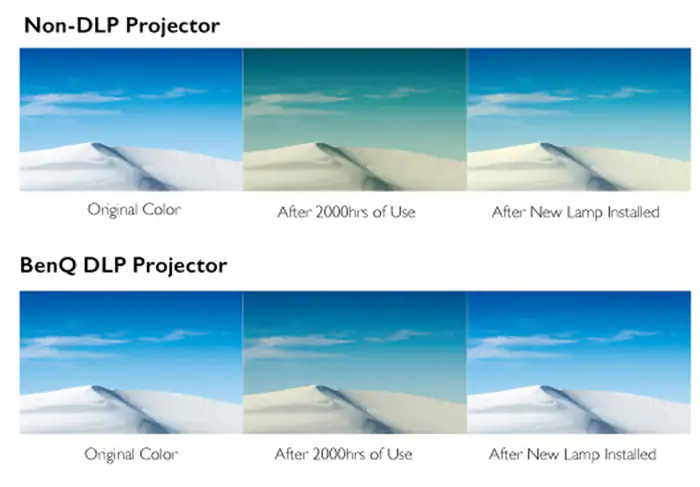

Enduring Picture Perfection from DLP Technology
With sealed design that protects the DLP chip from dust-induced image degradation and the industrial-grade durability of DLP projection technology, BenQ education projectors are capable of maintaining long-lasting picture quality by eliminating color decay. Unlike non-DLP projectors, BenQ education projectors deliver premium picture quality equivalent to the result from brand new projectors after lamp replacement.

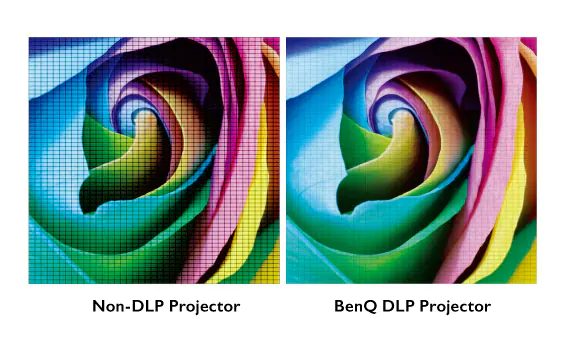

High DLP Pixel Fill Factor for Superb Viewing Experience
BenQ DLP projectors feature class-leading high fill factor, minimizing black borders around each pixel to eliminate the dreaded “screen door effect” commonly observed in non-DLP projectors. BenQ education projectors produce superior definition and clarity in small-size text and fine details for beautifully rendered images instead of pixelated graphics.









Bigger Images
BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 120 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.









Спецификации:




ll Specifications
Optical
Zoom Ratio
Fixed
Keystone Correction
1D, Vertical +/- 30 degrees
Projection Size
70"~120" / 120"
Projection Offset**
105%±2.5% (Full-Height)

Display
Projection System
DLP
DMD type
0.65" WXGA
Brightness
3500AL
Display Color
30 Bits/1.07 Billion Colors
Aspect Ratio
Native 16:10 (5 aspect ratio selectable)
Light Source
Lamp
Light Source Life*
6000/10000/10000/15000 hours
(Normal/Economic/SmartEco/LampSave)
Native Resolution
WXGA, 1280x800
Contrast Ratio
20,000:1

Audio
Built-in Speaker
10Wx1

Special Feature
Security
Security Bar, Kensington lock
Feature
SmartEco Power Saving Technology, 0.61 Short Throw Ratio, Designed for Education & IWB

Connectivity
I/O Port
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 2
Audio in (Mini Jack) x 2
Audio out (Mini Jack) x 1
Audio L/R in (RCA) x 1
Speaker 10W x 1
USB (Type A) x 1 (power only 5V/1.5A)
USB (Type Mini B) x 1 (Download & page/down)
RS232 (DB-9pin) x 1
LAN (RJ45) x 1

Compatibility
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200)
*RB-Reduced Blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23Hz ~120Hz
HDTV Compatibility
480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility
Frame Sequential: Up to 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side Half: Up to 60Hz 1080p
Top Bottom: Up to 60Hz 1080p

Power
Power Consumption (Max/Normal/Eco)
Typical 260W
Standby Power Consumption
Standby<0.5W, Network standby<2W
Power Supply
AC 100 to 240 V, 50/60 Hz

Dimension and Weight
Product Dimensions (WxHxD)
296 (W)*239(D)*120(H) mm
Product Weight
2.6 Kg (5.7 lbs)
