Проектор BenQ LU9800, DLP, WUXGA (1920x1200), 3 000 000:1, 10000lm, HDMI, VGA, LAN, HDBaseT, USB, RS232

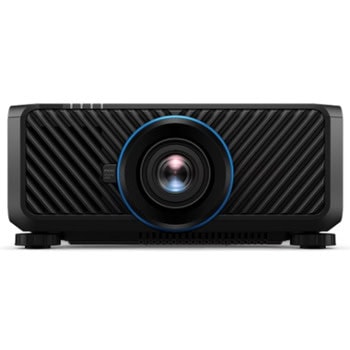

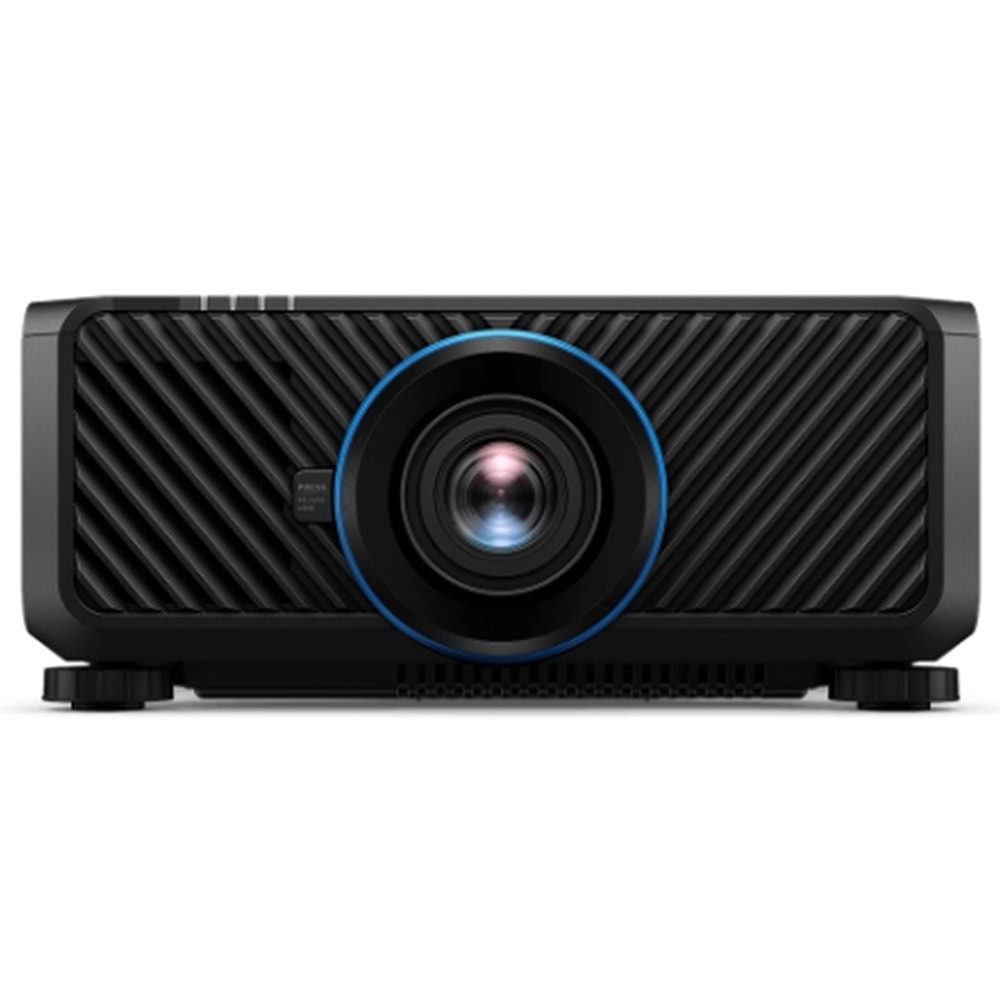

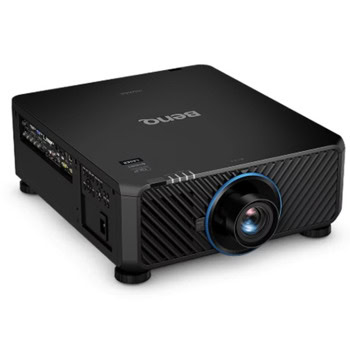

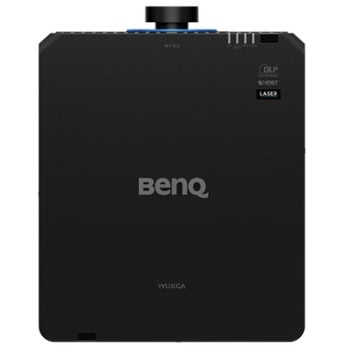

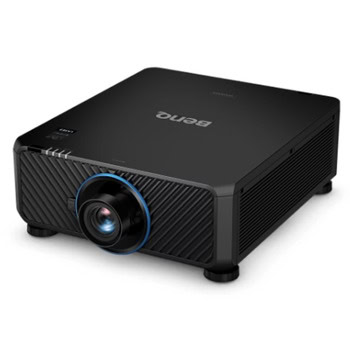

LU9800 10000lms WUXGA Large-Venue Projector
Brilliant Image Performance, Excellent Installation Flexibility and Long-lasting Reliability

• Compatible with 9 electrical optional lenses to maximize throw ratio coverage
• Support BenQ factory white balance calibration
• Up to 70,000 hrs laser light source life under Dimming Mode
• 3000000:1 high contrast ratio

Revolutionary Laser Technology

BenQ, the world’s #1 DLP brand, introduces a full line of innovative projectors featuring proprietary DLP high brightness laser technology for large venue applications. Combining high brightness, excellent image quality, installation flexibility and a maintenance-free laser light source, BenQ Laser Projectors enable immersive public displays and innovative visual communication in ways never before possible.

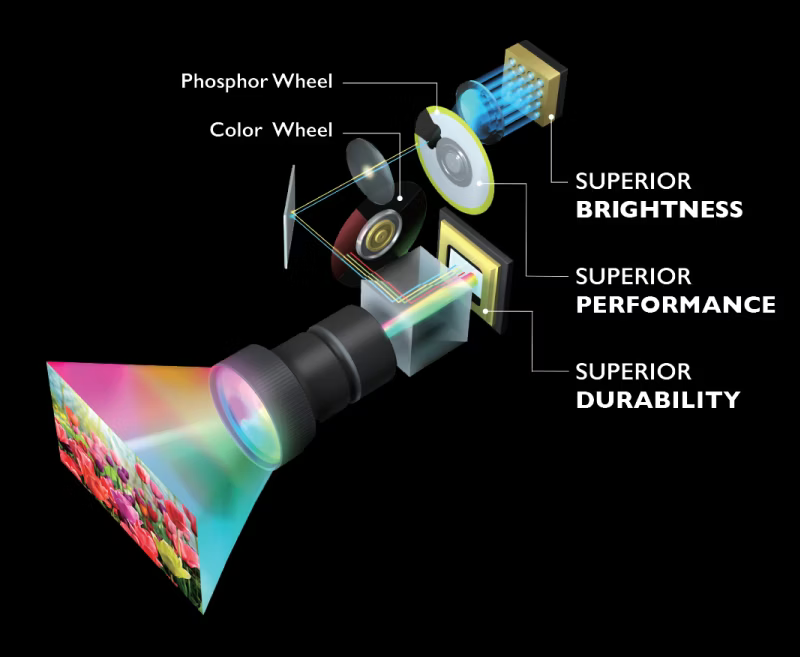

Dual Color Wheels Produce 95% Rec.709 Color Coverage for Optimal Color Performance

To harness the high output of the powerful laser light source, BenQ engineers utilized dual color wheels for laser projectors to significantly achieve laser-precise RGBY color by eliminating the white segment of a conventional color wheel. Through an ideal mixture of the red, green, blue and yellow color segments, BenQ laser projectors produce brilliant color and a wider color gamut than conventional lamp-based projectors.

DLP Technology for Vibrant Color Endurance

BenQ laser projectors are based on the absolute reliability of 1chip DLP design. The highly durable DLP chip is rated to last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text for countless uses.

Factory White Balance Calibration

BenQ exclusive white balance adjustments can reduce white balance variables between images projected from different projectors to such a low level that the most people cannot see any difference. This allows for seamless and accurate picture quality without disruptive discrepancies and save time in adjusting color when installing projectors.

All Specifications

Display

Brightness (ANSI lumens)

10000

Resolution

WUXGA (1920x1200)

Native Aspect Ratio

16:10

Contrast Ratio (FOFO)

3,000,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Laser

Light Source Life

a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 70000 hrs

Optical

Throw Ratio

(Optional Lens) Ultra Short Throw: 0.38 LS1ST3A Short throw 0.77-1.1 LS1ST2A Wide Zoom 2: 1.1-1.3 LS1ST1A Wide Zoom 1: 1.25-1.6 LS1SDA Standard: 1.54-1.93 LS1LT0 Semi long: 1.93-2.9 LS1LT1 Semi long 1: 2.22-3.67 LS1LT2 Long zoom 1: 3.58-5.38 LS1LT3 Long Zoom2: 5.31~8.26

Zoom Ratio

(Optional Lens) Standard: 1.25x, (Optional Lens) Wide Zoom: 1.18x, (Optional Lens) Semi Long: 1.5x, (Optional Lens) Long Zoom 1: 1.67x, (Optional Lens) Ultra Short Throw: Fixed, (Optional Lens) Ultra Wide: 1.25x, (Optional Lens) Semi Long: 1.65x, (Optional Lens) Long Zoom 1: 1.5x, (Optional Lens) Semi Throw: 1.28x

Lens

LS1ST4 Ultra Short Throw (5J.JCY37.001) LS1ST3A Short throw (5J.JPN37.001) LS1ST2A Wide Zoom 2 (5J.JPN37.002) LS1ST1A Wide Zoom 1 (5J.JPN37.003) LS1SDA Standard (5J.JPN37.004) LS1LT0 Semi long (5J.JPN37.005) LS1LT1 Semi long 1 (5J.JAM37.051) LS1LT2 Long zoom 1 (5J.JAM37.031) LS1LT3 Long Zoom2 (5J.JAM37.041)

Projection Offset (Full-Height)

0%

Keystone Adjustment

2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Lens Shift Vertical

(Optional Lens)Ultra Short Throw: V: (-3% ~ +7%) H: (-5%- 5%) LS1ST3A Short throw: '-15 ~ +55% Vertical; -5% ~ +5% Horizontal LS1ST2A Wide Zoom 2 '-15 ~ +55% Vertical; -5% ~ +5% Horizontal LS1ST1A Wide Zoom 1: '-15 ~ +55% Vertical; -5% ~ +5% Horizontal LS1SDA Standard '-15 ~ +55% Vertical; -5% ~ +5% Horizontal LS1LT0 Semi long (5J.JPN37.005) '-15 ~ +55% Vertical; -5% ~ +5% Horizontal LS1LT1 Semi long 1 0 ~ +50% Vertical; -10% ~ +10% Horizontal LS1LT2 Long zoom 1: 0 ~ +50% Vertical; -10% ~ +10% Horizontal LS1LT3 Long Zoom2: 0 ~ +50% Vertical; -10% ~ +10% Horizontal


Rec. 709 Coverage

95%

Picture Modes

3D, Bright, DICOM SIM, HDR10, HLG, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

Input Lag

33.4 ms (1080P 60Hz)

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

Horizontal Frequency

15K~135KHz

Vertical Scan Rate

23~120Hz

I/O Interface

PC in (D-sub 15pin)

(x1)

Monitor out (D-sub 15pin)

(x1)

HDMI in

(x2)

LAN (RJ45)

(x1)

HDBaseT (RJ45)

(x1)

3D Sync in

(x1)

3D Sync out

(x1)

USB Type A

(x1)

USB Type B

USB Type B-1(service)

RS232 in (DB-9pin)

(x1)

RS232 out (DB-9pin)

(x1)

Wired Remote in (3.5mm Mini Jack)

(x1)

Wired Remote out (3.5mm Mini Jack)

(x1)

DC 12V Trigger (3.5mm Jack)

(x1)

Audio

Speaker

No Speaker

Audio in (3.5mm Mini Jack)

(x1)

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

893W

Stand-by Power Consumption

<0.5W

Network Stand-by Power Consumption

<6W

Acoustic Noise (Typ./Eco.)(dB)

42/38

Dimension & Weight

Dimensions (WxHxD) (mm)

500 x 211 x 587.3

Net Weight (kg)

26.8

Projection System

Projection System

DLP
