Проектор BenQ LU960, DLP, WUXGA (1920x1200), 3 000 000:1, 5500lm, DisplayPort, HDMI, VGA, LAN, USB, RS232

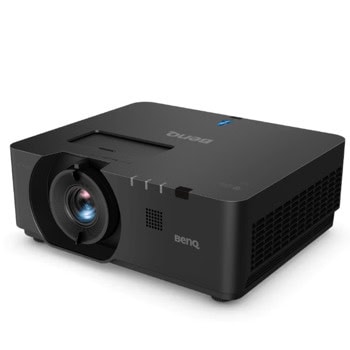

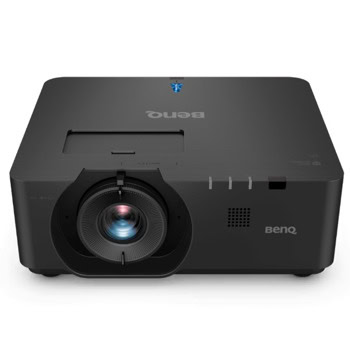

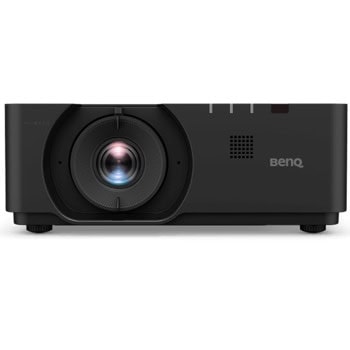

BenQ LU960

5500 ANSI Lumen WUXGA Simulation Projector

Reproduce True-to-life Images for Totally Immersive Experiences (T/R 1.13-1.70)

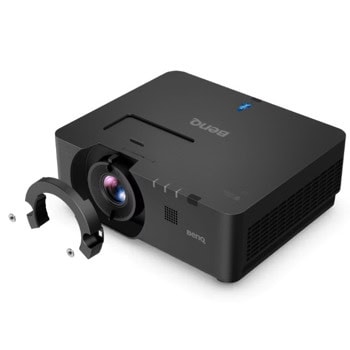

• Flexible Installation: Support wide corner fit adjustment and precise square lens shift route
• Amazing Colour Accuracy: sRGB Mode for 92% Rec 709 colour accuracy
• Fast Mode: Latency<17ms (@WUXGA/60Hz) response enables realistic simulation and gaming
• White Balance Adjustment in Factory: White balance calibration for seamless blending
• Maintenance-Free Laser: Dustproof sealed laser engine with 20,000 hours of life at full power

DLP Laser Projector with Easy Maintenance

Revolutionary Laser Technology

Extending its full line of revolutionary laser projectors, the world’s No.1 DLP brand BenQ presents LU960, especially designed for fixed lens installation and reserves installation flexibility to merge into limited space.

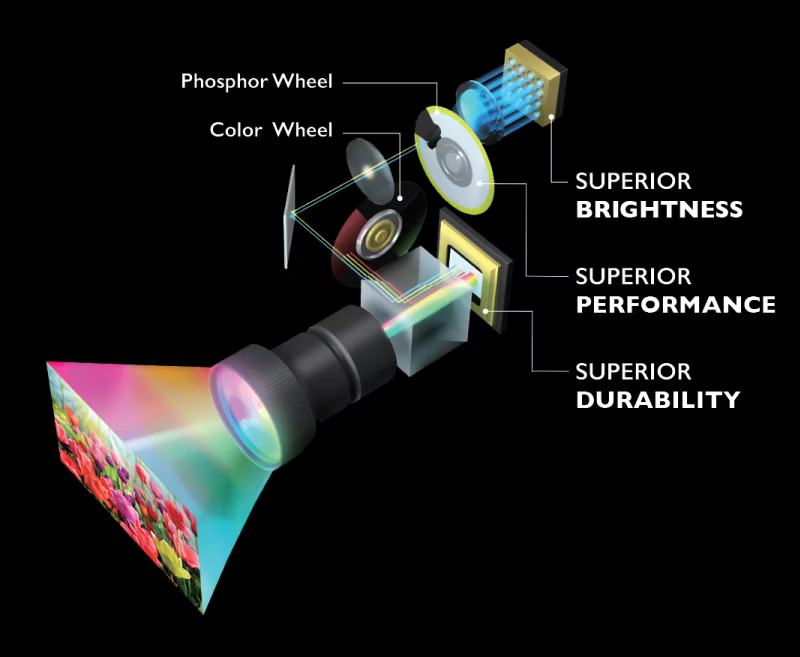

DLP Technology for Long Lasting Vibrant Color

BenQ laser projectors run on Academy Award-winning DLP technology to deliver long-lasting and reliable color for the life of the projector. The DLP chip is rated for 200,000 hours and will display stunning whites and accurate colors without the risk of yellowing over time.

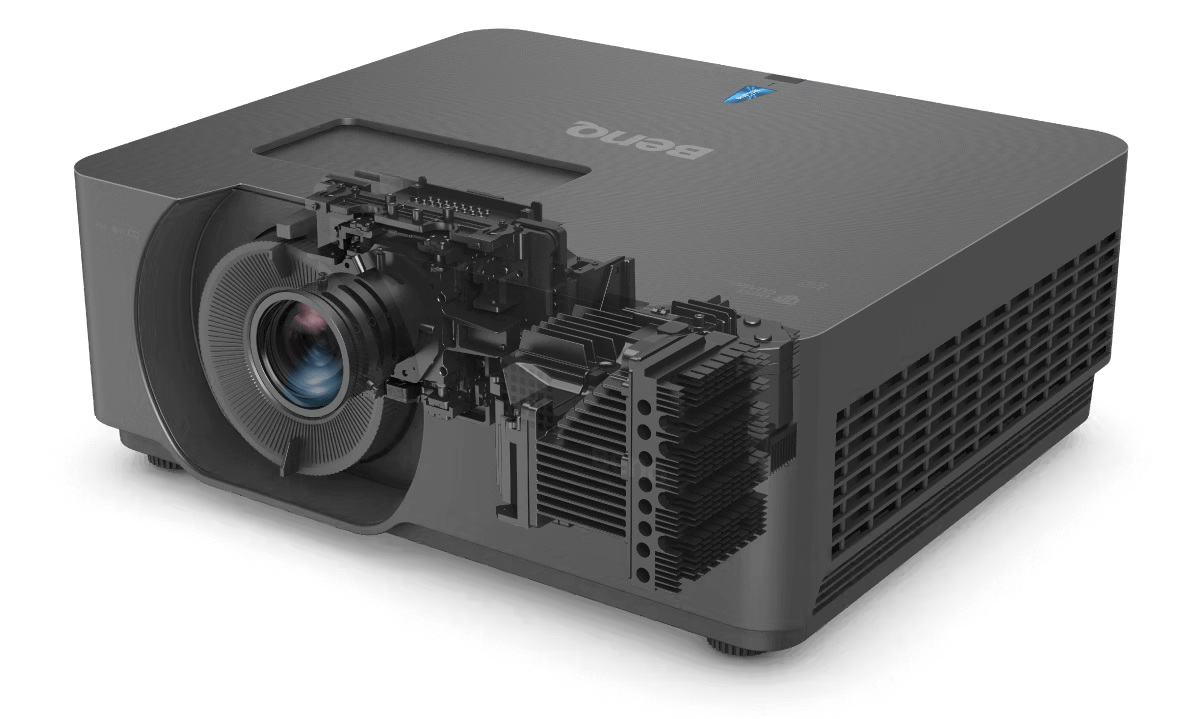

Superior Dustproofing for Severe Conditions with IP5X Certification

BenQ laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser package, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan.

Ensure Consistent Brightness Blending with Custom Light Mode

Custom Light Mode modulates light power output from 25% to 100% at a 1% rate, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.

All Specifications

Display

Brightness (ANSI lumens)

5500

Resolution

WUXGA (1920x1200)

Native Aspect Ratio

16:10

Contrast Ratio (FOFO)

3,000,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Laser

Light Source Life

a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 70000 hrs

Optical

Throw Ratio

1.127-1.697

Zoom Ratio

1.5x

Lens

F/# = 1.8 ~ 2.43,f = 12.1 ~ 18.1 mm

Projection Offset (Full-Height)

0%

Keystone Adjustment

2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Lens Shift Vertical

-62%~ +62%

Lens Shift Horizontal

-24%~ +24%


Rec. 709 Coverage

92%

Picture Modes

3D, Bright, Golf, HDR10, HLG, Presentation, Simulator, sRGB, User 1, User 2, Video

Compatibility

Input Lag

8.3 ms (1080P 120Hz)

Resolution Support

VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency

15K~135KHz

Vertical Scan Rate

23~120Hz

I/O Interface

PC in (D-sub 15pin)

(x1), PC in-1

Monitor out (D-sub 15pin)

(x1)

HDMI in

(x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)

Monitor out (HDMI)

(x1)

Display Port

(x1)

LAN (RJ45)

(x1)

HDBaseT (RJ45)

(x1), Control/Video/Audio

3D Sync in

(x1)

3D Sync out

(x1)

USB Type A

(x1), USB Type A-1 (2.0/Power Supply1.5A)

USB Type Mini B

(x1), USB Type Mini B-1(service)

RS232 in (DB-9pin)

(x1)

Wired Remote in (3.5mm Mini Jack)

(x1)

DC 12V Trigger (3.5mm Jack)

(x1)

Audio

Speaker

(x1), 10W

Audio in (3.5mm Mini Jack)

(x1)

Audio out (3.5mm Mini Jack)

(x1)

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

450W

Stand-by Power Consumption

<0.5W

Network Stand-by Power Consumption

<2W

Accessories

Remote Control w/ Battery

RCA024

Power Cord (by region)

x1 (1.8M)

3D Glasses

DGD5, (Optional)

Installation Guide

1 (8L)

Warranty Card (by region)

Yes

Dimension & Weight

Dimensions (WxHxD) (mm)

479.6 x 182.8 x 402

Net Weight (kg)

12

Dimensions (WxHXD) (inch)

18.9 x 7.2 x 15.8

Net Weight (lb)

26.46

Projection System

Projection System

DLP

Optical

Throw Ratio

1.127-1.697

Zoom Ratio

1.5x

Lens Shift

Vertical: ± 62 degrees‎ , Horizontal: ± 24 degrees‎

Keystone Correction

Vertical: ± 30 degrees‎ , Horizontal: ± 30 degrees‎

Projection Size

30"-300"

Projection Offset

0%

Display

Projection System

DLP Single 0.48" WUXGA

DMD type

DC3 DMD Chip

Resolution

1920 X 1200 pixels

Brightness

5500 ANSI Lumens

Contrast Ratio*

3,000,000:1

Display Color

1.07 Billion Colors

Aspect Ratio

Native 16:10 (6 aspect ratio selectable)

Light Source

Laser diodes

Light Source Life*

20,000/38,000/70,000 hours (Normal/Eco/Dimming)

Audio

Built-in Speaker

10W

Special Feature

Security

Security Bar,Kensington anti-theft lock slot

Feature

Rec.709 96%
4K Compatible
360 Degree and Portrait Projection
Custom Lightsource Mode (light power adjustment)
Dust Proof Engine
24/7 Hours Operating
Large H/V Lens Shift
Corner fit/ 2D keystone/ Digital shrink and shift
Blanking
Dynamic Dimming
Native Resolution Switch between 1080p and WUXGA
Fast mode to 16 ms latency
White balance calibration

Connectivity

HDMI

HDMI (HDCP 2.2) x2; HDMI out x1

PC (D-sub 15pin)

x1

Monitor out (D-sub 15pin,Female)

x1

Audio in(mini jack)

x1

Audio out (mini jack)

x1

RS232 In (D-sub 9pin, male)

x1

USB TypeA-2 (5V,1.5A)

x1

USB Type mini B

x1 (FW download/ service)

IR Receiver(Front+Top)

x2 (Front +Rear)

LAN Port(RJ45 for Network )

x1

Compatibility

Resolution Support

VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency

15K~135KHz

Vertical Scan Rate

23 ~ 120 Hz

HDTV Compatibility

480i, 480p, 576i, 567p, 720p, 1080i, 1080p

Video Compatibility

NTSC, PAL, SECAM‎

Power

Power Consumption (Max/Normal/Eco)

500W/450W/350W

Standby Power Consumption

Normal < 0.5Watts. Network < 2W.

Power Supply

100 ~ 240V AC

Dimension and Weight

Product Dimensions (WxHxD)

479.6 x 182.8 x 402 mm

Product Weight

12 kg

Operation Condition

Noise Level(Normal/Eco)

37/35dBA

Operating Temperature

0 ~ 40°C
