AXIS M4308-PLE Panoramic camera
НазадAXIS M4308-PLE Panoramic cameraAXIS M4308-PLE Panoramic cameraAXIS M4308-PLE Panoramic cameraAXIS M4308-PLE Panoramic cameraНапред

IP камера AXIS M4308-PLE, куполна панорамна, 12 MP(3840 x 2160@30FPS), 1.3 mm Fixed, MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 + IR осветеност(до 30 м.), външна, IP66/4X/IK10/, PoE Class 4, Ethernet 10Base-T/100Base-TX, microSD Card/microSDHC Card

id 226832 Код: SCMDGAXIS02100001
1337.35 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиДокументация

 AXIS M4308-PLE

IP камера AXIS M4308-PLE, куполна панорамна, 12 MP(3840 x 2160@30FPS), 1.3 mm Fixed, MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 + IR осветеност(до 30 м.), външна, IP66/4X/IK10/, PoE Class 4, Ethernet 10Base-T/100Base-TX, microSD Card/microSDHC Card - характеристика 1

This discreet, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview with audio capture. A deep learning processing unit (DLPU) allows you to benefit from analytics based on deep learning on the edge.

Extended possibilities

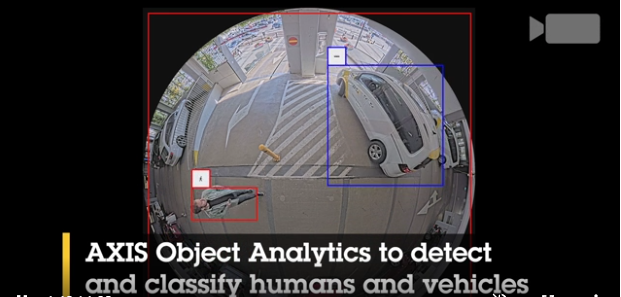

AXIS M4308-PLE offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, this mini dome enables unique opportunities to take advantage of analytics based on deep learning on the edge. It comes with AXIS Object Analytics allowing you to detect and classify humans and vehicles for reliable detection with fewer false alarms.

And, with forensic search functionality, it eliminates the need to scroll through endless hours of video surveillance and you can search through hours of video in seconds.

IP камера AXIS M4308-PLE, куполна панорамна, 12 MP(3840 x 2160@30FPS), 1.3 mm Fixed, MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 + IR осветеност(до 30 м.), външна, IP66/4X/IK10/, PoE Class 4, Ethernet 10Base-T/100Base-TX, microSD Card/microSDHC Card - характеристика 2
IP камера AXIS M4308-PLE, куполна панорамна, 12 MP(3840 x 2160@30FPS), 1.3 mm Fixed, MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 + IR осветеност(до 30 м.), външна, IP66/4X/IK10/, PoE Class 4, Ethernet 10Base-T/100Base-TX, microSD Card/microSDHC Card - характеристика 3

Sharp images and audio
Featuring a stereographic lens

AXIS M4308-PLE ensures a higher resolution around the outer portion of the view so objects located in the camera’s peripheral view can be captured more clearly. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image.

With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus

Axis OptimizedIR for surveillance in pitch darkness. Featuring four built-in microphones with voice enhancer it offers high-quality audio capture and great noise suppression. And, with complete 360° overview you’ll be sure to record everything with no blind spots.



Secure and easy

Based on a powerful Axis chipset, AXIS M4308-PLE features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. It’s delivered factory-focused for ease of installation.

And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera.

The discreet, flat design blends seamlessly into any environment. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

IP камера AXIS M4308-PLE, куполна панорамна, 12 MP(3840 x 2160@30FPS), 1.3 mm Fixed, MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 + IR осветеност(до 30 м.), външна, IP66/4X/IK10/, PoE Class 4, Ethernet 10Base-T/100Base-TX, microSD Card/microSDHC Card - характеристика 4



Technical specifications





General

Device TypeNetwork panoramic camera
Audio SupportYes: built-in four microphones
Audio FormatsPCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Form FactorDome
Connectivity TechnologyWired
Width14.9 cm
Depth14.9 cm
Height6.9 cm
Weight850 g
LocalisationArgentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe



Camera

TypeColour - Day&Night - fixed - outdoor
Digital Video FormatMPEG-4, MJPEG, H.264, AVC, HEVC, H.265
Max Digital Video Resolution3840 x 2160 (panorama) / 2880 x 2880 (original)
Exposure Range1 sec - 1/22000 sec
Minimum Illumination0.19 lux - colour - F2.4 - 50 IRE
0.04 lux - B&W - F2.4 - 50 IRE
0 lux - IR
Frame Rate (max)30 frames per second
RAM2 GB
Flash Memory1 GB
FeaturesSharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, infrared cut filter, Privacy Mask Function, quad video stream, password protection, Variable Bitrate (VBR), OptimizedIR, auto gain control, image overlay, exposure control, CorridorView, embedded SOC processor, Forensic WDR, Adaptive Bitrate (ABR), Lightfighter technology, compression, text overlay



Image Sensor

Type12 MP PS RGB CMOS 1/1.7"



Lens Construction

TypeFixed focal
Focal Length1.3 mm
Lens IrisF/2.4 fixed iris
Horizontal Field of View (degree)183 - 183



Interfaces

Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT
Alarm Inputs Qty1
Alarm Outputs Qty1



Expansion / Connectivity

PortsLAN/power - RJ-45
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card



Miscellaneous

Included AccessoriesMounting bracket, cable gaskets, drill hole template, I/O connector, connector guard, cable hole lid, view protector, screw bit T20
Compliant StandardsNEMA Type 4X, IK10, IP66, IEEE 802.3at
ColourWhite



Power

Power RequirementsPoE Class 4
Power Device7.9 Watt



Software / System Requirements

Software IncludedWindows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Environmental Parameters
Min Operating Temperature-40 °C
Max Operating Temperature50 °C
Relative Humidity (operating)10 - 100%







    Виж още Цифрови IP камери AXIS
    Виж всички Цифрови IP камери в категорията
    Документация
    Технически характеристики
    Вид:  Fisheye камери
    Резолюция:  4K
    Аудио:  Говорител
    Безжична:  Не
    Външен монтаж:  Да
    IR Осветление:  Да
