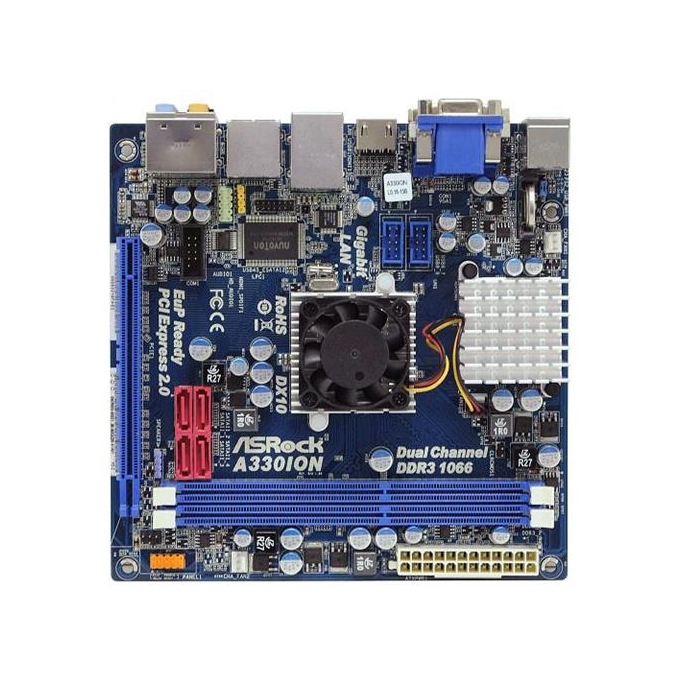

Дънна платка ASRock A330ION, MCP7A-ION, Dual Core Intel® Atom™ 330 1.6GHz, DDR3, VGA+PCI-E (HDMI & DVI), SB7.1, Lan1000, SATA RAID 0,1, Mini-ITX

ASRock A330ION

CPU

- Intel® Dual-Core Atom™ Processor 330 (1.6 GHz)
- Supports FSB533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T

Chipset

- NVIDIA® MCP7A-ION

Memory

- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*
*Due to the CPU limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® OS.

BIOS

- 8Mb AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM Voltage Multi-adjustment
- Supports Smart BIOS

Audio, Video and Networking

Graphics

- Integrated NVIDIA® GeForce 9 Series
- DX10 VGA, Pixel Shader 4.0
- Max. shared memory 512MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 1920x1440 @ 75Hz
- Supports HDCP function
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

Audio

- 7.1 CH HD Audio (VIA® VT2020 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY RTL8211CL
- Supports Wake-On-LAN

Expansion / Connectivity

Slots

- 1 x PCI Express 2.0 x16 slot

Connector

- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0 and RAID 1), NCQ, AHCI and ""Hot Plug"" functions*
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
*Please noted that AHCI/RAID mode is not supported under Windows® XP/XP 64bit OS.

Rear Panel I/O
I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Powered eSATAII/USB Connectors
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature

- ASRock OC Tuner
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite and Creative Sound Blaster X-Fi MB) (OEM and Trial Version)

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 1 x Bundled Intel® Dual-Core Atom™ Processor 330
- 2 x SATA Data Cables (optional)
- 1 x SATA 1 to 1 Power Cable (optional)

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)

OS

- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications

- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
