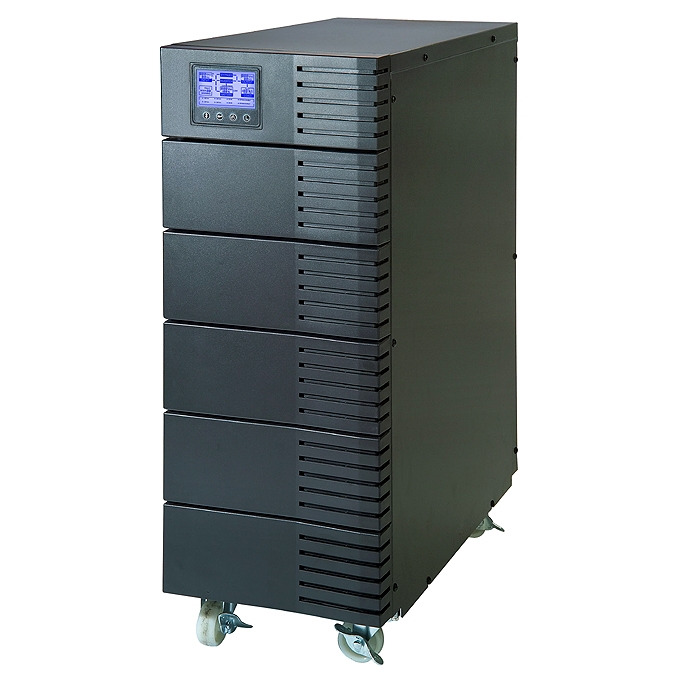

UPS ARTronic Titanium 10kVA, 3.1, ON Line, RS232, 3Phase in ->1Phase Out, 2г. гаранция

ARTon Titanium Series 3.1 10 - 15 - 20 kVA

• VFI Topology Class 1 Double Conversion UPS
• Graphic LCD Display and Touchpad Control Keys
• Green Energy with Input Power Factor Correction (PFC)
• Automatic Restart & Cold Start Function
• Network Supported Monitoring & Control Software
• SNMP & AS400 Network Monitoring Options
• Silent & Economic Operation with Adjusted Fan Speed
• Integrated Maintenance Bypass Switch
• 3 Units in Paralel / Redundant Operation

ARTon Titanium 3.1-10 kVA

Capacity (VA / Watt) - 10000 VA / 7000 W
3 In Parallel Capacity (VA / Watt) - 30000 VA / 21000 W

INPUT - RECTIFIER

Voltage & Voltage Range - 380 VAC, 3 Phase + Neutral
Voltage Tolerance - 304 ? 478 VAC ± 3%
Power Factor - ? 0.95
Current (nominal) - 13 A / Phase - 39 A
Frequency & Frequency Range - 50 Hz, 46 ~ 54 Hz, Adjustable to work with Any Generator

OUTPUT - INVERTER and BYPASS

Load Power Factor Range - 0.65 ~ 1.0

Voltage & Voltage Tolerance - 220 / 230 / 240 VAC ± 1%

Dynamic Response - Maximum Deviation ? 5% at 50% - 100 - 50% Load Change

Recovery Time - 60 mili seconds to be with in ± 1% Static Tolerance at 0-100-0 % Load Change

Total Harmonic Distortion (THD) - ? 2% at linear load, ? 6% at non linear load
Frequency & Frequency Range - 50 Hz, ± 0.05 Hz Battery Operation

Voltage Waveform - Pure Sine Wave
Crest Factor - 3 : 1

Over Load - 10 minutes for 105 ~130%, > 130% Transfer to Bypass after 1 second, Shutdown after 1 minute (in Line Mode)

Short Circuit Protection - Electronic short circuit protection

Bypass & Transfer Time - Standard Static Bypass, 0 (zero) for Line Mode to Battery and Inverter to Bypass Mode

Bypass Tolerance & Adjustment - 176 ? 261 VAC Adjustable, Bypass can be Disable or Enable to use in Standby Mode


BATTERY

Type & Placement - Maintenance Free Dry Type Battery, Internal or External Regarding to Demand

Capacity & Quantity - 12 V 9 Ah x 20 pieces

Backup Time (100% / 50% Load) - 6 / 15 minutes

Nominal / Charge Voltage - 240 / 274 VDC ± 1%
End of Discharge Voltage - 220 VDC ± 3 VDC

Battery Charge Current & Charging Time - Standard 2 A Charge Current for 6-10 kVA, 7-8 hours Charge Time to 90% Capacity after Discharge, 4.2 A Charge Current for 3.1 10-15-20 kVA


INDICATORS & CONTROL PANEL

Type - Graphic LCD Panel

Control Panel - Touchpad Buttons (On/off, Audible Alarm Disable, Up/Down, Enter)

Measurements & Warnings - UPSStatus, Input / Output Voltage & Frequency, Load %, Battery Capacity & Voltage, Warning & Alarm Messages

Indications (LCD) - Mimic Diagram for Energy Flow, Measurements, Warnings, Faults, Adjustment


PROTECTIONS

Overload - Electronic Protection, Load Transfer to Bypass without any break after Overload period

Short Circuit - Automatic Inverter Shutdown

Over Temperature - Load transfer to Bypass for 90°C Internal Temperature, Transfer back to Inverter when Internal Temperature < 80°C

Modem / Network Protection - Surge protection for Modem / Network line


AUDIBLE ALARMS

Warning Type and Warnings - Buzzer, Mutable with Audible Alarm Disable; Different Audible Signals for Battery Operation, Battery Low Voltage, UPS Fault, Overload


COMMUNICATIONS

Interface & Protocol - Smart RS232 Communication with DB9 (female) Port, Optional SNMP & AS400

Software - Free of Charge, Network Supported Monitoring & Control Software, Software Supports Windows 98/ME/NT/2000/XP/2003, Linux, Sun Solaris 7/8/9, IBM Aix 4.3 & 5.1x, HP-UX 11.x, Compaq True 64, SGI Irix, Free BSD, Unix Systems, MAC Supported


GENERAL

Efficiency - AC to AC At 100% - 89%

Noise Level - ? 60 dBA

Electro Magnetic Compatibility - EN 61000-4-2 (ESD), 4-3 (RS), 4-4 (EFT), 4-5 (surge), IEC 62040-2 (EMI)

Operation Temperature & Humidity - 0 °C ~ 40 °C, maximum 20~90% (Non Condensed)

Storage Temperature - -20 °C ~ +70 °C

Protection Class - IP20

Cooling Type - Forced cooling Fan with Adjusted Speed

Operation Altitude - < 1000 meters (from the sea level)

Dimensions (mm), W x H x D - 260 x 717 x 570

Weight, without / with Battery (kg) - 38,5 / 104


Software:

Winpower Free of Charge, Network Supported Monitoring & Control Software, Software Supports Windows 98/ME/NT/2000/XP/2003, Linux, Sun Solaris 7/8/9, IBM Aix 4.3 & 5.1x, HP-UX 11.x, Compaq True 64, SGI Irix, Free BSD, Unix Systems, MAC Supported

*Гаранция на устройството - 2 г.
