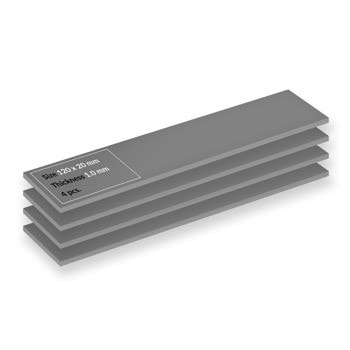

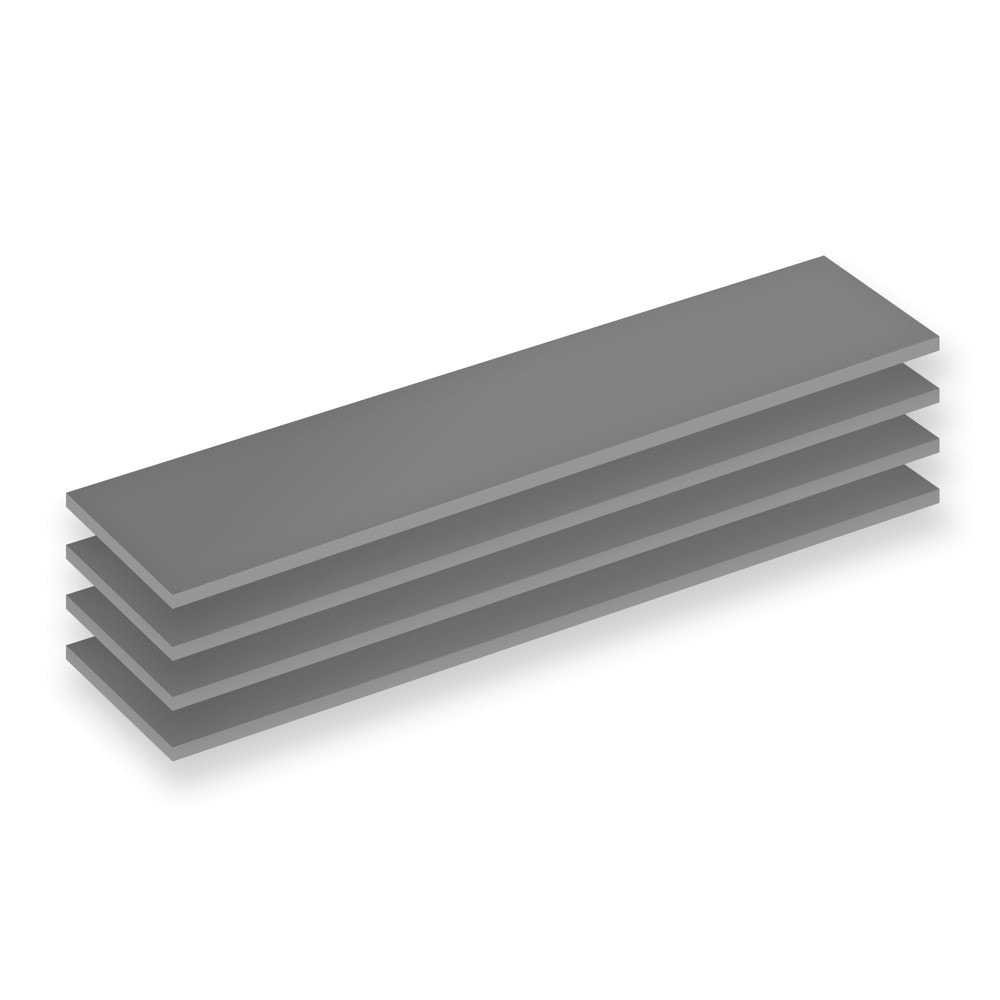

Термопад Arctic TP-4, размер 120mm x 20mm, дебелина 1mm, 4бр.

High Performance — Extremely Soft
The silicone-based TP-4 combines high thermal conductivity with extremely low hardness and reliably compensates for manufacturing tolerances between chips.

Safe Application
Electrically insulating, non-adhesive, and easy to handle — for safe and reliable heat transfer.

Minimizing Thermal Resistance
The thinner the pad, the lower the thermal resistance. Depending on mounting pressure, the TP-4 can be compressed to up to 60% of its original thickness.

Bridging Uneven Surfaces
Adapts optimally to varying chip heights, air gaps, and uneven surfaces to ensure reliable contact.

Stackable Without Performance Loss
Thanks to its low hardness and low interface resistance, multiple pads can be combined without affecting thermal transfer performance.


Specifications

Operating Ambient Temperature
-40-200 °C

Dimensions
120 (L) x 20 (W) x 1 (H) mm

Hardness
50 Shore OO

Specific Gravity
3.4 g/cm³

Breakdown Voltage
8620 V/mil

Dielectric Constant
7.2 @1 MHz

Volume Resistance
1.52 x 10^13 Ω-cm

Flammability Rating
UL 94 V-0
