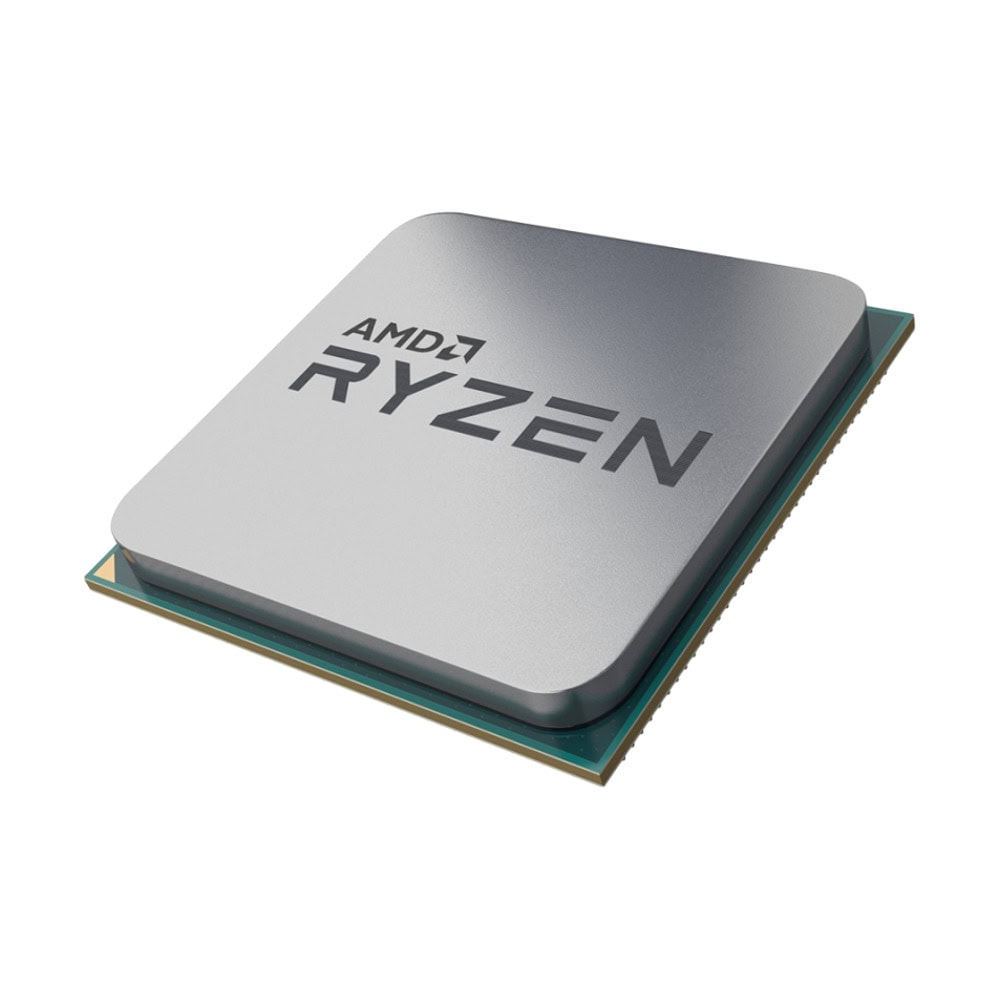

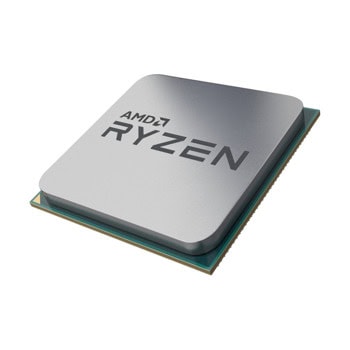

Процесор AMD Ryzen 5 5600XT, шестядрен, (3.7/4.7GHz, 35MB Cache, AM4), Tray, без охлаждане

AMD Ryzen 5 5600XT

100-000001585

General Specifications

Name

AMD Ryzen 5 5600XT

Family

Ryzen

Series

Ryzen 5000 Series

Form Factor

Desktops , Boxed Processor

Market Segment

Mainstream Desktop

Consumer Use

Yes

Regional Availability

Global , China , NA , EMEA , APJ , LATAM

Former Codename

Vermeer

Architecture

Zen 3

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 4.7 GHz

Base Clock

3.7 GHz

L1 Cache

384 KB

L2 Cache

3 MB

L3 Cache

32 MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 7nm FinFET

Processor Technology for I/O Die

12nm (Globalfoundries)

CPU Compute Die (CCD) Size

74mm²

I/O Die (IOD) Size

125mm²

Package Die Count

2

Unlocked for Overclocking

Yes

CPU Socket

AM4

Supporting Chipsets

X570 , X470 , X370 , B550 , B450 , B350 , A520

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

AMD Wraith Stealth

Max. Operating Temperature (Tjmax)

95°C

Launch Date

10/31/2024

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 3.2 Gen 1 (5Gbps) Ports

0

Native USB 2.0 (480Mbps) Ports

0

Native SATA Ports

2

PCI Express® Version

PCIe® 4.0

Native PCIe® Lanes (Total/Usable)

24 , 20

Additional Usable PCIe Lanes from Motherboard

X570

16x Gen 4

X470

2x Gen 3, 8x Gen 2

NVMe Support

Boot , RAID0 , RAID1 , RAID10

System Memory Type

DDR4

Memory Channels

2

Max. Memory

128 GB

System Memory Subtype

UDIMM

System Memory Specification

Up to 3200 MT/s

Max Memory Speed

2x1R

DDR4-3200

2x2R

DDR4-3200

4x1R

DDR4-2933

4x2R

DDR4-2667

ECC Support

Yes (Requires mobo support)

Graphics capabilities

Graphics Model

Discrete Graphics Card Required

Key Features

Supported Technologies

AMD StoreMI Technology , AMD Ryzen Master Utility , AMD Ryzen VR-Ready Premium

*Tray версия: Процесорът се продава без кутия,

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
