Захранване A-Data XPG Pylon 750B, 750W, Active PFC, 80 Plus Bronze, 120mm вентилатор

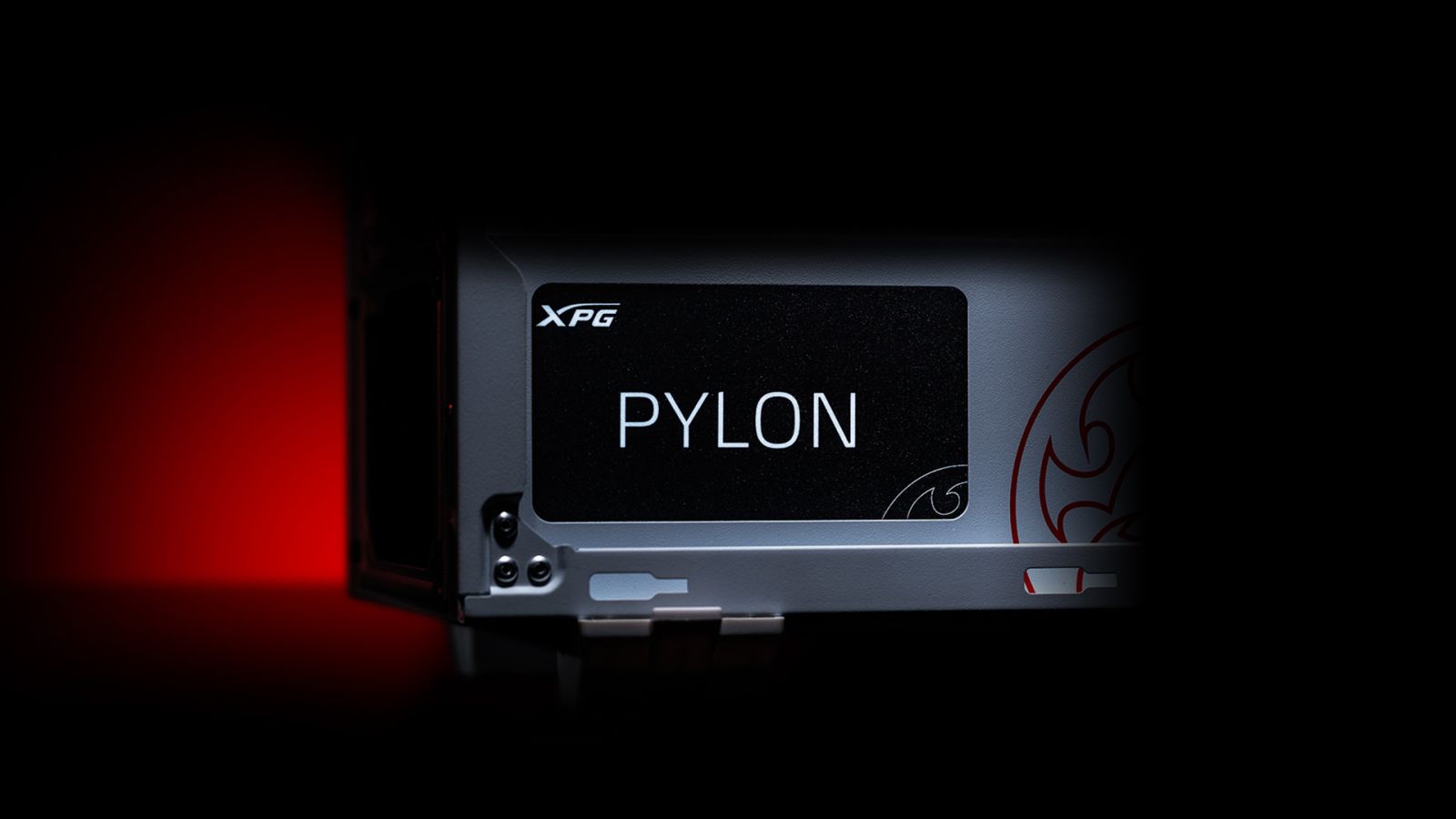

A-Data XPG Pylon 750B

PYLON
RAW ENERGY

XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.

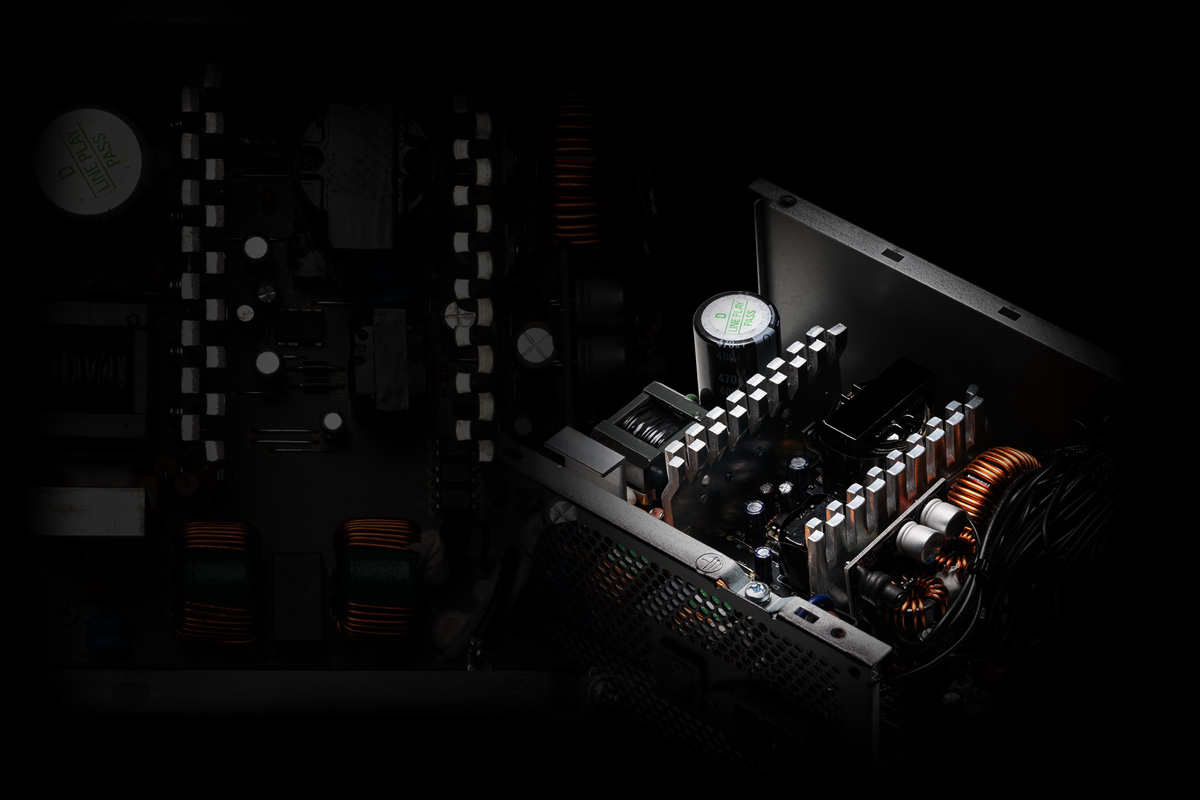

DC-to-DC Circuit in BRONZE Grade

XPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.

(*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components’ life expectancy.

Specifications:

Dimensions (L x W x H)
140 x 150 x 86mm
80 PLUS RATING
BRONZE
ATX Version
Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)
Protections
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification
CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC
PFC
0.99
Input Voltage
100-240V
Input Current
750W：10A/5A 、650W：10A/5A 、550W：8A/4A 、450W：7A/3.5A
Input Frequency
50Hz - 60Hz
Operating Temperature
50°C
Fan Size
120mm
Fan Bearing
FDB (Fluid Dynamic Bearing)*
Fan Speed
2,000 RPM
MTBF
100K Hours at 25℃
ATX 24 Pin Connector
1
EPS 8 Pin Connector
750w : 1 / 650w : 1 / 550w : 0 / 450w : 0
EPS 8 (4+4) Pin Connector
750W : 1 / 650W : 1 / 550W : 1 / 450W：1
PCI-E 6+2 Pin Connector
750W : 4 / 650W : 4 / 550W : 2 / 450W：2
SATA Connector
750W : 8 / 650W : 8 / 550W : 5 / 450W：5
Peripheral 4 Pin Connector
750W : 3 / 650W : 3 / 550W : 2 / 450W：2
Floppy 4 Pin Connector
750W : 1 / 650W : 1 / 550W : 1 / 450W : 1
Weight
750W：
Product：2.12kg (4.7lb) ±5%
