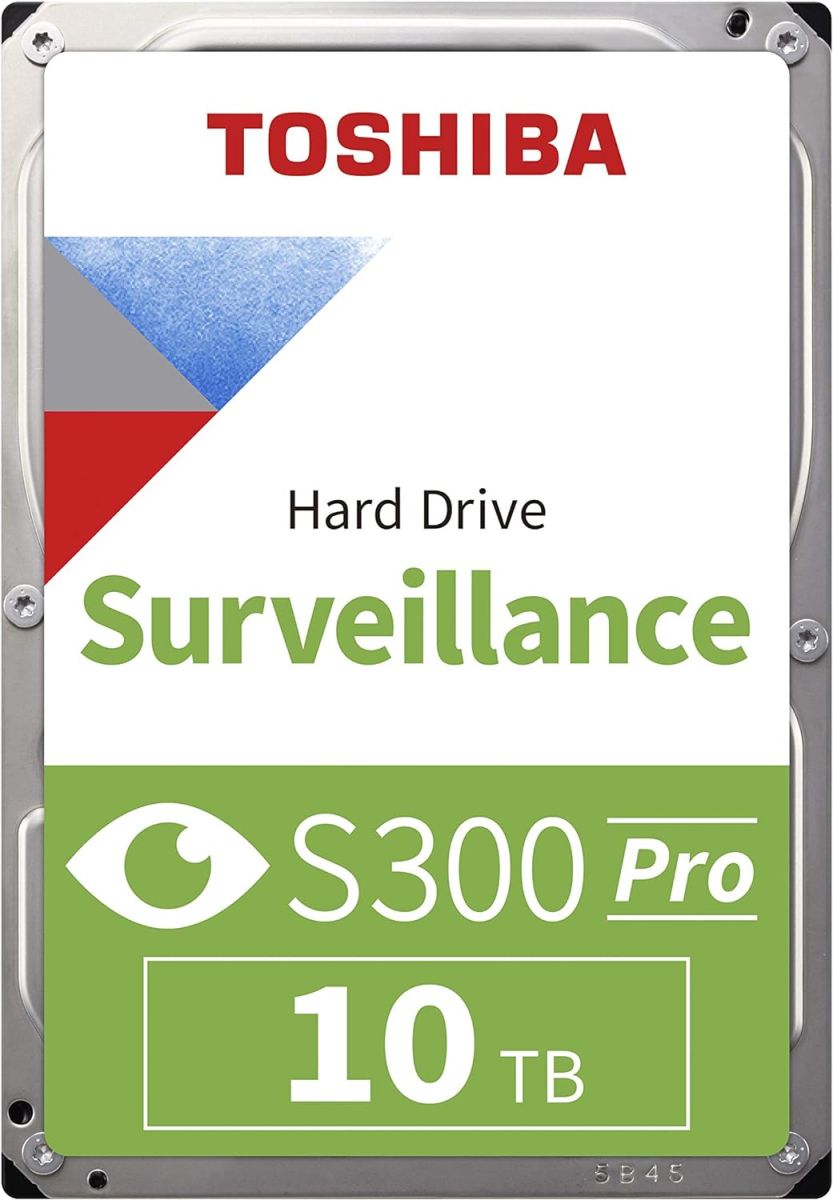

Твърд диск 10TB Toshiba S300, SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm), Bulk

Basic Specifications:

Form factor- 3.5-inch- 3.5-inch

Interface- 6.0 Gbit/s

Number of cameras supported- 64

Max. transfer rate- 248 MB/s Typ

Drive bays supported- 8+

Rotational Vibration (RV) Sensors- Yes

Advanced Format (AF)- Yes

RoHS compatible- Yes

Halogen Free- Yes

Shock Sensor- Yes


Performance:

Rotational speed- 7200 rpm

Buffer size- 256 MB

Average latency- 4,17 ms

Native Command Queing (NCQ)- Supported


Reliability:

Workloads- 180 TB/year

MTTF- 1.000.000 hours

Unrecoverable error rate- 1 per 10E14 bits read

24/7 operation- Yes

Load / Unload Cycle- 600.000


Power Management:

Supply voltage- 5V DC +6/-5%; 12V DC ±10%

Consumption – Read/Write- 9.48 W typ

Consumption – Low Power Idle- 7.15 W typ


Environmental:

Temperature (operating / non-operating)- 0 - 70° C / -40 - 70° C

Vibration (operating)-
0.75 G (5 to 300 Hz)
0.25 G (300 to 500 Hz)

Vibration (non-operating)- 3.0 G (5 to 500Hz)

Shock (operating)- 70 G / 2 ms duration

Shock (non-operating)- 250 G / 2 ms duration

Acoustics (idle mode)- 34 dB typ


Physical:

Dimensions- 147 (L) x 101.85 (W) x 26.1 (H) mm

Weight (approx.)- 770 g max
