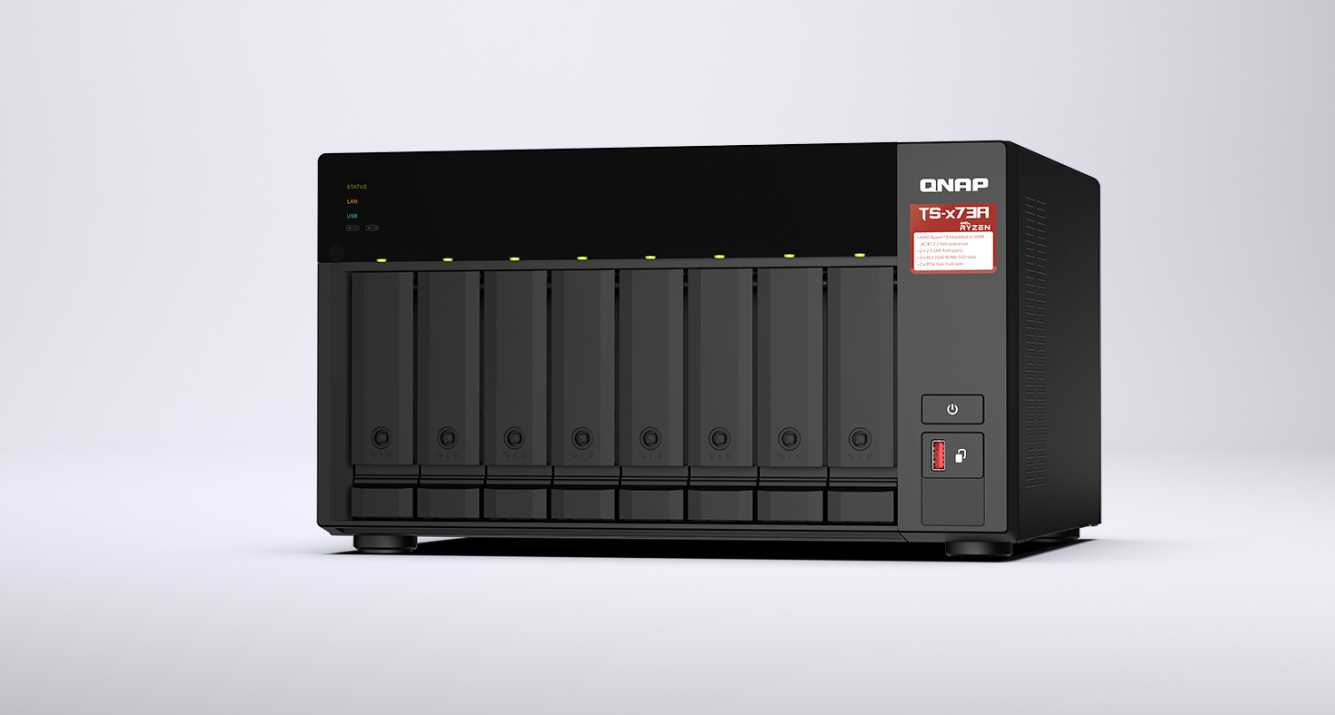

Qnap TS-873A-8G
CPU
AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture
64-bit x86
Graphic Processors
Optional via a PCIe adapter
Floating Point Unit:
Yes
Encryption Engine:
Yes (AES-NI)
Hardware-accelerated Transcoding
Optional via a PCIe adapter
System Memory
8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory
64 GB (2 x 32 GB)
Memory Slot
2 x SODIMM DDR4
Support ECC memory
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory
5GB (Dual boot OS protection)
Drive Bay
8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable: Yes
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 Slot
2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support:
Yes
GPU pass-through:
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)
Optional via a PCIe adapter
10 Gigabit Ethernet Port
Optional via a PCIe adapter
Wake on LAN (WOL):
Yes
Jumbo Frame:
Yes
PCIe Slot
2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port
3 x Type-A USB 3.2 Gen 2 10Gbps
1 x Type-C USB 3.2 Gen 1 5Gbps
HDMI Output
Optional via a PCIe adapter
Form Factor
Tower
LED Indicators Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
Buttons
Power, Reset, USB Auto Copy
Dimensions (HxWxD)
188.2 × 329.3 × 280.8 mm
Weight (Net)
6.76 kg
Weight (Gross) 8.41 kg
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit: 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 25.668 W
Power Consumption: Operating Mode, Typical 54.067 W
Tested with drives fully populated.
Fan: System fan: 2 x 120mm
CPU fan: 1 x 60mm
System Warning: Buzzer
Kensington Security Slot: Yes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 2000
