Мрежови диск (NAS) Asustor Lockerstor AS6702T, четири ядрен Intel Celeron N5105 2.0/2.9 GHz, без твърд диск, 2x SATA3, 4GB DDR4, 2x 100/1000/2500 LAN, 2x USB 3.2 Gen 2x1

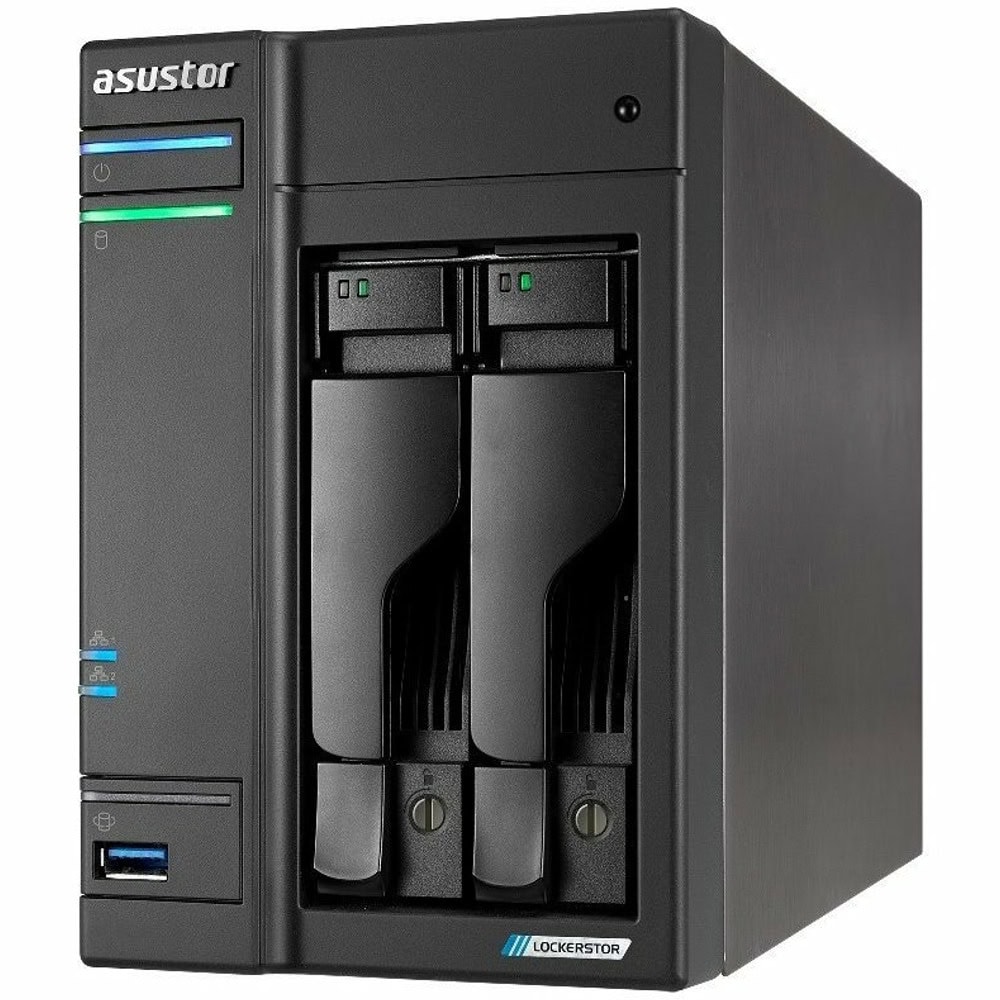

Asustor Lockerstor AS6702T

Asustor Lockerstor AS6702T, 2 Bay NAS, Intel Jasper Lake 4C 2.0 GHz, 4GB DDR4 SODIMM, M.2 NVMe x4 slots (Diskless), USB 3.2 Gen 2x2, Dual 2.5GbE Ports, WOW (Wake on WAN), AES-NI hardware encryption, MyArchive (support btrfs and snapshot), SSD Caching

CPU
CPU Model: Intel Celeron N5105
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)


Memory
Memory: 4GB SO-DIMM DDR4
Memory Module Pre-installed: 4GB (1x 4GB)
Total Memory Slots: 2
Memory Expandable up to: 16GB (2x 8GB)
Support mixed capacity
Flash Memory: 8GB eMMC

Storage
Drive Bays: 2
M.2 Drive Slots: 4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit: 10

External Ports
Expansion: 2x USB 3.2 Gen 2x1
Network: 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
HDMI Output: 1x HDMI 2.0b

Others
System Fan: 1x 70mm
Infrared Receiver
Power Supply Unit / Adapter: 65W x1
Input Power Voltage: 100V to 240V AC
Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty: 3 Years

Operation
Power Consumption:
21 W (Operation);
13.5 W (Disk Hibernation);
0.79 W (Sleep Mode)
Noise Level: 17.7dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity: 5% to 95% RH

Size and Weight
Size: 163.5 (H) x 108 (W) x 230 (D) mm
Weight: 2 kg / 4.4 lb

General Specifications
Supported OS
Windows XP, Vista, 7, 8, 10, 11, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
macOS
UNIX, Linux, and BSD
Supported Languages
Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย
Supported Browsers
Firefox
Chrome
Safari
Microsoft Edge

Network
Network Protocols:l CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

Connection and transmission
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network
USB Wi-Fi dongle not included.
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
Supports Wake-on-WAN (WOW)

File Management & Sharing
File System
Internal Disk: EXT4 ,Btrfs
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

File Explorer
Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback

Network Recycle Bin
Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
File size
File extension
Deletion Settings
File size
File date

Storage management
RAID
Support Multiple Volumes with Spare Disks
Volume Type: Single, JBOD, RAID 0, RAID 1
Support for Online RAID Level Migration
M.2 Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

MyArchive
Hot swappable design enables easy transfer or exchange of high amounts of data
Works on any empty bay on an ASUSTOR NAS
File system support: EXT4, NTFS, HFS+, Btrfs and exFAT
Supports AES 256-bit encryption on EXT4 and Btrfs
Supports Btrfs snapshots
Supports decryption with a USB key

iSCSI/IP-SAN
Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations

Disk Management
Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans

Access & Security
Access Control
Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory
Supports Windows Active Directory / LDAP
ACL
Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows’ 13 types of advanced permission settings
Can view Windows ACL permission settings from within ADM
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions
SSD Cache
SSD-like performance with traditional hard drives
Supports read-only access and read-write cache mode
2.5" SSD supported Models: AS31/32/50/51/52/53/61/62/63/64/65/66/67/70/71 series
M.2 SSD supported Models: AS65XXT/66/67/71 series
System Administration
Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support
Security
AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/67/70/71 Series
Network Defender
Auto black list
Trusted list
Black/White list
Supports IP/IP range/geolocation
