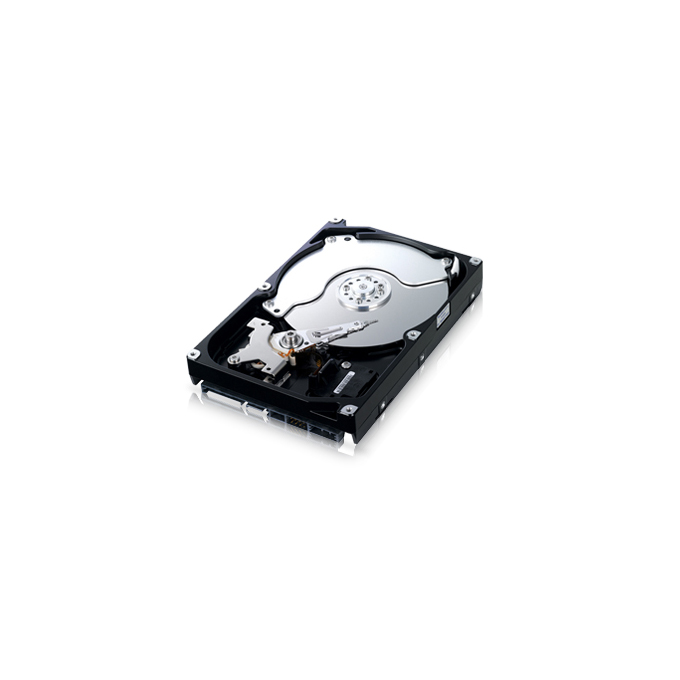

Твърд диск 500GB Samsung, SATA2, 5400rpm, 16MB

Samsung EcoGreen F2

Drive Configurations

Capacity 500 GB
Interface Serial ATA 3.0Gbps
Buffer DRAM Size 16 MB
Byte per Sector 512 bytes

Performance Specifications

Average Seek time(typical) 8.9 ms
Average Latency 5.52 ms
Data Transfer Rate / Media to/from Buffer(Max.) 166 MB/sec
Data Transfer Rate / Buffer to/from Host(Max.) 300 MB/sec
Drive Ready Time(typical) 10 sec

Reliability Specifications

Non-recoverable Read Error 1 sector in 10^15 bits
Start/Stop Cycles 50,000

Acoustics
Idle 2.20 Bel
Performance Seek 2.70 Bel

Environmental Specifications

Temperature / Operating 0 ~ 60 °C
Temperature / Non-operating -40 ~ 70 °C
Humidity(non-condensing) / Operating 5 ~ 90 %
Humidity(non-condensing) / Non-operating 5 ~ 95 %
Liner Shock(1/2 sine pulse) / Operating 70 G
Liner Shock(1/2 sine pulse) / Non-operating 350 G
Altitude(relative to sea level) / Operating -300 to 3,000 m
Altitude(relative to sea level) / Non-operating -300 to 12,000 m

Power Requirements

Voltage +5V±5%, +12V±10%
Spin-up Current (Max.) 2.0A
Seek (typical) 4.8W
Read/Write (typical) 5.1W
Idle (typical) 3.9W
Standby (typical) 1W
Sleep (typical) 1W

Physical Dimension

Height (Max.) 26.1 mm
Width 101.5 mm
Length 147.0 mm
Weight (avg.) 470 g

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
