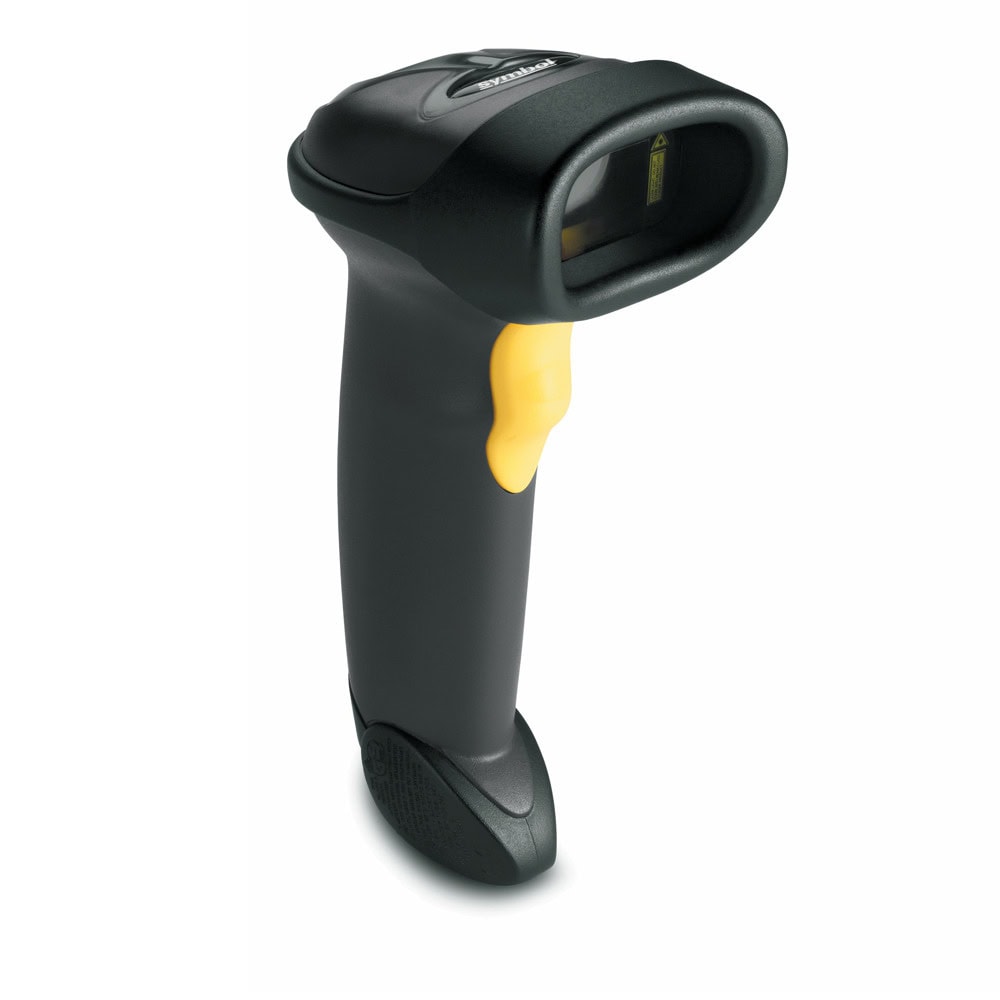

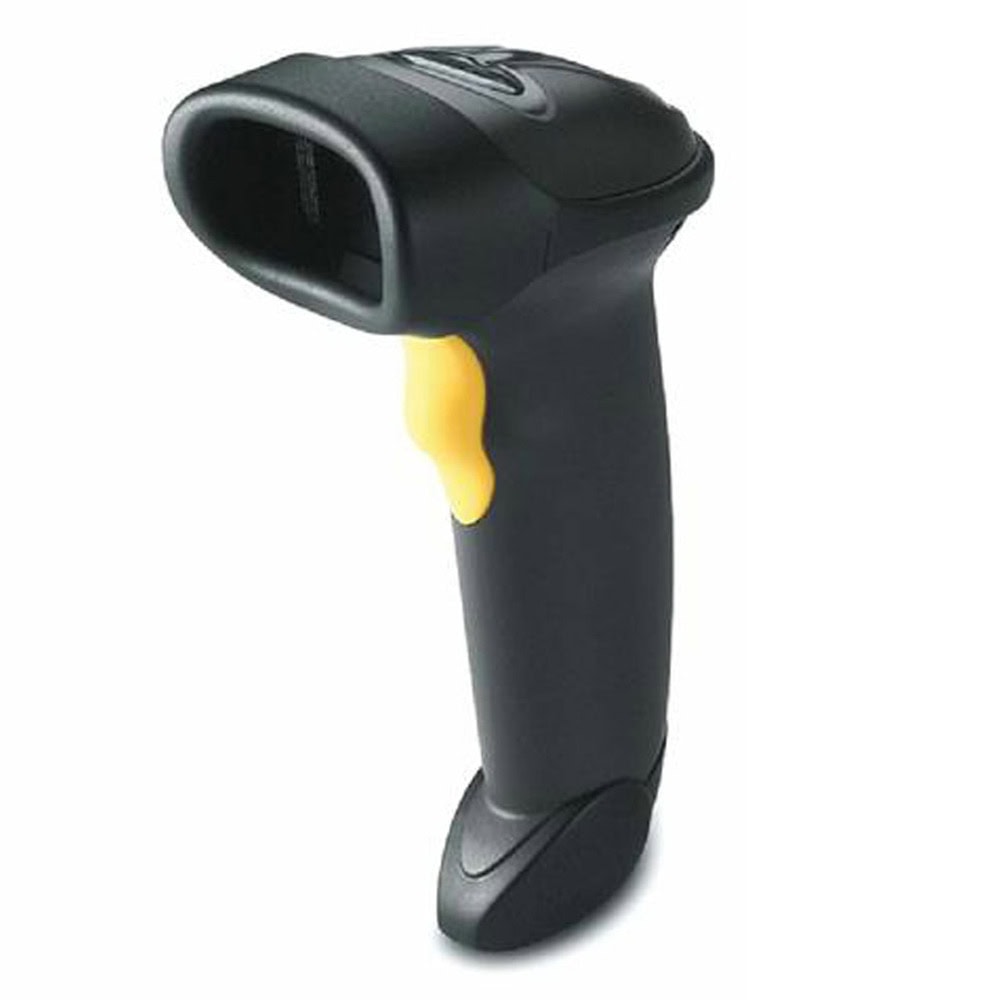

LS2208 1D Scanner
Our Best Selling 1D Handheld Scanner—Fast and Built to Last
This moderately-priced, high-performance handheld 1D barcode scanner is best suited to applications in retail and healthcare. The LS2208 is designed for continuous usage all day, which significantly reduces downtime and repair costs. It provides accurate, first-time scanning. And since it is always ready for the next scan, the LS2208 can shorten check-out lines, improve customer service and increase productivity.
Class-leading Scanning Range
Workers can capture the everyday 13 mil UPC barcodes on items over 25 in (63.5 cm) away, and the high density barcodes common on small retail items – all in one device.
Durable Construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.
All Day Comfort Workers Can Count On
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.
| Category | Specification | Details |
|---|---|---|
| Physical Characteristics | Dimensions | 6.0 in. H × 2.5 in. W × 3.3 in. D (15.2 cm × 6.4 cm × 8.5 cm) |
| Weight | 5.3 oz. / 150.0 g | |
| Input Voltage Range | 4.5 to 5.5 VDC (host powered or external power supply) | |
| Operating Current (5.0 V) | 175 mA (typical) | |
| Standby Current (5.0 V) | 90 mA (typical) | |
| Color | Cash Register White, Twilight Black | |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 | |
| Keyboard Support | Supports over 90 international keyboards | |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) | |
| Performance Characteristics | Light Source | 650 nm Laser Diode Class 2 |
| Scan Pattern | Single line | |
| Scan Speed | 100 scans per second | |
| Scan Angle | 35° | |
| Minimum Print Contrast | 20% minimum reflective difference | |
| Skew Tolerance | ± 10° | |
| Pitch Tolerance | ± 65° | |
| Roll Tolerance | ± 60° | |
| User Environment | Operating Temperature | 32° to 122° F (0° to 50° C) |
| Storage Temperature | -40° to 158° F (-40° to 70° C) | |
| Humidity | 5% – 95% RH, non-condensing | |
| Drop Specification | Withstands multiple drops at 5.0 ft. (1.5 m) to concrete | |
| Tumble Specification | Withstands 500 tumbles in 1.64 ft. (0.5 m) tumbler | |
| Environmental Sealing | IP30 | |
| Electrostatic Discharge (ESD) | EN61000-4-2, ±15 KV Air, ±8 KV Direct, ±8 KV Indirect | |
| Ambient Light Immunity | 0–8,000 Foot Candles (0–86,080 Lux); tolerant to fluorescent, incandescent, mercury vapor, sodium vapor, LED; up to 450 Ft. Candles (4,844 Lux) artificial, 8,000 Ft. Candles (86,111 Lux) sunlight | |
| Symbol Decode Capability | Scanning Technology | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma); see Product Reference Guide for full list |
| Minimum Element Resolution | Code 39: 3.0 mil | |
| Accessories | Included | Gooseneck Intellistand |
| Regulatory | Electrical Safety | EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC2011; IEC 60950-1:2005 + A1:2009; UL 60950-1 (2nd edition); CAN/CSA-C22.2 No. 60950-1-07 |
| EMI/RFI | FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC | |
| Laser Safety | CDRH Class II; IEC Class 2 | |
| Environmental | Compliant with RoHS Directive 2011/65/EU; EN 50581:2012 |
