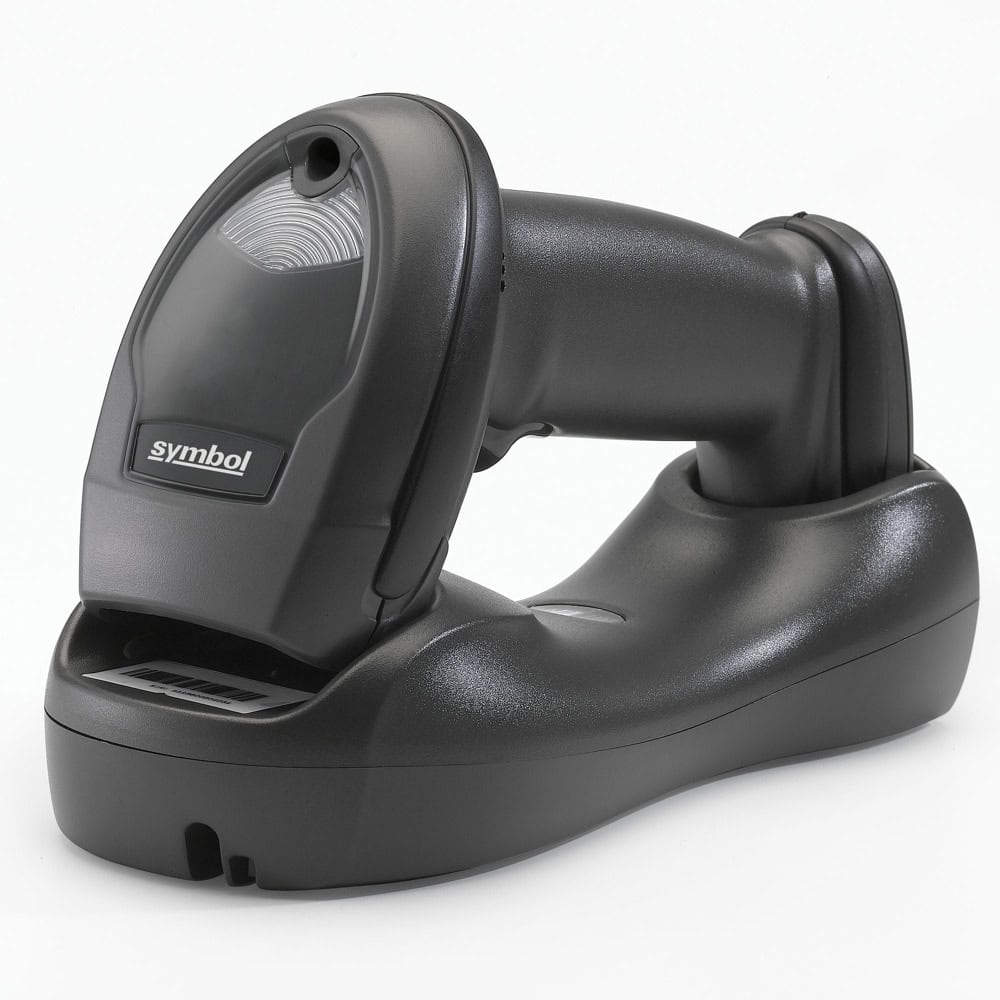

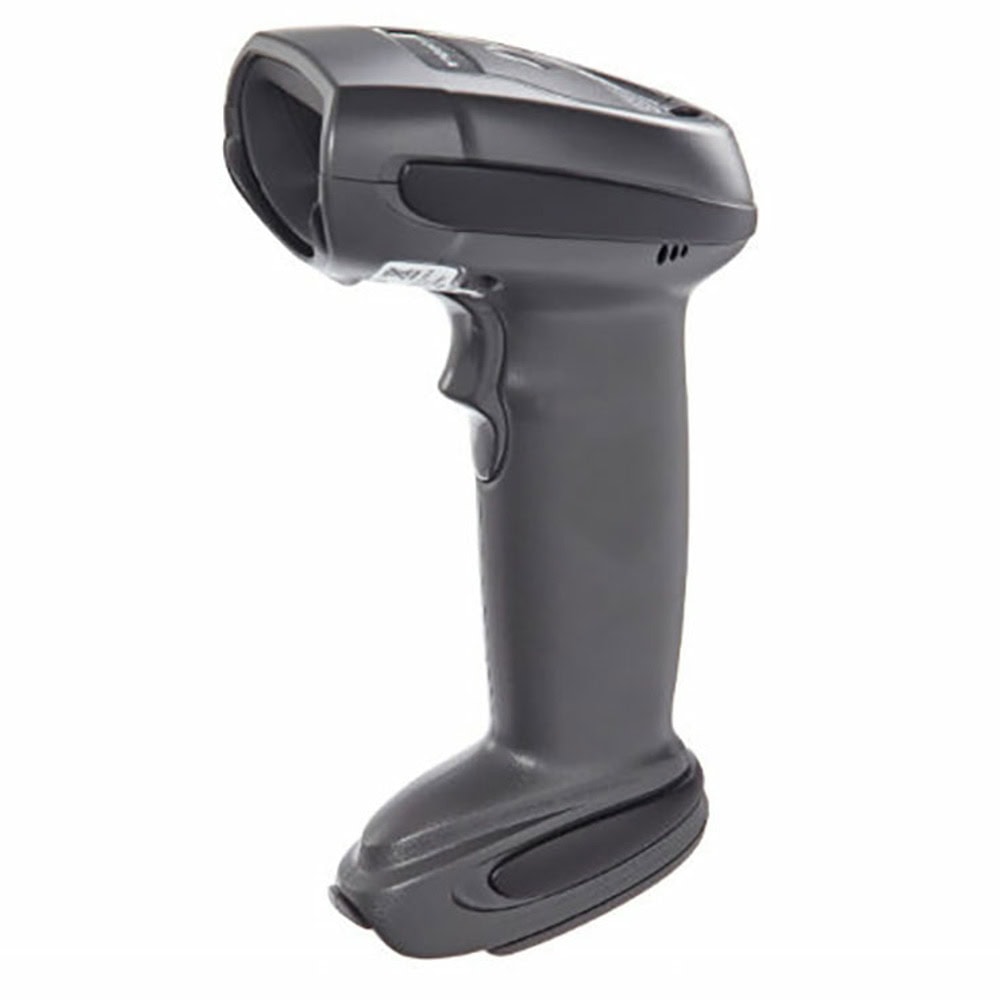

LI4278 1D Scanner
Excellent 1D Scanning Performance With Cordless Freedom
The LI4278 takes 1D barcode scanning to the next level, allowing workers to scan faster and farther as they can capture virtually any 1D barcode. With Bluetooth compatibility, it offers cordless freedom, allowing cashiers to easily scan items inside and outside of the cash wrap. In addition, Bluetooth v2.1 with EDR provides better encryption for improved security and better overall wireless performance.
Key Features
- Scan Type: 1D
- Scan Range: Standard Range
- Corded/Cordless: Cordless
- Battery Capacity: Up to 72 hours
Free Your Workers With Bluetooth
Bluetooth™ frees workers from cords, allowing cashiers to easily scan items inside and outside of the cash wrap. In addition, Bluetooth v2.1 with EDR provides better security, wireless performance and energy management to preserve power for a full shift.
Built For All-Day Everyday Use
A single circuit board improves reliability by eliminating interconnections. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. And both cradles can handle over a quarter million insertions.
Upgrade Path Prepares For The Future
The LI4278 provides a positive return on investment by utilizing the same existing cradles and accessories as its cousins, the LS4278 and DS6878. Current investments are preserved, yet you can easily migrate to the latest in 1D scanning technology.
| Category | Specification | Details |
|---|---|---|
| Performance Characteristics | Skew Tolerance | ±65° |
| Pitch Tolerance | ±65° | |
| Roll Tolerance | ±45° | |
| Scan Pattern | Single bright aiming line | |
| Scan Angle | Horizontal 35° | |
| Scan Speed | 547 scans per second | |
| Motion Tolerance | 25 in./63.5 cm per second | |
| Light Source | LED Class 1 device 617nm (amber) | |
| Min. Print Contrast | 15% MRD | |
| Scans Per Charge | Up to 57,000 | |
| Hours of Operation | Per full charge: 72 hours | |
| Utilities | 123Scan, Remote Scanner Management (RSM), Scanner Management Services (SMA), Zebra Scanner SDK | |
| User Environment | Ambient Light Immunity | Max 108,000 lux |
| Operating Temperature | 32° F to 122° F / 0° C to 50° C | |
| Storage Temperature | -40° F to 158° F / -40° C to 70° C | |
| Humidity | 5% to 85% RH, non-condensing | |
| Drop Specification | Over 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./1.8 m drops to concrete | |
| Environmental Sealing | IP53; Gasket sealed housing withstands dust and can be sprayed clean | |
| Bar Code Symbologies | UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN, EAN Code 128 including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5 (ITF), Discrete 2 of 5 (DTF), Codabar (NW-7), Chinese 2 of 5, IATA Inverse 1-D (except all GS1 DataBars), GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded | |
| Wireless Connectivity | Radio | Bluetooth v2.1 Class 2 |
| Data Rate | 3.0 Mbit/s (2.1 Mbit/s) Bluetooth v2.1 | |
| Radio Range* | 330 ft./100 m (line of sight) *Using presentation cradle configuration | |
| Physical Characteristics | Dimensions | 3.84 in. H x 2.75 in. W x 7.34 in. L / 9.8 cm H x 7 cm W x 18.6 cm L |
| Weight | 7.9 oz./224 grams | |
| Cradle Interface | RS232, RS485 (IBM), USB, Keyboard Wedge | |
| Color | Black; White | |
| Battery | Rechargeable replaceable battery with ‘green sustainability’ | |
| Decode Ranges (Typical Working Ranges) | 3 mil | Minimum resolution |
| 4 mil | 4–10 in./10.2–25.4 cm | |
| 5 mil | 3–13 in./7.6–33 cm | |
| 7.5 mil | 1.5–19 in./3.8–48.3 cm | |
| 13 mil (100% UPC-A) | 1–31 in./2.5–78.7 cm | |
| 20 mil | 1–42 in./2.5–106.7 cm | |
| 26 mil (200% UPC-A) | 3–55 in./7.6–140 cm | |
| 100 mil (paper) | >20 ft./6 m | |
| Note | Ranges calculated on Code 39 unless otherwise noted | |
| Regulatory | Technical Requirements | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2, Environmental RoHS Directive 2002/95/EEC, Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1, LED Class 1 |
| Environmental | RoHS Compliant |
