Zebra LI2208-SR7U2100SGW



LI2208 1D Scanner



Captures Virtually All 1D Barcodes on Any Surface

The best-in-class LI2208 linear imager delivers unparalleled performance, every time. From the retail POS to shipping/receiving and hotel check-in, the LI2208 allows your workers to better meet the needs of your business.



A Champ On Traditional And Mobile 1D Barcodes

Begin reading mobile and electronic barcodes right out of the box, without sacrificing performance. With a patented optical design achieves industry leading working range, and since bar codes can be captured at extreme angles so workers spend less time maneuvering the scanner for increased productivity.





Leverages The Wildly Successful LS2208

With the LI2208, you will enjoy the same excellent reliability and performance, unparalleled ergonomic comfort and durability as the LS2208, Zebra's most successful scanner of all time - while also benefiting from best-in-class linear technology.





Superior Out-of-the-Box Experience

Setting up a new scanner can be time consuming and frustrating. The LI2208's smart auto-host detect cables make deployment easier by automatically detecting the attached interface, eliminating the need to scan multiple parameter barcodes





CategorySpecification
Physical Characteristics
Dimensions6.30 in. H × 2.64 in. W × 3.90 in. L (16 cm H × 6.7 cm W × 9.9 cm L)
Weight4.95 oz / 140 g
Voltage & Current5VDC ±10% <165 mA scanning <40 mA standby <2.5 mA USB suspend <4.0 mA low power mode (RS232 & Keyboard Wedge only)
Power SourceHost power or external power supply
Color OptionsTwilight Black; Nova White
Supported Host InterfacesUSB, RS232, Keyboard Wedge, IBM RS485
Keyboard SupportSupports over 90 international keyboards
User Environment
Ambient Light ImmunityMax 108,000 lux
Operating Temperature32° F to 122° F (0° C to 50° C)
Storage Temperature-40° F to 158° F (-40° C to 70° C)
Humidity5% to 95% RH, non-condensing
Drop SpecsOver 100 drops at 5 ft (1.5 m) at room temp; survives 6 ft (1.8 m) drops to concrete
Tumble Testing1,000 cycles (2,000 drops) in 0.5 m tumbler
Environmental SealingIP42
Bar Code SymbologiesUPC/EAN (UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, ISBN, UCC Coupon, ISSN), Code 128 (GS1-128, ISBT 128, ISBT Concatenation), Code 39 (Trioptic, Code 32, Full ASCII), Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, IATA, Inverse 1D (except GS1 DataBars), GS1 DataBar (14, Limited, Expanded)
Decode Ranges (Typical)
Minimum Resolution3 mil
4 mil4–10 in. (10.2–25.4 cm)
5 mil3–13 in. (7.6–33 cm)
7.5 mil1.5–19 in. (3.8–48.3 cm)
13 mil (100% UPC-A)1–31 in. (2.5–78.7 cm)
20 mil1–42 in. (2.5–106.7 cm)
26 mil (200% UPC-A)3–55 in. (7.6–140 cm)
100 mil reflective>20 ft (6 m)
Performance Characteristics
Skew Tolerance±45°
Pitch Tolerance±45°
Roll Tolerance±45°
Scan PatternSingle bright aiming line
Scan AngleHorizontal 35°
Scan Speed547 scans per second
Motion Tolerance25 in/s (63.5 cm/s)
Light SourceLED Class 1 device, 617 nm (amber)
Minimum Print Contrast15% MRD
Utilities & Management123Scan², Scanner Management Services (SMS), Zebra Scanner SDK

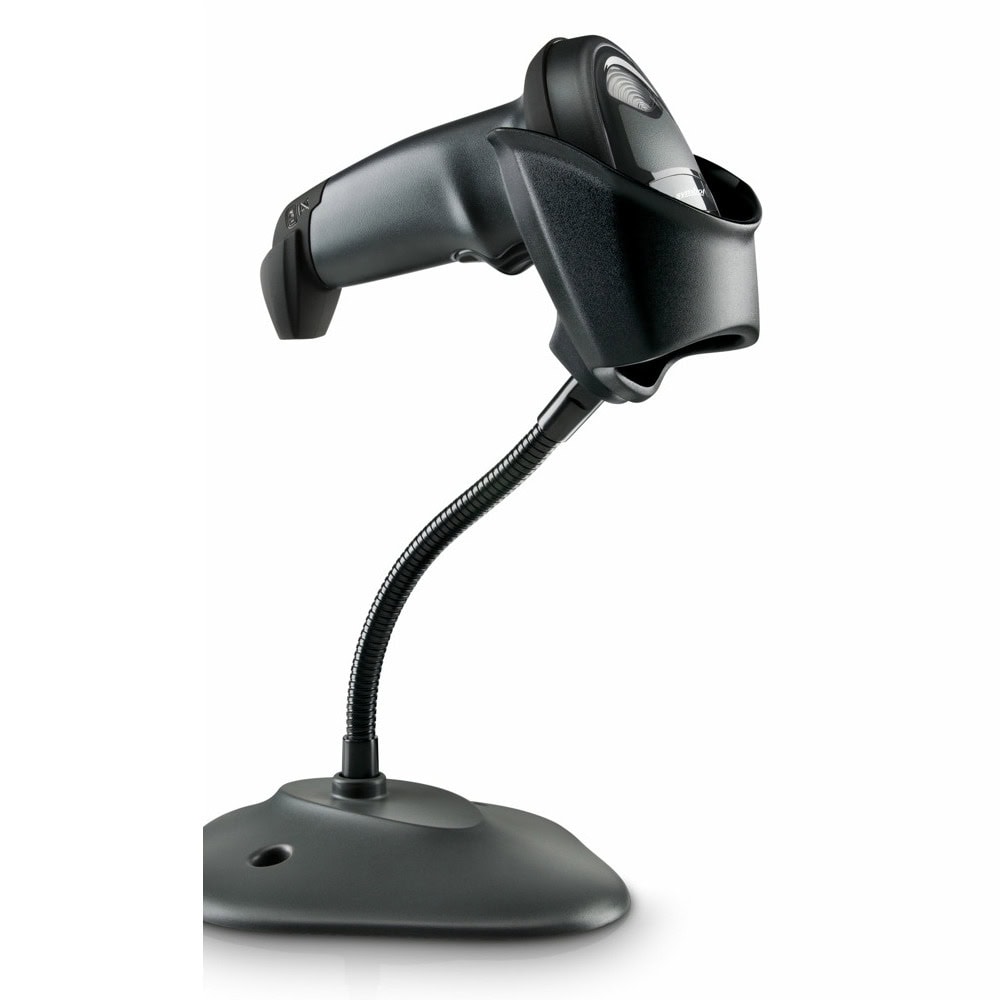

AccessoriesHands-free gooseneck Intellistand, auto-host detect cables
Regulatory
EMCFCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2
EnvironmentalRoHS Directive 2002/95/EEC, RoHS Compliant
Electrical SafetyC22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1
LED SafetyLED Class 1




    Виж още Баркод Скенери Zebra
    Виж всички Баркод Скенери в категорията
    Технически характеристики
    Тип:  LED
    Вид:  Ръчен
    Интерфейс:  USB
