| Basic | ||
|---|---|---|
| Product Type | Power Supply | |
| Efficiency | 93.4% | |
| Input Voltage | 230 V AC | |
| Input Voltage | 120 V AC | |
| Output Power | 1.60 kW | |
| Output Voltage | 12 V DC | |
| Output Voltage | 3.3 V DC | |
| Output Voltage | 5 V SB | |
| Output Voltage | -12 V DC | |
| Output Voltage | 5 V DC | |
| Features | Low Noise | |
| Features | On/Off Switch | |
| Form Factor | ATX | |
| Product Model | P14-PRO-1600W | |
| Brand Name | be quiet! | |
| Number of +12V Rails | 6 | |
| Product Family | Dark Power Pro 14 | |
| Modular | Yes | |
| Specification Compliance | EPS12V | |
| Specification Compliance | ATX 3.1 | |
| Specification Compliance | EPS 2.92 | |
| Energy Star | Yes | |
| Product Color | Black | |
| PCI Express Connector | Yes | |
| Color Family | Black | |
| Energy Efficiency Certification | 80 Plus Titanium | |
| Energy Efficiency Certification | ENERGY STAR 9.0 | |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) | |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Environmental Conditions | ||
| Maximum Operating Temperature | 40°C | |
| General Information | ||
| Product Type | Power Supply | |
| Manufacturer Part Number | BP023EU | |
| Manufacturer Website Address | http://www.listan.de | |
| Packaged Quantity | 2 | |
| Manufacturer | Listan GmbH & Co. | |
| Product Model | P14-PRO-1600W | |

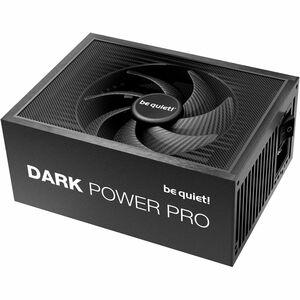

| Product Name | Dark Power Pro 14 P14-PRO-1600W Power Supply | |
| Product Line | Dark Power Pro 14 | |
| Brand Name | be quiet! | |
| Marketing Information | MONITORING AND FULL CONTROL | With the be quiet! IO Center software The Dark Power Pro 14 IO 1600W is the first be quiet! PSU with smart software control via the be quiet! IO Center. It lets you switch between Multi Rail and Single Rail modes and choose semi passive or active fan settings. The dashboard shows real-time data for efficiency, fan speed and power usage. A cost calculator estimates your energy expenses over time. With this blend of power and insight, it sets a new standard for intelligent PSU control. SWITCH IT | Switch effortlessly between active and semi-passive cooling The Dark Power Pro 14 IO 1600W gives full control over cooling and performance. Choose between a balanced active mode for constant, efficient airflow, or a smart semi-passive mode where the fan stops during light loads. When things heat up, the Silent Wings fan powers on seamlessly to deliver the cooling the system needs. READY FOR OVERCLOCKING | Maximum strength Dark Power Pro 14 IO 1600W is particularly suitable for overclocking. With the be quiet! IO Center software, it is possible to manually switch between multi-rail and single-rail mode. This gives full overclocking control, from the default six 12V-rail mode to the alternative massive single-rail operation. THE HIGHEST EFFICIENCY POSSIBLE | Titanium efficiency Dark Power Pro 14 IO 1600W is certified with 80 PLUS Titanium and Cybenetics Titanium for a stunning energy efficiency rating of up to 94.9%. This provides lots of benefits for a high-end system, including less power consumption and an overall cooler and quieter operation. PEAK TECHNOLOGY | Higher efficiency and lower ripple noise Experience with Dark Power Pro 14 IO 1600W the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation. HEAT SINK AND INTEGRATED SILENT WINGS | Simply fan-tastic A large heat sink connects to the parts of the power supply that need the most cooling and dissipates a large portion of the heat. Even though a Titanium efficiency power supply does not generate as much heat, active cooling is required to prevent overheating issues under high load. Nothing less than the very best fan of be quiet! cools Dark Power Pro 14 IO 1600W. Being integrated directly into the heat sink, this high-end fan is immune to vibrations. A 6-pole fan motor and fluid-dynamic bearing ultimately make for exceptionally long lifetime and minimal power consumption. 105°C CAPACITORS FROM JAPAN | Only the best Each component in Dark Power Pro 14 IO 1600W is carefully selected. That is why we have exclusively used high-quality Japanese capacitors for this PSU. They are rated to 105°C, ensure stability, reliability, and a long operating life. NEXT GEN | ATX 3.1 compatibility Dark Power Pro 14 IO 1600W is an ATX 3.1 PSU and comes with both native integration of two 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards and 4 PCIe 6+2-pin connectors for support of all current-gen GPUs. This makes the PSU extremely versatile and perfect for current and future high-end systems. | |
| Interfaces/Ports | ||
| Number of SATA Power Connectors | 16 | |
| PCI Express Connector | Yes | |
| Number of (4+4 pin) CPU Power Connectors | 1 | |
| Number of (6+2 pin) PCI Express Power Connectors | 6 | |
| PCI Express Version | 5.1 | |
| Miscellaneous | ||
| Country of Origin | China | |
| Energy Star | Yes | |
| Energy Efficiency Certification | 80 Plus Titanium | |
| Energy Efficiency Certification | ENERGY STAR 9.0 | |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | ||
| Weight (Approximate) | 2.63 kg | |
| Form Factor | ATX | |
| Height | 86 mm | |
| Width | 150 mm | |
| Depth | 200 mm | |
| Product Color | Black | |
| Color Family | Black | |
| Power Description | ||
| Input Voltage | 230 V AC | |
| Input Voltage | 120 V AC | |
| Output Power | 1.60 kW | |
| Output Voltage | 12 V DC | |
| Output Voltage | 3.3 V DC | |
| Output Voltage | -12 V DC | |
| Output Voltage | 5 V SB | |
| Output Voltage | 5 V DC | |
| Output Current | 55 A | |
| Output Current | 500 mA | |
| Output Current | 45 A | |
| Output Current | 40 A | |
| Output Current | 3.50 A | |
| Output Current | 25 A | |
| Input Voltage Range | 115 V AC - 240 V AC | |
| Input Frequency | 50 - 60 Hz | |
| Number of +12V Rails | 6 | |
| Output Voltage Detail | 5 V SB @ 3.5 A | |
| Output Voltage Detail | 5 V DC @ 25 A | |
| Output Voltage Detail | 3.3 V DC @ 25 A | |
| Output Voltage Detail | 12 V DC @ 55 A | |
| Output Voltage Detail | 12 V DC @ 45 A | |
| Output Voltage Detail | 12 V @ 40 A | |
| Output Voltage Detail | -12 V DC @ 0.5 A | |
| Technical Information | ||
| Efficiency | 93.4% | |
| Fan Diameter | 135 mm | |
| Features | On/Off Switch | |
| Features | Low Noise | |
| Protection Type | Short Circuit | |
| Protection Type | Over Temperature | |
| Protection Type | Over Voltage | |
| Protection Type | Surge & Inrush Protection | |
| Protection Type | Under Voltage | |
| Protection Type | Over Current | |
| Protection Type | Overpower | |
| Fan Bearing Type | Fluid Dynamic Bearing | |
| Cooling Type | Active / Semi-passive | |
| Number of Fans | 1 | |
| Power Factor Correction (PFC) | Active | |
| Modular | Yes | |
| Specification Compliance | EPS12V | |
| Specification Compliance | EPS 2.92 | |
| Specification Compliance | ATX 3.1 | |
-
