High-Efficiency DrMOS Power Module
Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.
Hellhound features a 5+1 phase power design, along with a dedicated 2+1 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.
Premium-Quality PCB
Enhanced Signal Stability for Uninterrupted Performance
Crafted with 6-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.
Features
- Honeywell PTM7950 High-Thermal Conductivity
- Dual BIOS (OC / Silent)
- Intelligent Fan Control
- Highly Efficient Ring Blade Fans

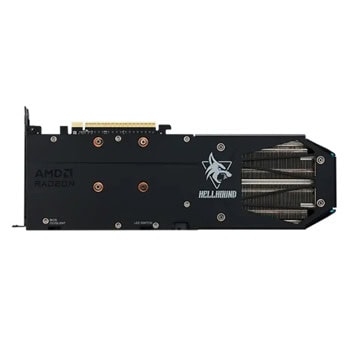

- Reinforced Metal Backplate
- Premium-Quality PCB Design
- High-Efficiency DrMOS Power Module
- TBP Monitoring (12V Source Detection)
- LED Lighting - Artic Blue
- Triple-Ring Fan design
- Supports PCIe 5.0 x16
| Specification | |
|---|---|
| Graphics Engine | AMD Radeon™ RX 9060 XT |
| Model Name | RX9060XT 8G-L/OC |
| Series | Hellhound |
| Stream Processors | 2048 Units |
| Video Memory | 8GB GDDR6 |
| Memory Speed | 20.0 Gbps |
| Memory Interface | 128-bit |
| Engine Clock (OC Mode) | Up to 2740 MHz (Game)¹ / Up to 3310 MHz (Boost)² |
| Engine Clock (Silent Mode) | Up to 2620 MHz (Game)¹ / Up to 3230 MHz (Boost)² |
| Bus Standard | PCIe 5.0 x16 |
| Display Connectors | 1 x HDMI 2.1b, 2 x DisplayPort 2.1a |
| DirectX® Support | 12 |
| OpenGL Support | 4.6 |
| AMD Eyefinity Technology | Supported |
| AMD Stream Technology | Supported |
| AMD Smart Access Memory | Supported |
| Maximum Resolution (DP) | 7680×4320 |
| Maximum Resolution (HDMI) | 7680×4320 |
| Board Dimensions | 310mm × 100mm × 40mm |
| Dimensions (with bracket) | 330mm × 120mm × 40mm |
| Slot Requirement | 2 Slots |
| Minimum System Power (W) | 550W |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти PowerColor
Виж всички Видео карти в категорията
Технически характеристики
| GPU производител: | AMD Radeon |
|---|---|
| Капацитет: | 8 GB |
| Тип памет на видеокарта: | GDDR6 |
| Битове (BUS памет): | 128 Bit |
| Интерфейс: | DP HDMI |
