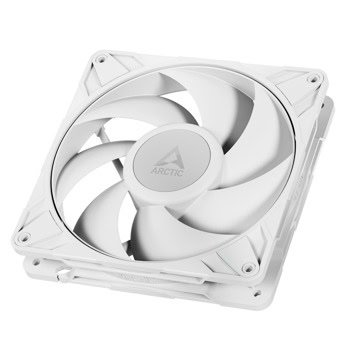

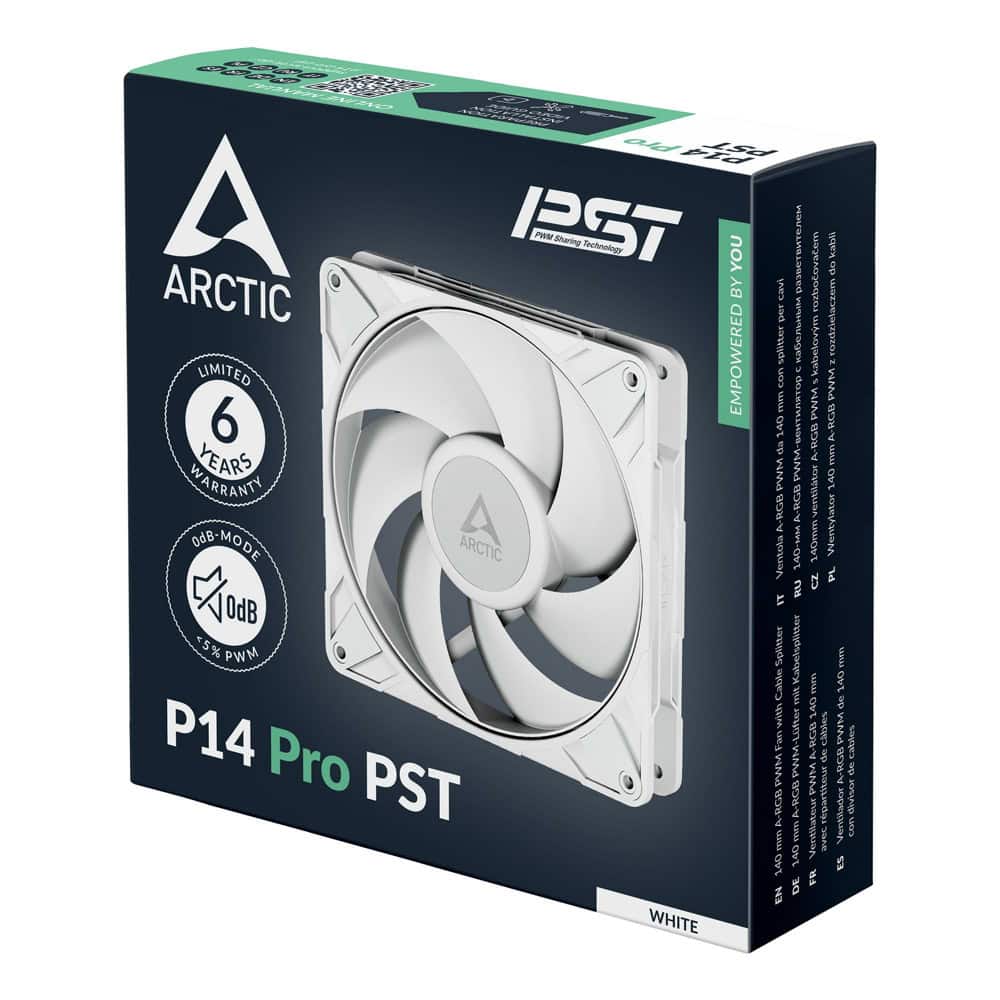

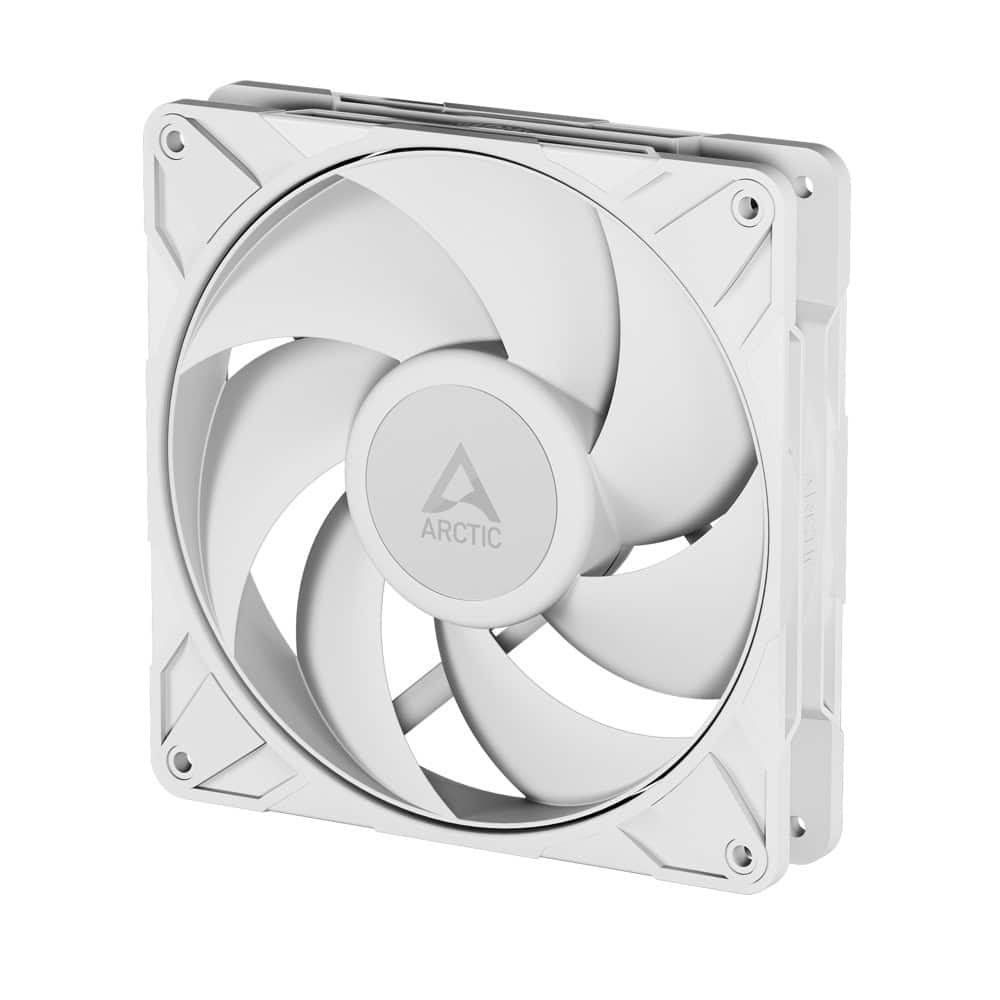

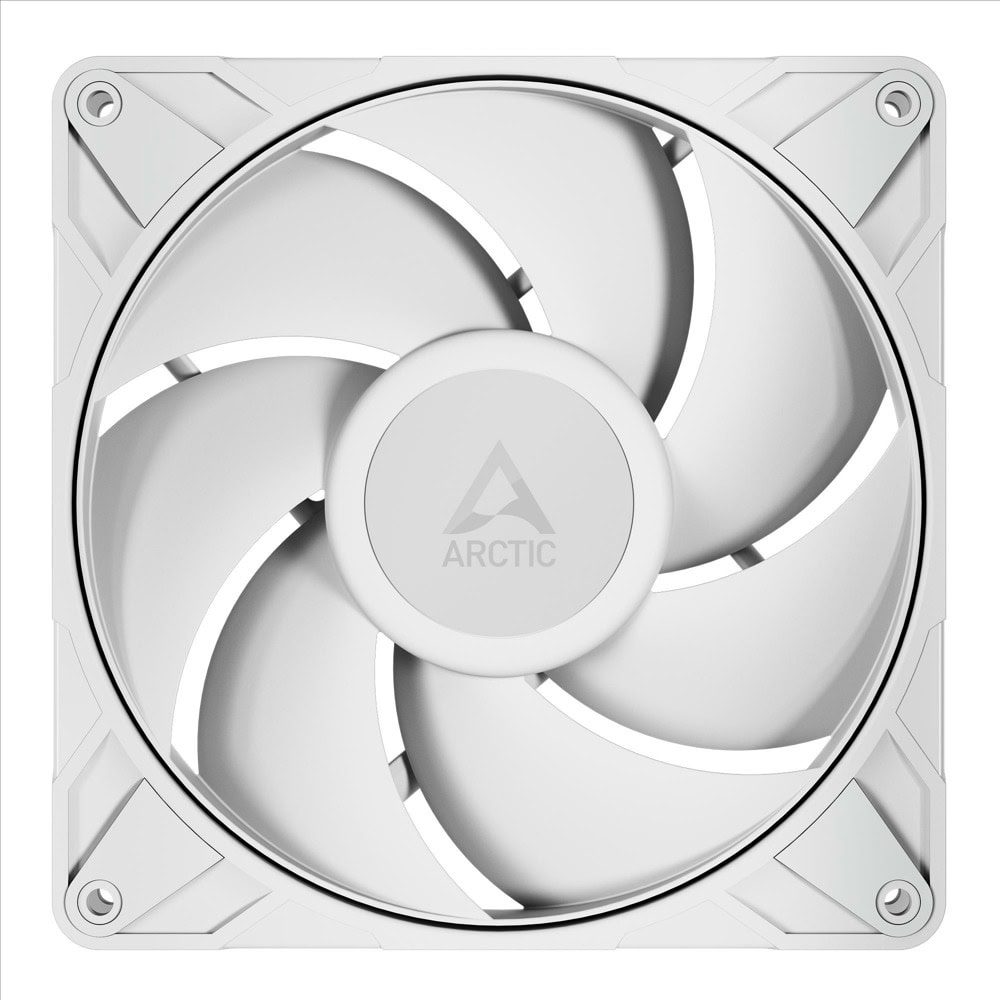

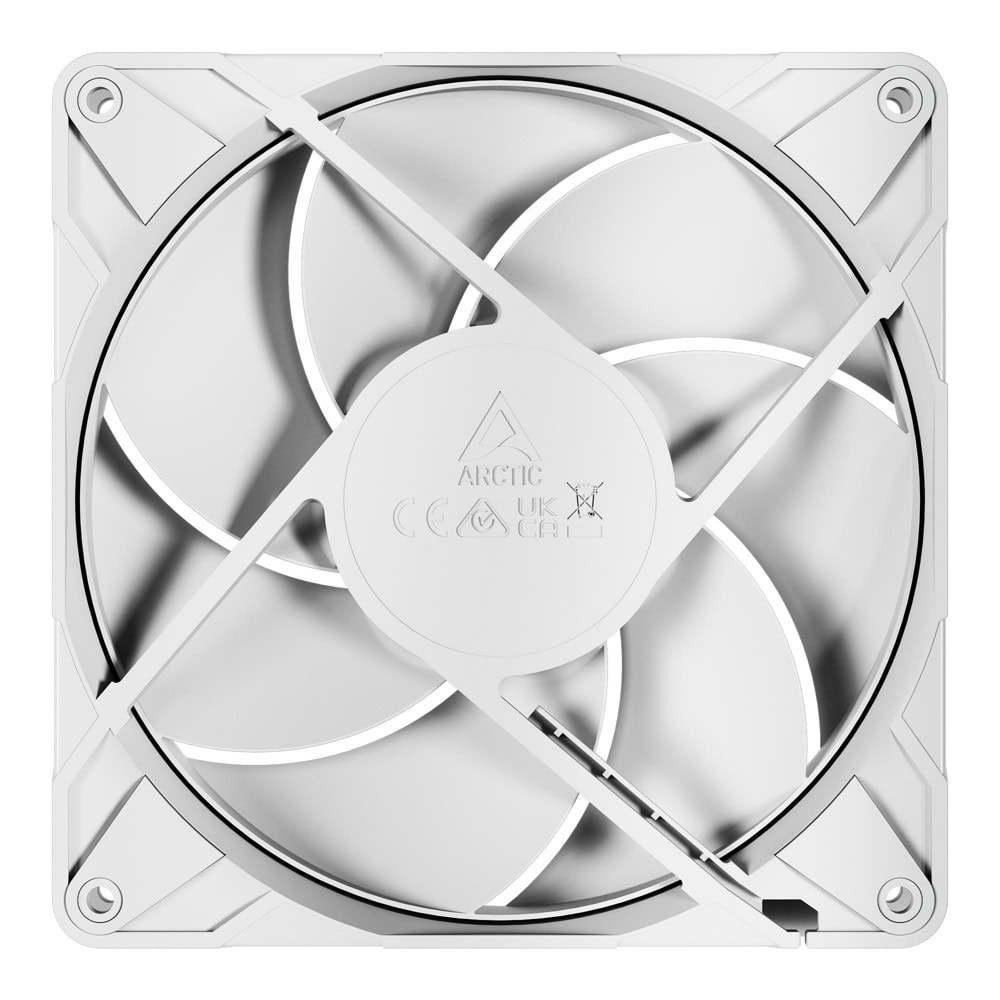

Name: Вентилатор 140mm, Arctic P14 Pro PST White, 4-pin, 2500rpm
Brand: Arctic
SKU: FANCSARCTICACFAN00317A
Price: 17.13 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Two-Plane Balancing

An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

Parameter	Specification
Operating Ambient Temperature	0–40 °C\
Dimensions	140 (L) × 140 (W) × 27 (H) mm
Net Weight	242 g
Fan Speed	400–2500 rpm, PWM controlled; 0 rpm below 5 % PWM
Airflow	110 cfm \| 186 m³/h
Static Pressure	5.2 mmH₂O
Fan Bearing	Fluid Dynamic Bearing
Typical Voltage	12 V DC
Start Up Voltage	5 V DC
Current	0.35 A
Cable Length	400 mm + 80 mm Daisy-Chain Cable
Connector	4-Pin Fan Plug + 4-Pin Socket
