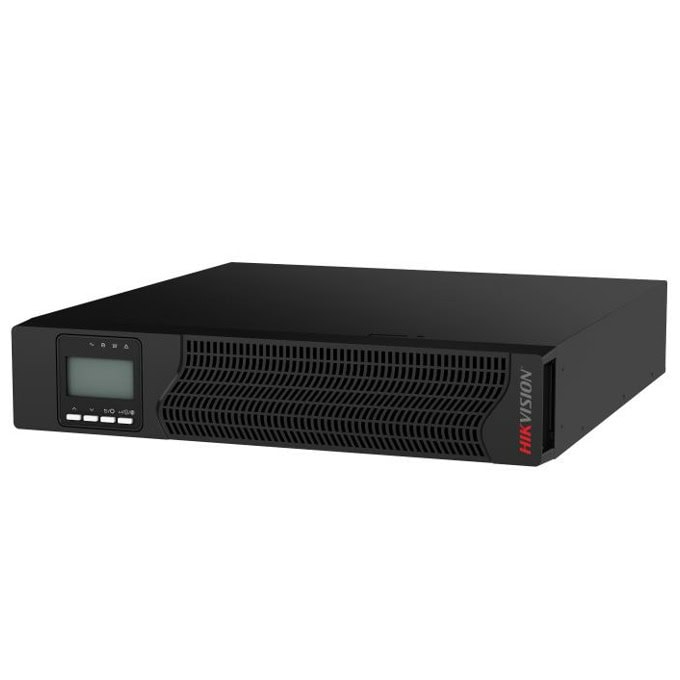

Hikvision DS-UPS06K-R/TJL
- Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
- Digital control system for enhanced stability and reliability.
- ECO operation mode for improved energy efficiency and reduced user costs.
- Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
- Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
- Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;
| Category | Specification |
|---|---|
| Power | |
| UPS Capacity | 6000 VA / 6000 W |
| Input | |
| Nominal Voltage | 208/220/230/240Vac |
| Phase | Single Phase |
| Voltage Range | 110300Vac (110300Vac@50% load / 176~300Vac@100% load) |
| Frequency | 40~70Hz (50/60Hz Auto-Sensing) |
| Power Factor | ≥0.99 |
| Output | |
| Voltage | 208/220/230/240Vac |
| Crest Factor | 3:1 |
| Power Factor | 1 |
| Output Sockets | IEC: Connecting terminal + IEC socketUS: Connecting terminal + US socket panel |
| Frequency | Online mode: ±1%/±2%/±4%/±5%/±10% (Optional)Battery mode: 50/60±0.1% Hz |
| Harmonic Distortion | ≤1% (Linear load), ≤3% (Non-linear load) |
| Transfer Time | AC to Battery: 0 msInverter to Bypass: 0 ms |
| Output Waveform | Pure Sinewave |
| Battery | |
| Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage | 192/240Vdc (Settable) |
| Charging Current | Max. 12A |
| Expandable Runtime | Yes, with external battery packs (DS-UPSB09192A-R/TJ or DS-UPSB09240A-R/TJ) |
| Indicator | |
| Alarm | Battery mode / Battery low voltage / Overload / Fault |
| LCD Display | Input/output voltage & frequency, Load %, Battery voltage, Temperature, Backup time |
| Efficiency | |
| AC Mode | Up to 95% |
| Battery Mode | Up to 93% |
| Environment | |
| Operating Temp. | 0℃~40℃ |
| Storage Temp. | -25℃~55℃ |
| Humidity Range | 0~95% (Non-condensing) |
| Altitude | 03000m (Derating required for 10003000m) |
| Noise Level | ≤50 dB |
| Physical | |
| Dimensions (mm) | 440 × 621.5 × 86.5 |
| Net Weight (kg) | 15.5 |
Виж още UPS Hikvision
Виж всички UPS в категорията
Технически характеристики
| Изходяща мощност: | 6000 VA |
|---|---|
| Тип: | ON Line |
| Формфактор: | Rack |
