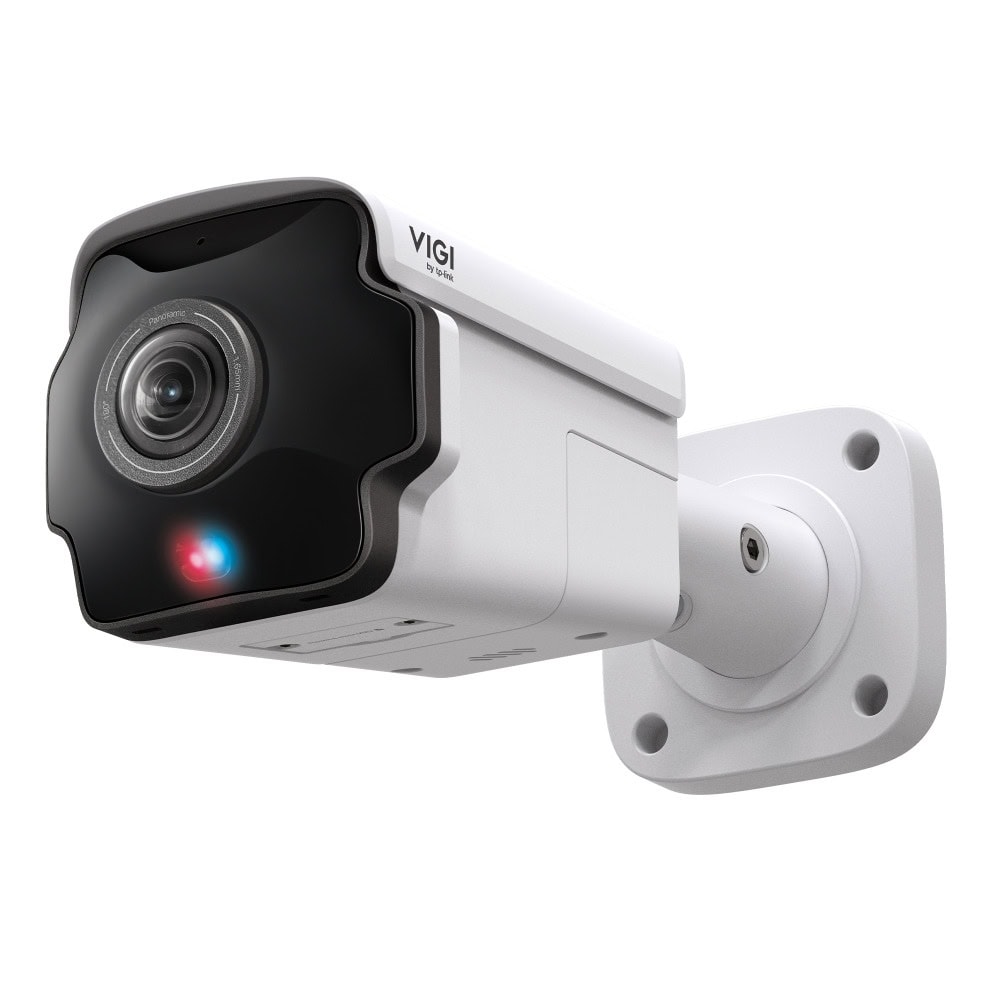

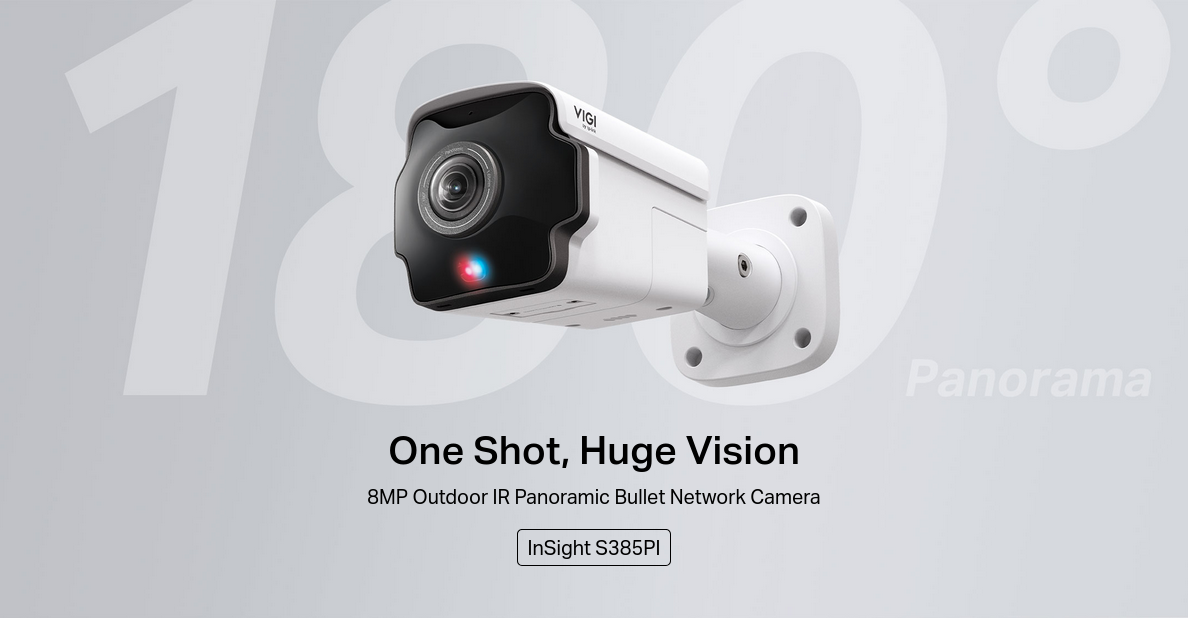

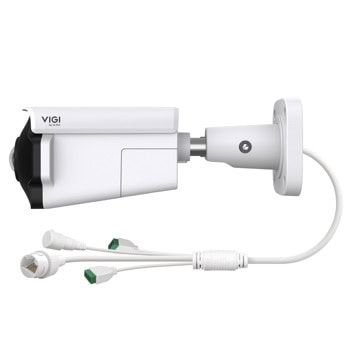

TP-Link VIGI InSight S385PI
VIGI 8MP Outdoor IR Panoramic Bullet Network Camera

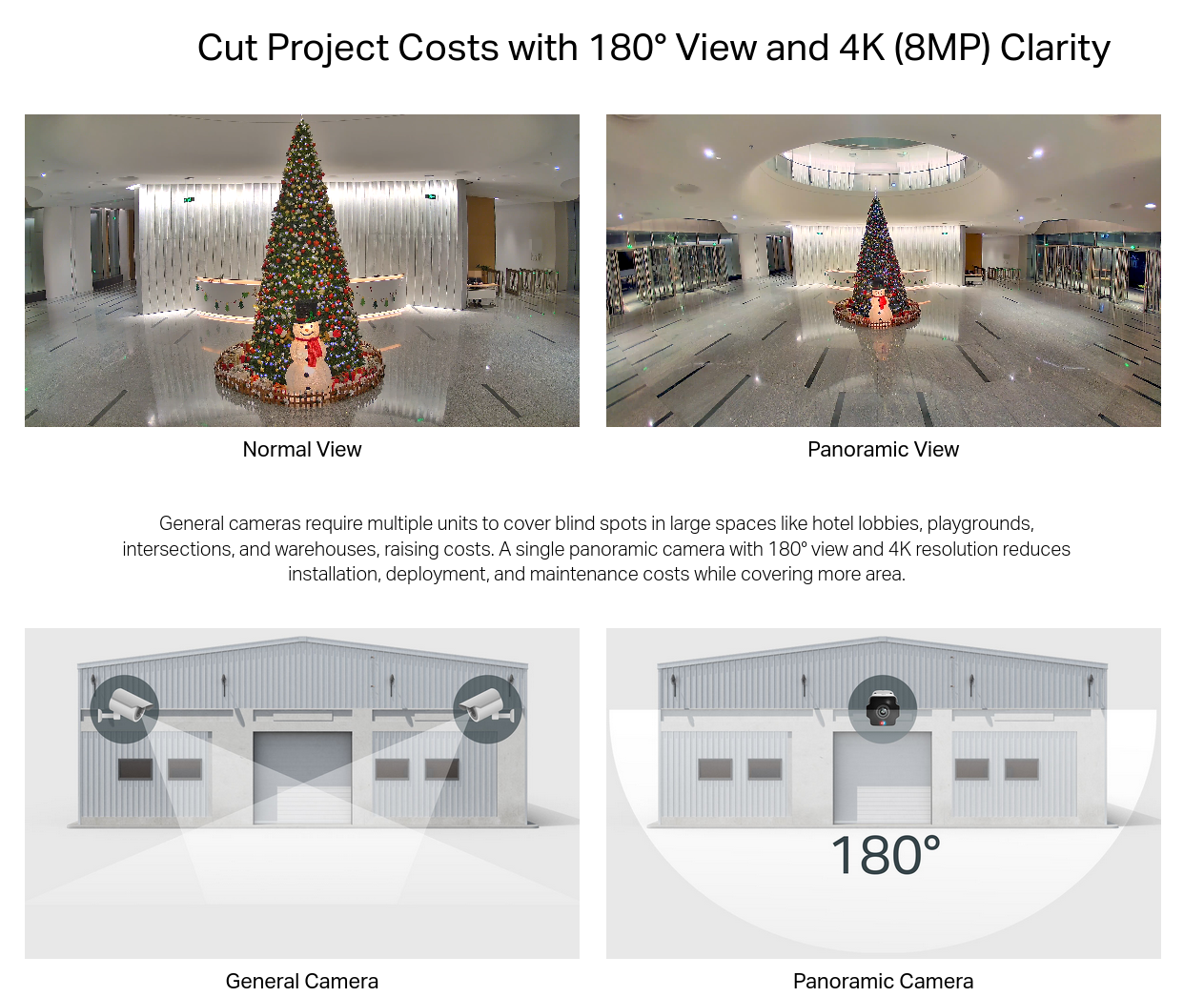

- 180° Panorama View with Huge Vision
- 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)*1

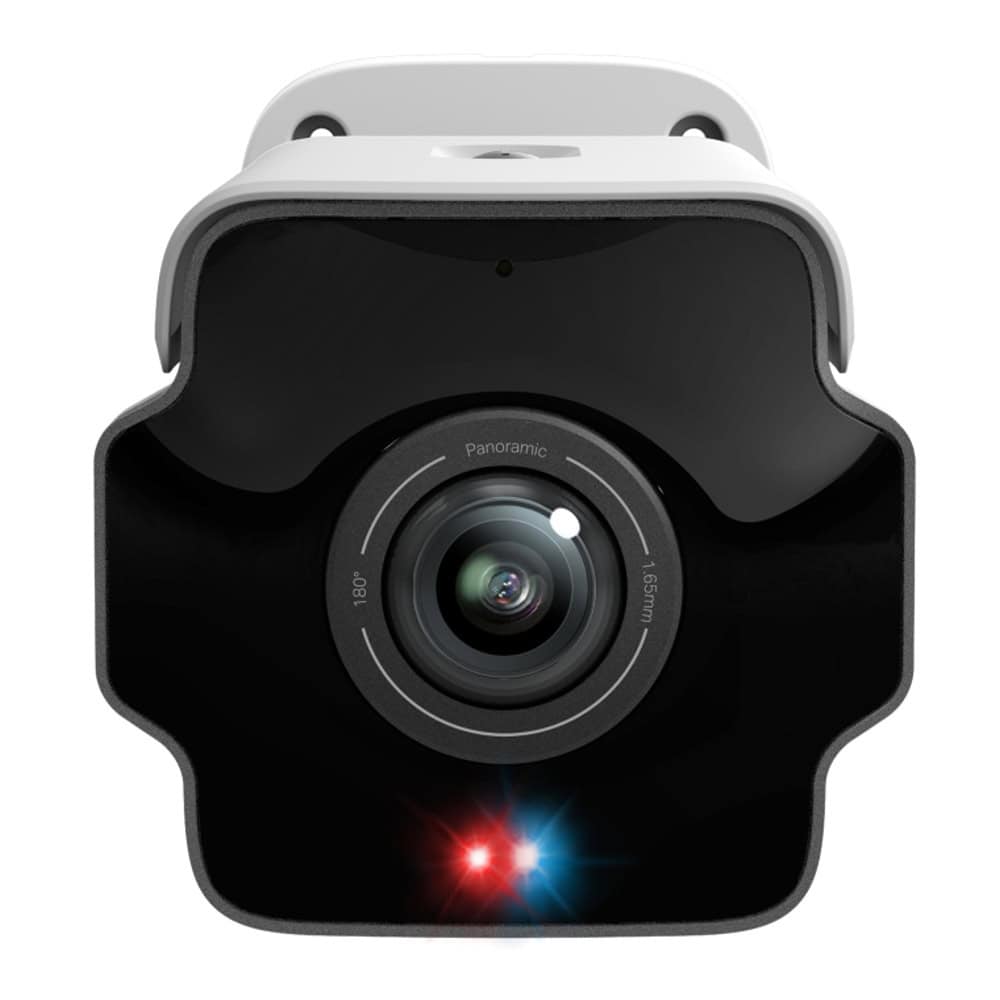

- Red-Blue Warning Lights with Stronger Deterrence
- People & Vehicle Analytics*2
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Powerful, Efficient Monitoring with Active Defense
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.
| Category | Specification |
|---|---|
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | Horizontal: 180°; Vertical: 86°; Diagonal: 180° |
| Lens Mount | M12 |
| DORI Distance (1.65 mm) | D: 44 m; O: 18.33 m; R: 8.8 m; I: 4.4 m |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4; Range: 20 m; Wavelength: 850 nm |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| VIDEO | |
| Max. Resolution | 3840 × 2160 |
| Main Stream Frame Rate | 50Hz: 1–25fps; 60Hz: 1–30fps (max 20fps if image rotation is 90°/270°) |
| Main Stream Resolutions | 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Sub-Stream Frame Rate | 50Hz: 1–25fps; 60Hz: 1–30fps (max 20fps if image rotation is 90°/270°) |
| Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main: 256 Kbps–8 Mbps; Sub: 64 Kbps–1024 Kbps |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC (via client) |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filter | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Live View Streams | 3 Main + 3 Sub |
| Client Software | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browsers Supported | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security Features | Password Protection, HTTPS, IP Filter, Digest Authentication |
| ALARM & EVENT MGMT | |
| Smart Events | Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandonment/Removal, Loitering, People, Vehicle, Sound, Scene Change |
| Basic Events | Motion (Human/Vehicle classification), Tampering, Exception (Illegal Login), Alarm Input |
| Alarm Linkage | SD Recording, FTP Upload, Alarm Output, Push Notifications, Alarm Server, Sound/Light Alarm, Email Alarm |
| Deep Learning Analytics | People/Vehicle Search by Attribute |

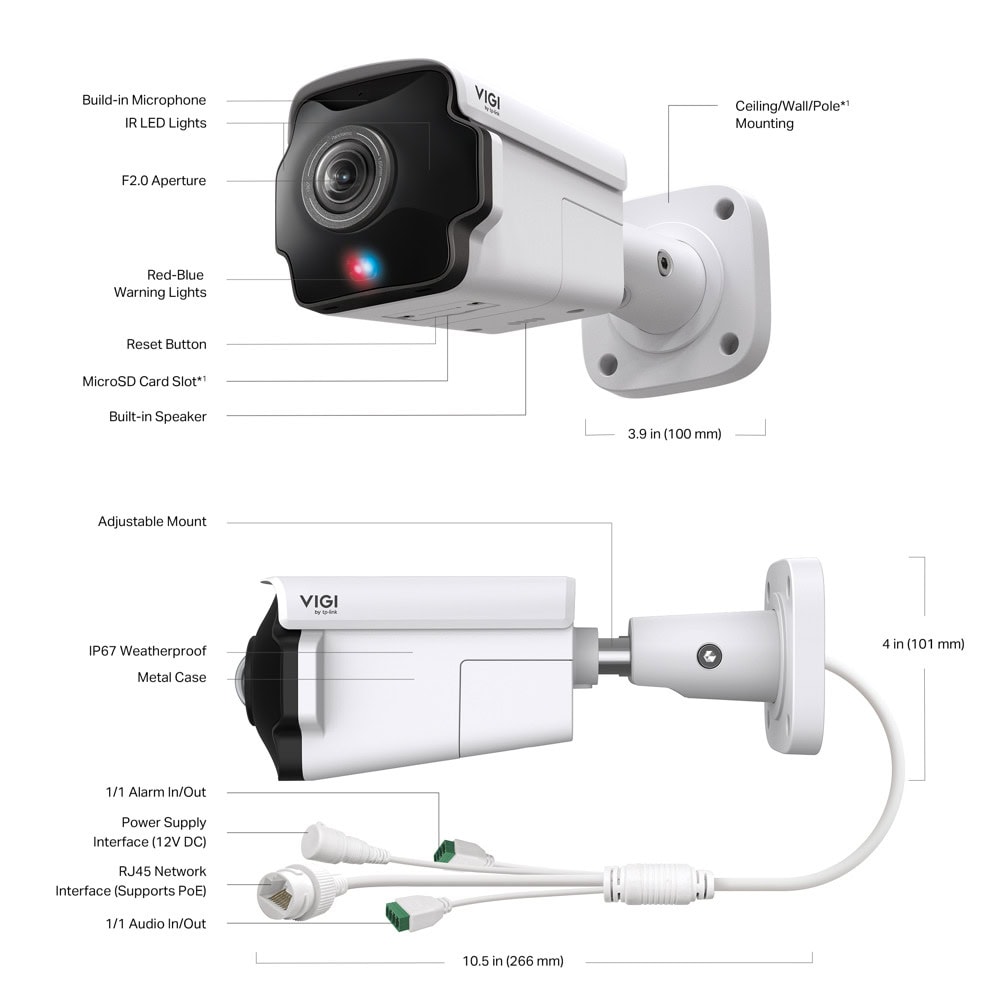

| INTERFACES | |
| Network | 1× RJ45 10/100M Ethernet, PoE |
| Alarm | 1 In, 1 Out |
| Red-Blue Warning Lights | Yes |
| Reset Button | Yes |
| Power Port | DC |
| On-Board Storage | MicroSD Slot (up to 512 GB) |
| Built-in Mic | Yes (5 m radius coverage) |
| Built-in Speaker | Yes |
| Audio Ports | 1 In, 1 Out |
| GENERAL | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | ≤ 95% (Non-Condensing) |
| Storage Humidity | ≤ 95% (Non-Condensing) |
| Material | Metal |
| Net Weight | 1.01 kg |
| Power Supply | 12V DC ± 5% (Max 18W), PoE 802.3at Class 4 (Max 21W) |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Dimensions (L×W×H) | 266 × 100 × 101 mm (10.5 × 3.9 × 4 in) |
