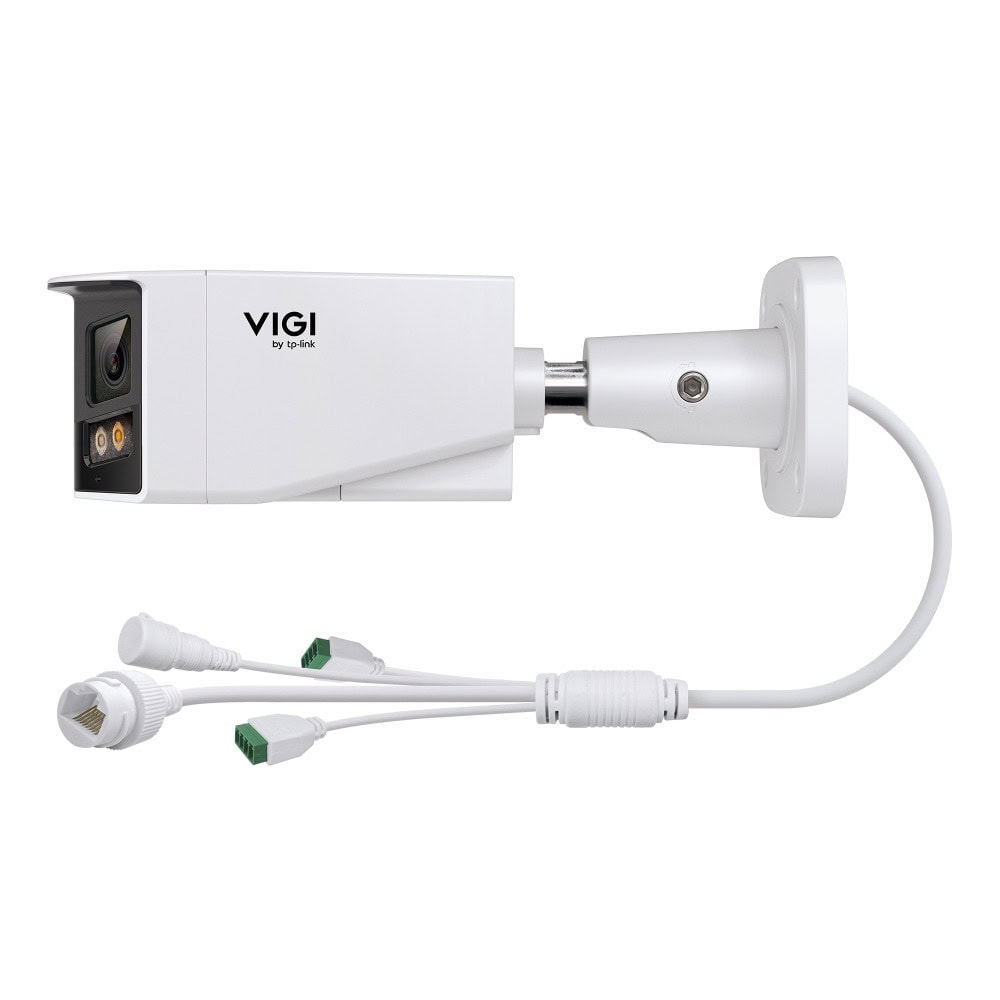

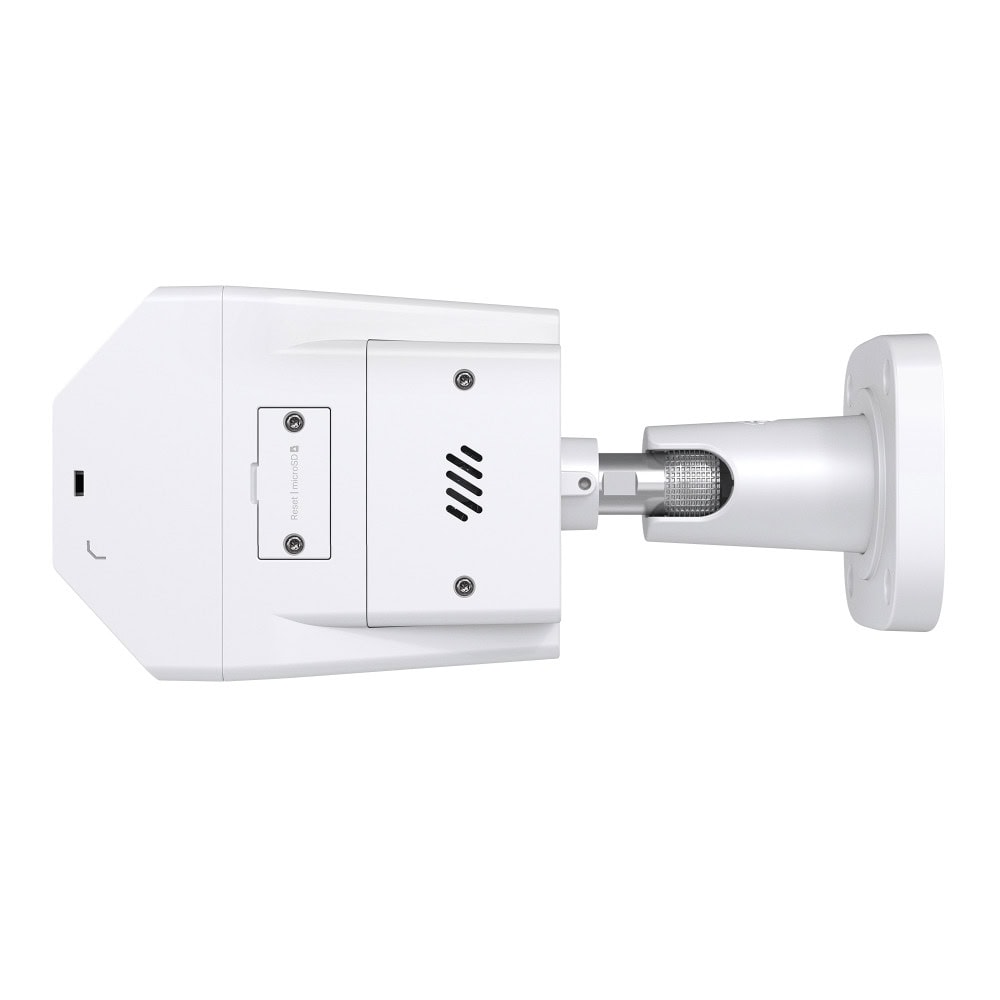

Name: IP камера TP-Link VIGI InSight S385DPS, насочена bullet камера, 8Mpix(5456x1520@25fps), 5mm обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 50m), външна P67/IK10, PoE, microSD слот до 512GB, микрофон и говорител, 180° панорама
Brand: TP-Link
SKU: SCMDGTPLINKINSIGHTS385DPS
Price: 613.88 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

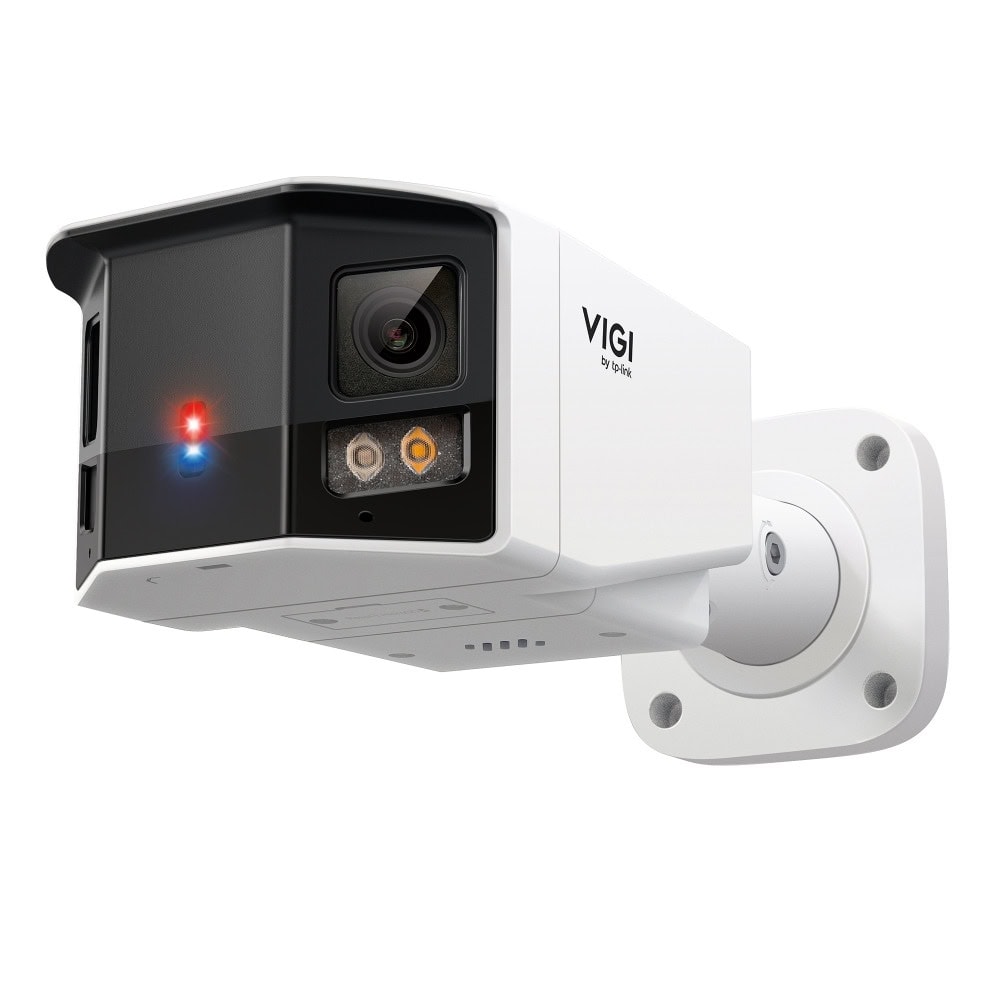

InSight S385DPS

VIGI 8MP Outdoor ColorPro Panoramic Bullet Network Camera

8MP Super Clarity Imaging

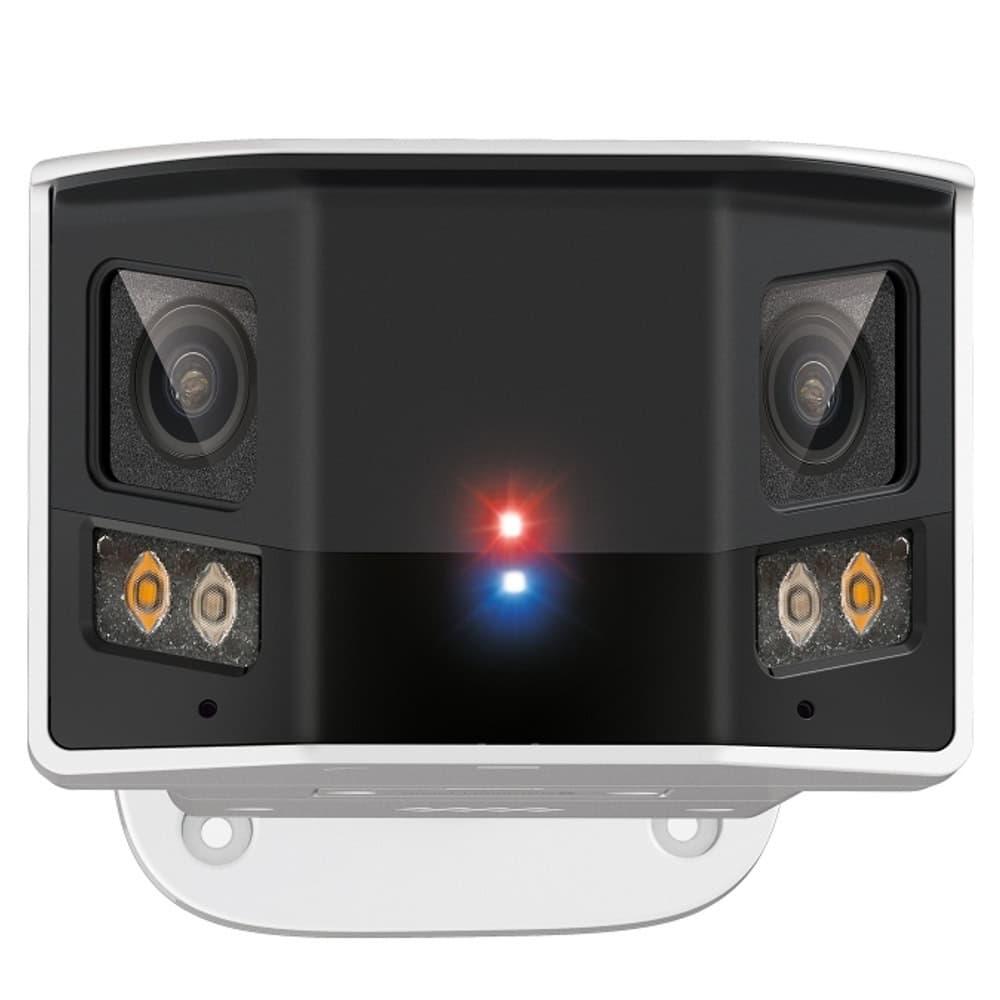

Dual-lens Stitched Panoramic Imaging
Ultra-Low Light ColorPro Night Vision
Red-Blue Warning Lights and Sound Alerts
People & Vehicle Analytics‡
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Audio and Alarm Interface Available
IP67 Weatherproof and IK10 Vandal-Proof
H.265+ Compression Technology

Cut Project Costs with 180° View and 8MP Clarity

VIGI 8MP dual‑lens camera eliminates the need for multiple devices, reducing deployment costs with its wide coverage and high‑resolution efficiency—all in one compact solution.

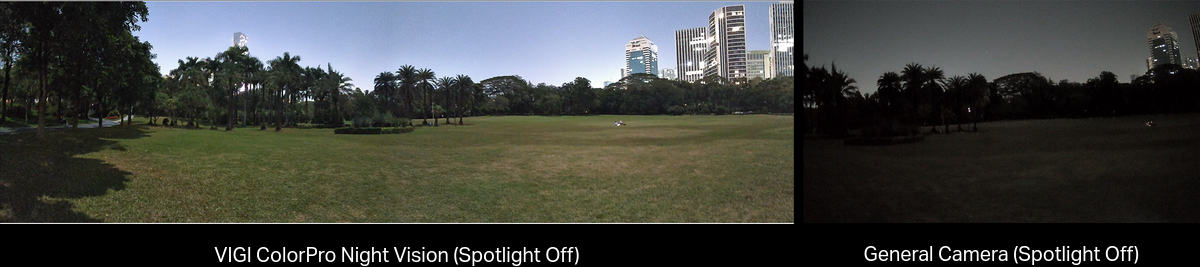

Experience True Colors & Sharp Details in Ultra Low Light

Supported by VIGI ColorPro Night Vision Technology, never miss a detail even at night, see wildly and vividly.

Specification	Value
Image Sensor	Dual 1/1.79” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.0005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified / Scheduled / Auto
Type	Fixed Focal Lens
Focal Length	5 mm
Aperture	Dual F1.0
FOV	Horizontal FOV: 180°, Vertical FOV: 51°, Diagonal FOV: 180°
Lens Mount	M16
DORI Distance	5 mm: D: 249 ft (76 m), O: 95 ft (29 m), R: 46 ft (14 m), I: 23 ft (7 m)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
IR LED	Quantity: 2, Range: 164 ft (50 m), Wavelength: 850 nm
White LED	Quantity: 2, Range: 164 ft (50 m)
Illuminator On/Off Control	Auto / Scheduled / Always on / Always off
Max. Resolution	5456 × 1520
Main Stream	50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/24 fps; Resolutions: 5456×1520, 4096×1152, 2160×608; People counting/object attribute analysis limits frame rate to 20 fps
Sub-Stream	50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/24 fps; Resolutions: 2160×608, 1280×360; People counting/object attribute analysis limits frame rate to 20 fps
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps–8 Mbps; Sub-Stream: 64 Kbps–1024 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC / 3D DNR / HLC / SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Regions
OSD Setting	Yes
Audio Communication	Two-Way Audio
Audio Input	Built-in Dual-Microphone, Audio In Interface
Audio Output	Built-in Speaker, Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps (G.711 alaw)
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser	Google Chrome® 57+, Firefox® 52+, Safari® 11+, Microsoft® Edge 91+
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication
Smart Event	Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection
Basic Event	Motion Detection (with Human & Vehicle Classification), Video Tampering Detection, Exception (Illegal Login), Alarm Input Device
Alarm Linkage	Memory Card Recording, FTP Upload, Alarm Output Device, Push Notifications, Alarm Server, Active Defence Sound Alarm, Active Defence Light Alarm, Email Alarm
People & Vehicle Analytics	Search and filter people or vehicles using multiple attributes for faster post-event search
People Counting	Tracks entries, exits, and passersby using head-shoulder detection with real-time flow analytics
Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out, Red-Blue Warning Lights
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, MicroSD Support up to 512 GB
Built-in Microphone	Yes; records within a 16.4-ft (5 m) radius
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Material	Metal
Net Weight	1.12 kg
Power Supply	12V DC ±5%, Max. 18W, 5.5 mm Coaxial Power Plug; PoE: 802.3at Class 4, Max. 21W
Protection	IP67 Weatherproof, IK10 Vandal-Proof
Product Dimensions (L × W × H)	10.5 × 4.6 × 3.5 in (266 × 116 × 90 mm)

Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията

Технически характеристики

Вид:	Насочени ("bullet") камери
Резолюция:	QHD
Управляема:	Неуправляема
Аудио:	Двупосочно
Безжична:	Не
Външен монтаж:	Да
IR Осветление:	Да
Термокамера:	Не
