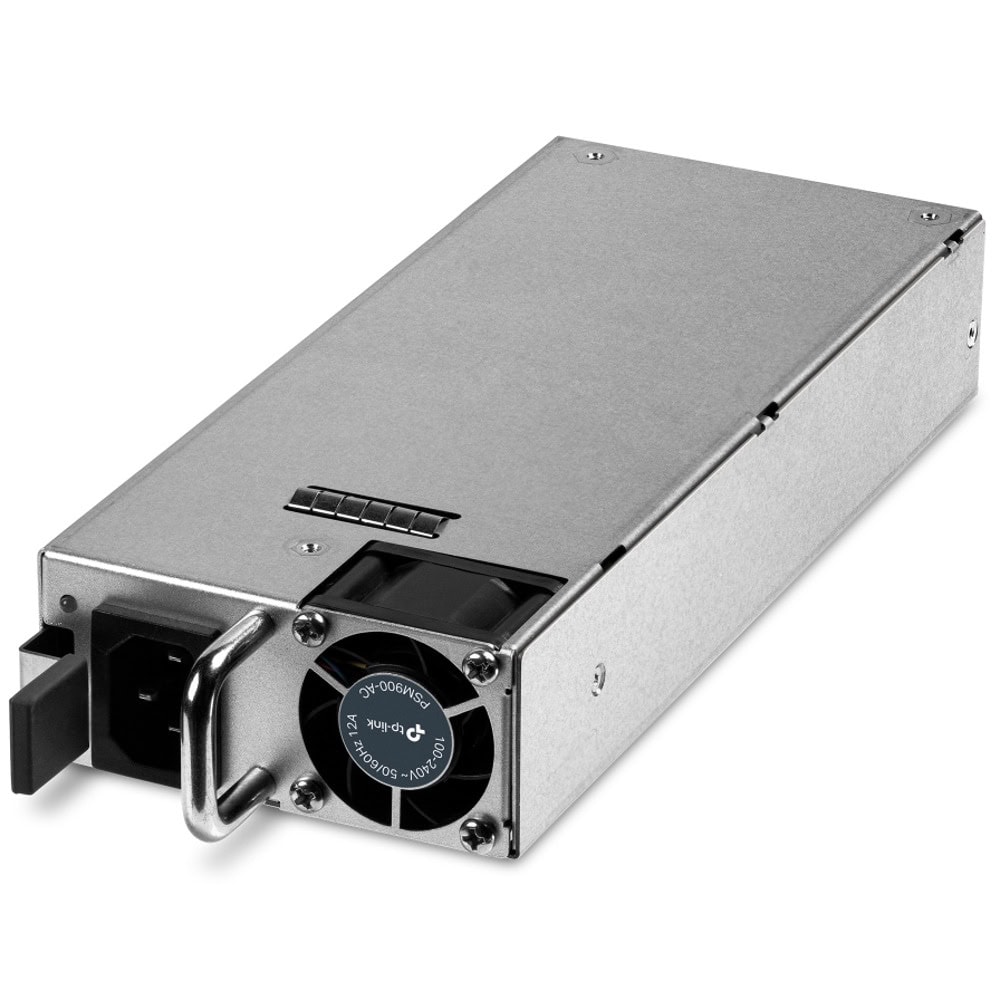

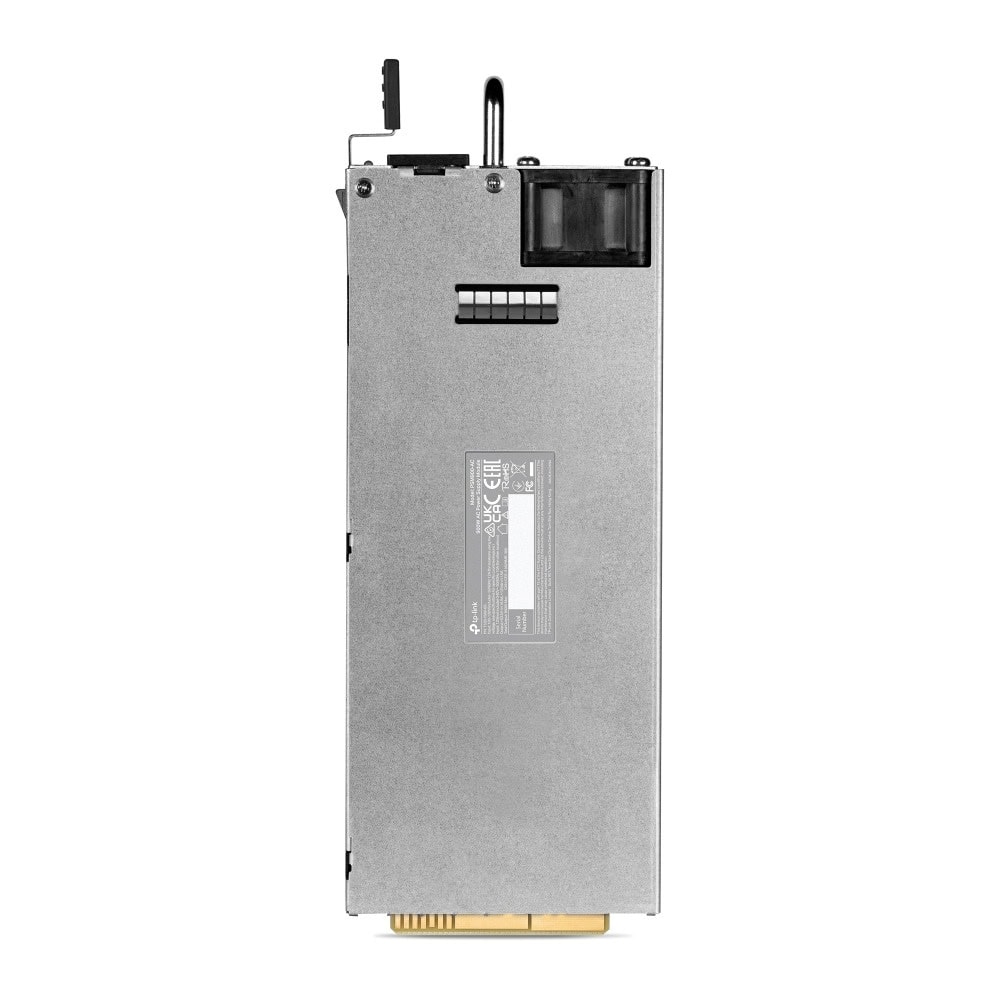

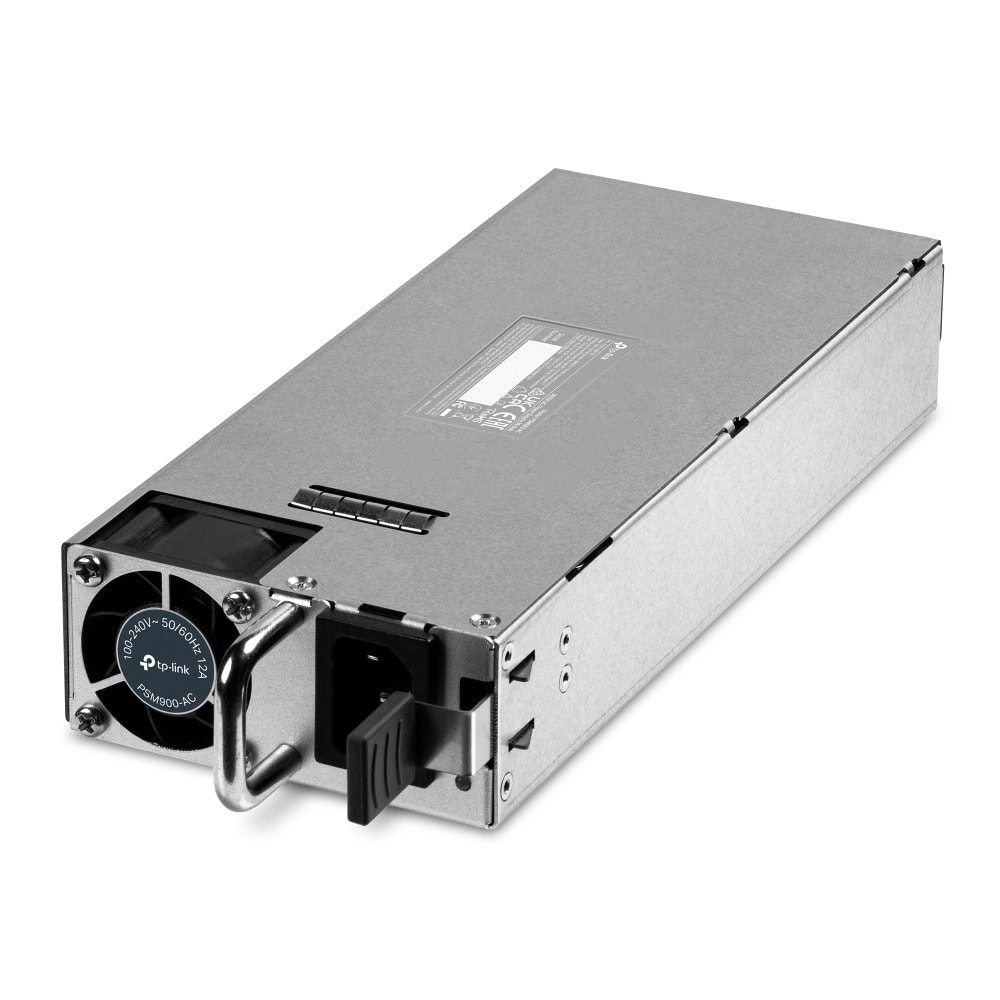

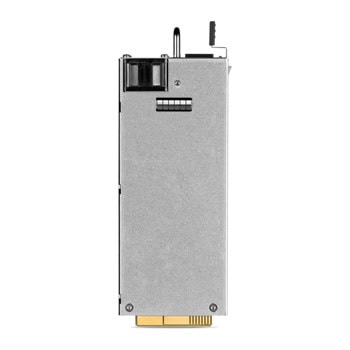

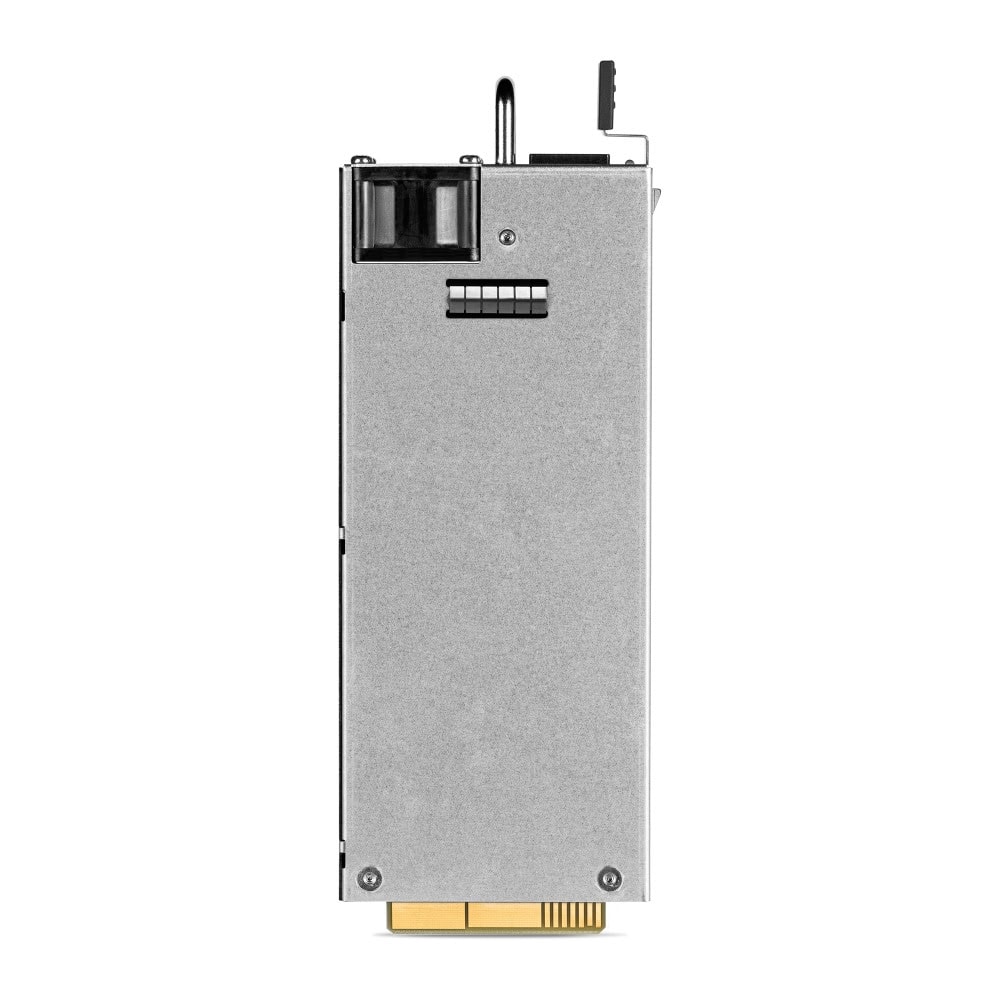

TP-Link Omada PSM900-AC
900W AC Power Supply Module
The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
- Up to 900 watts output power
- Hot swappable
- 53.5 V DC output voltage
- Output over-voltage/under-voltage/short circuit/over-current protection
- Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
| HARDWARE FEATURES | |
|---|---|
| LED | Multi-function indication |
| Redundant Power Supply | |
|---|---|
| AC Power Supply | • 100-120V(include)~ 50/60Hz 12A (for locations using low voltage) • 120(not include)-240V~ 50/60Hz 10A (for other locations) |
| DC Power Output | 53.5 V/16.5 A |
| Surge Protection | ±6 kV |
| Dimensions ( W x D x H ) | 259.5*95.8*40.1 mm |
| Max. Power Output | 900W |
| Environment | • Operating Temperature: 0˚C–45˚C (32˚F to 113˚F) • Storage Temperature: -40℃–70℃ (-40℉~158℉) • Operating Humidity: 10%–90% RH, Non-condensing • Storage Humidity: 5%–90% RH, Non-condensing |
Виж още UPS/Електричество аксесоари TP-Link
Виж всички UPS/Електричество аксесоари в категорията
Технически характеристики
| Тип: | Захранващ модул |
|---|
