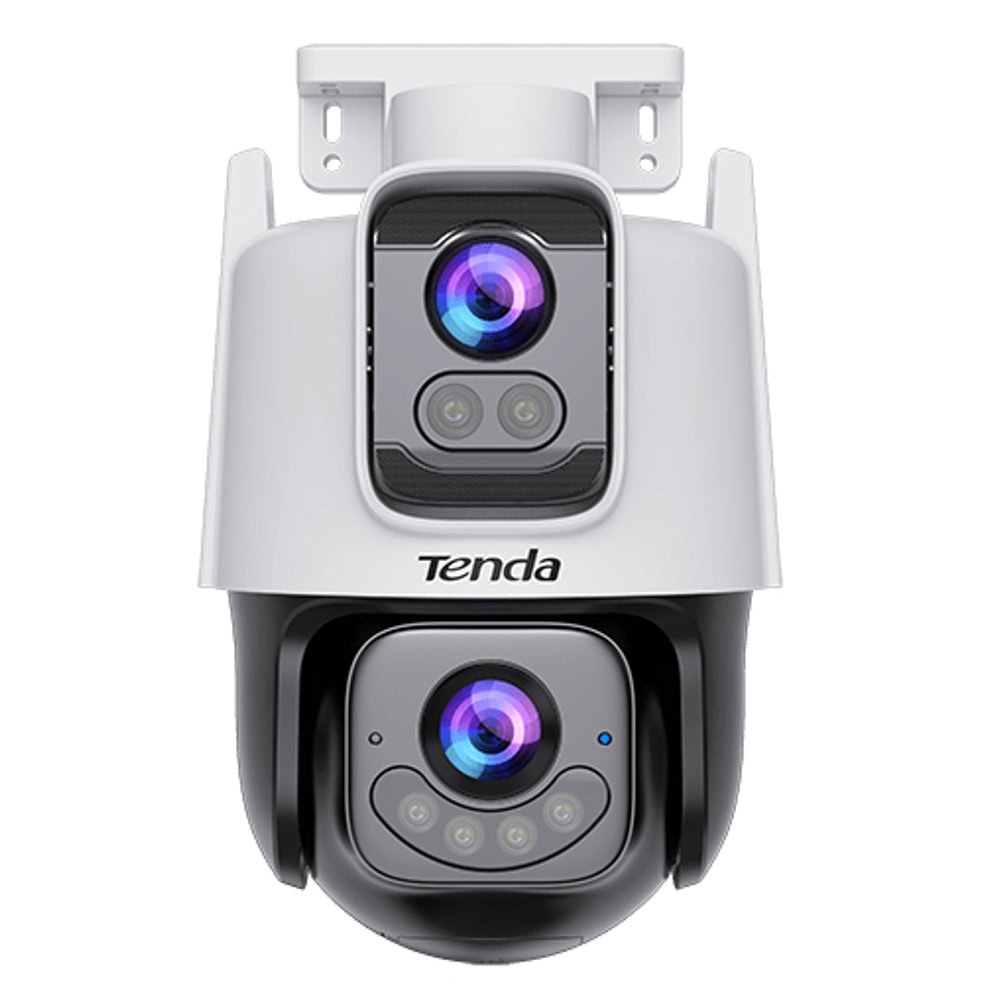

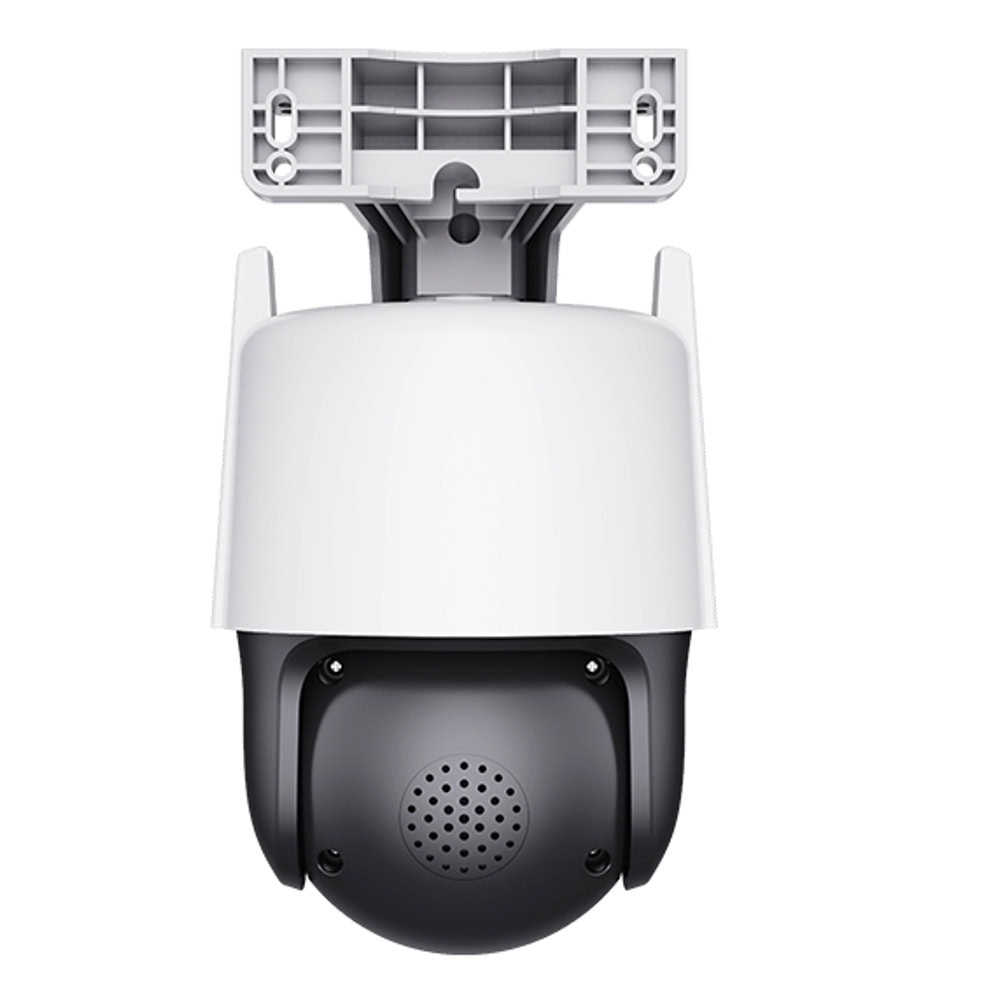

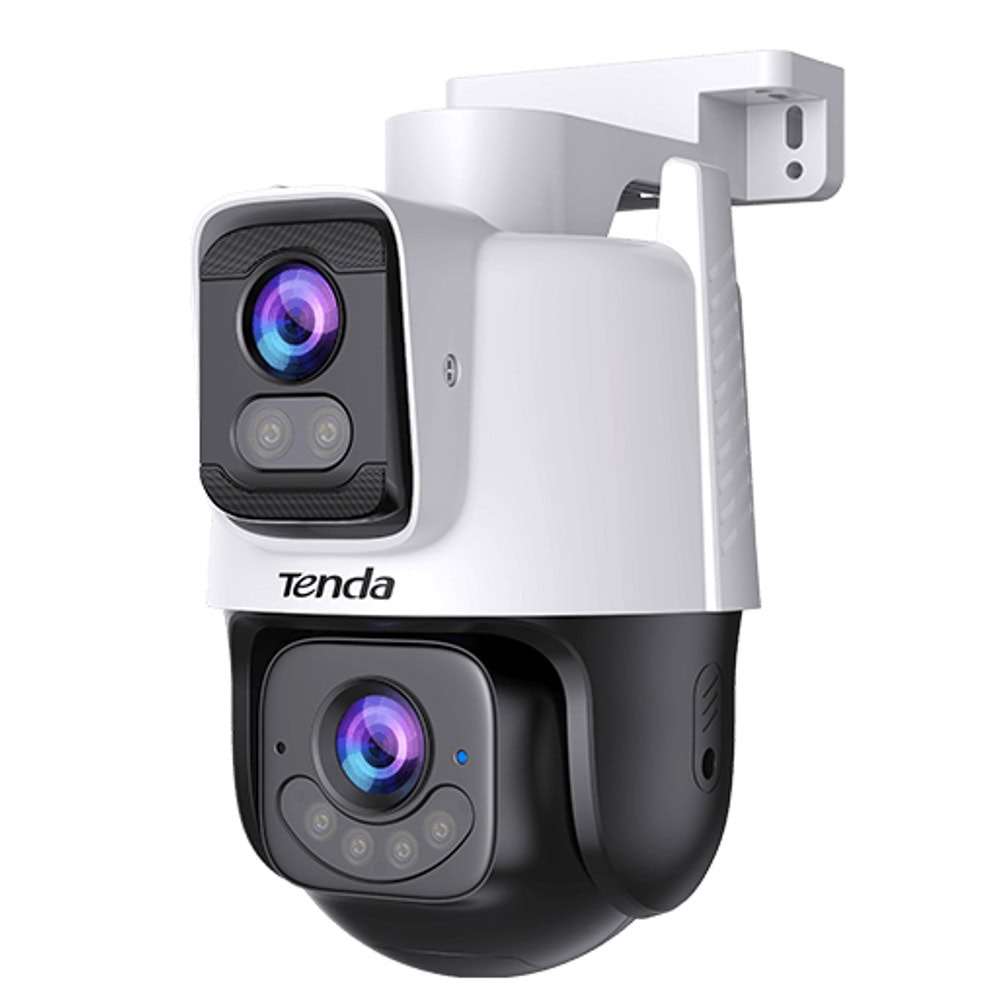

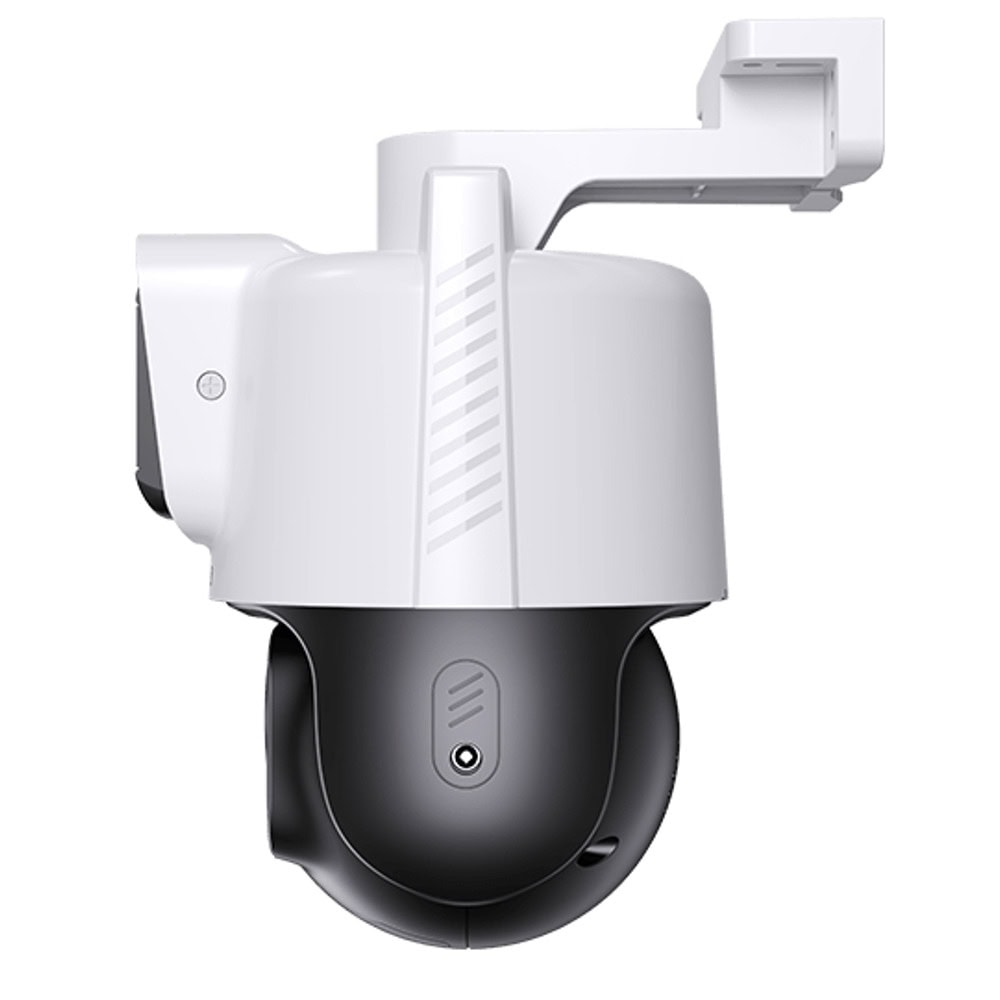

IP камера Tenda RH9-WCA, куполна PT (Pan/Tilt) камера, 6(3+3)Mpix(2304x1296/640x360@25fps), 4/6mm обектив, H.265/H.264, IR осветеност (до 30m), външна Wi-Fi, IP65, RJ45, microSD слот до 512GB, микрофон и говорител

Dual lenses provide an unprecedented double areas protection experience

Equipped with 3MP fixed lens and 3MP PT lens, it can simultaneously protect two different areas, effectively reducing the blind spots.

Dual lenses with different focal lengths provide comprehensive coverage from wide-angle to close-up shots.

The 4 mm wide-angle fixed lens safeguards broader areas, while the 6 mm telephoto PT lens delivers sharper details, including facial features and license plates.

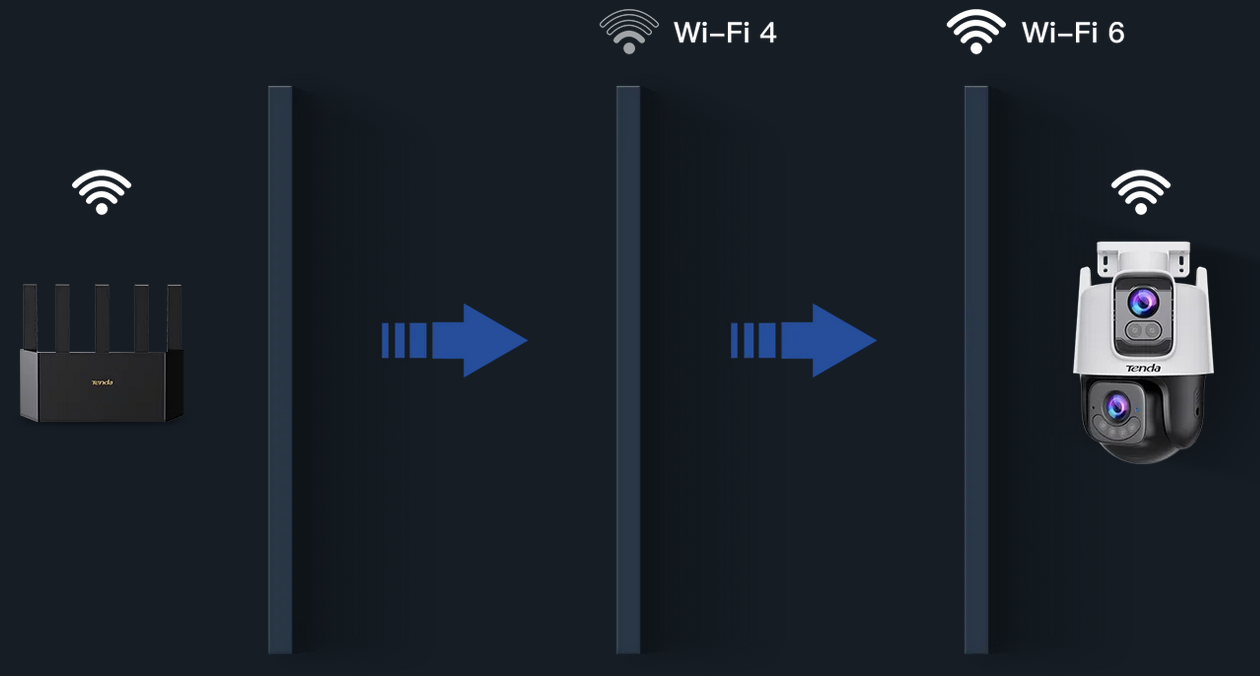

Next-level Wi-Fi 6 Technology, Stable and Smooth Video

With the latest Wi-Fi 6 technology, built-in special antenna for signal enhancement, it offers better anti-interference performance and lower latency compared to Wi-Fi 4, allowing your security range wider.

• Camera

  Image Sensor

  1/3 Progressive Scan CMOS sensor

  Day and Night

  ICR type

  Bracket Angle Adjustment

  Pan：0°to 260°

• Lens

  Focal Length

  Fixed Lens：4mm
  PT Lens：6mm

  Aperture

  Fixed Lens：F1.6
  PT Lens：F1.6

  FOV

  Fixed Lens：Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4°
  PT Lens：Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4°

• Illuminator

  Supplementary Light

  6 IR Lights, 6 Spotlights

  Supplementary Light Distance

  Up to 30 m/100 ft (depending on environment)

  IR Wavelength

  850nm

  Night Vision Mode

  Smart Mode, Full Color Mode, Black & White Mode

• Video

  Video Encoding Format

  Fixed Lens：H.265, H.264
  PT Lens：H.265, H.264

  Main Stream Resolution

  Fixed Lens：2304 ×1296, 1920 × 1080, 1280 × 720
  PT Lens：2304 ×1296, 1920 × 1080, 1280 × 720

  Sub Stream Resolution

  Fixed Lens：640 × 360
  PT Lens：640 × 360

  Frame Rate

  Fixed Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps
  PT Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps

  Bit Rate

  Fixed Lens：512kbps -- 4096kbps
  PT Lens：512kbps -- 4096kbps

  Bit Rate Control

  Fixed Lens：CBR,VBR
  PT Lens：CBR,VBR

• Audio

  Audio Encoding Format

  G.711A, G.711U, AAC

  Audio Sampling Rate

  8 kHz

  Audio Communication

  Two-way Audio, Voice Input

• Image

  Image Enhancement

  DWDR, BLC, HLC, 3D DNR

  Privacy Mask

  4 Areas

• Network

  Ethernet Port

  1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

  ONVIF

  Support

  Protocols

  TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

  Client

  TDSEE (mobile phone), TDSEE STUDIO (PC)

  Web Browser

  Plug-in free live view: Chrome, Edge, Opera

• Pan&Tilt

  Pan Movement Range

  0°--355°

  Tilt Movement Range

  0°--90°

  Preset

  6

  Patrol

  Panoramic Patrol, Preset Patrol

• Wi-Fi

  Antenna

  Internal antenna

  Wireless Standard

  IEEE 802.11 b/g/n/ax

  Transmission Rate

  Up to 287Mbps

  Channel Width

  20/40 MHz

  Modulation

  DSSS/OFDM/OFDMA

  Frequency Band

  2.4GHz: 2412MHz-2472MHz(CH1-CH13)

  Transmit Power

  2.4GHz: <0.1W(EIRP)

  Security

  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Alarm

  Smart Detection

  Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection

  Smart Linkage

  Sound&light Alert, Dual-lens Linkage Tracking

  DIY Audio

  3 Customized Audios

• Interface

  Audio Input

  Built-in MIC, adjustable microphone volume

  Audio Output

  Built-in Speaker, 76 dBA (Alarm sound at 1 meter), adjustable sound level

  Storage

  Built-in Micro SD Card Slot, Up to 512 GB

  Reset Button

  Support

  LED Indicator

  Dual Color(red & blue)
  LED Indicator

• General

  Material

  Plastic12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug

  Product Dimension

  203mm x 122mm x 162mm(8.0" × 4.8" × 6.4")

  Package Dimension

  240mm x 145mm x 193mm(9.4'' × 5.7'' × 7.6'')

  Product Weight

  527g(1.16lb)

  With Package Weight

  802g(1.77lb)

  Protection Level

  IP65

  Installation Method

  Wall Mounting, Ceiling Mounting, Pole Mounting
