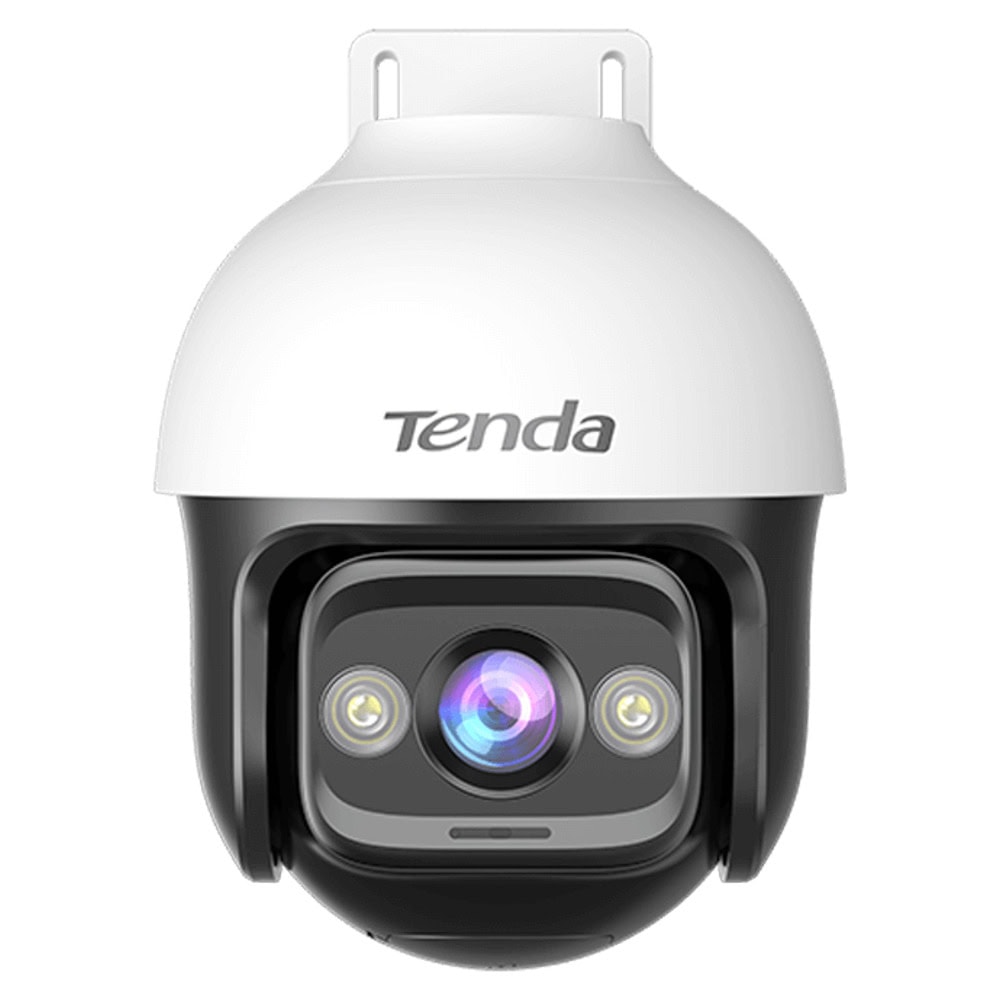

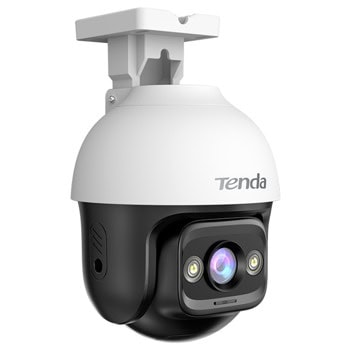

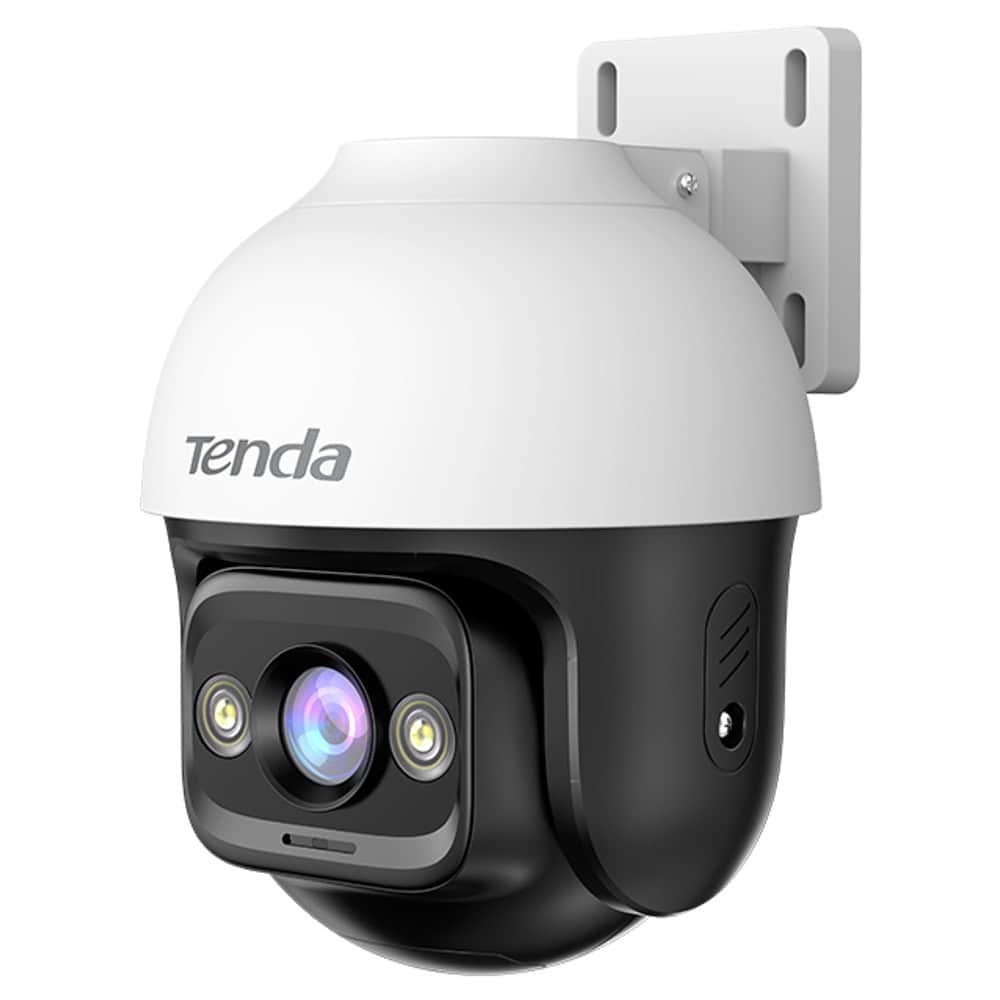

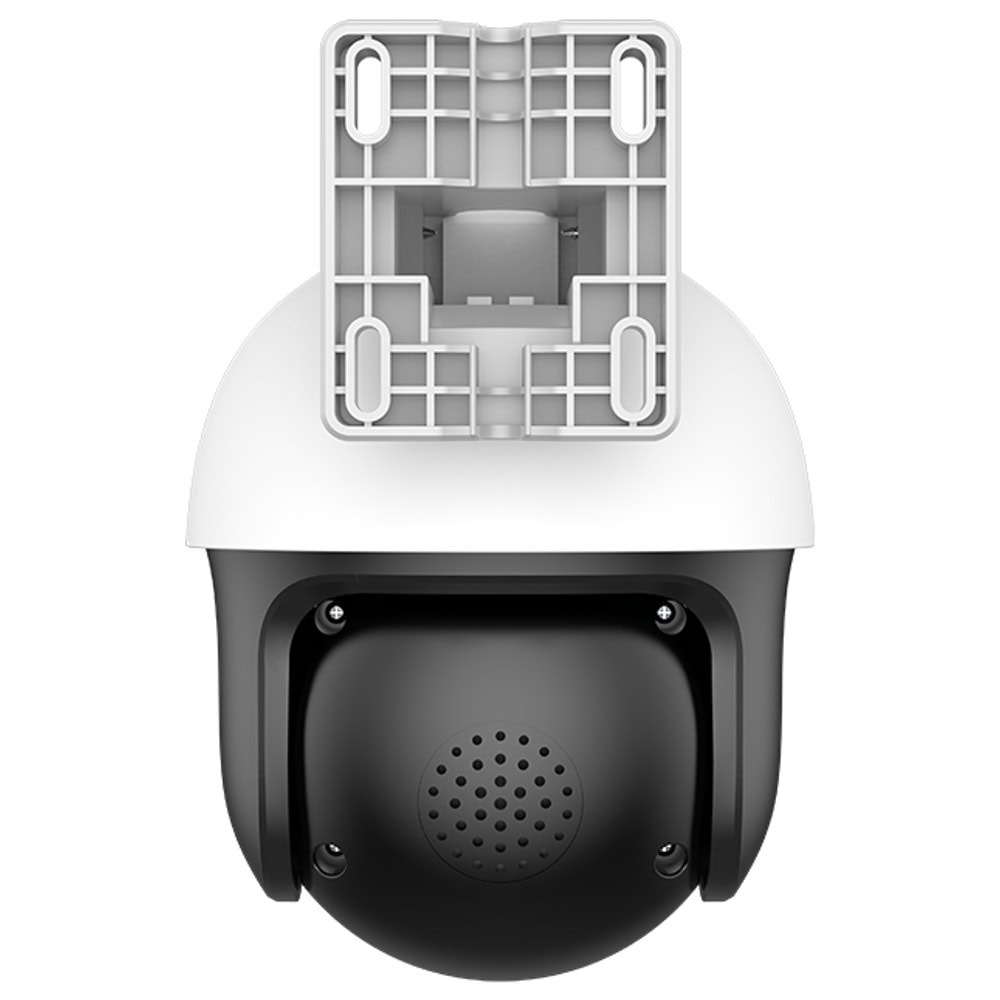

IP камера Tenda RH3-WCA, куполна PT (Pan/Tilt) камера, 2MPix (2304x1296@30fps), 4mm обектив, H.265/H.264, IR осветеност (до 30m), външна IP65, Wi-Fi, RJ45, microSD слот до 512GB, микрофон и говорител

Human and Vehicle Detection with Deep-Learning Algorithms

Empowered by an NPU module and a high-performance SOC boasting advanced deep-learning technology, the camera can accurately detect humans and vehicles, thus minimizing false alarms.

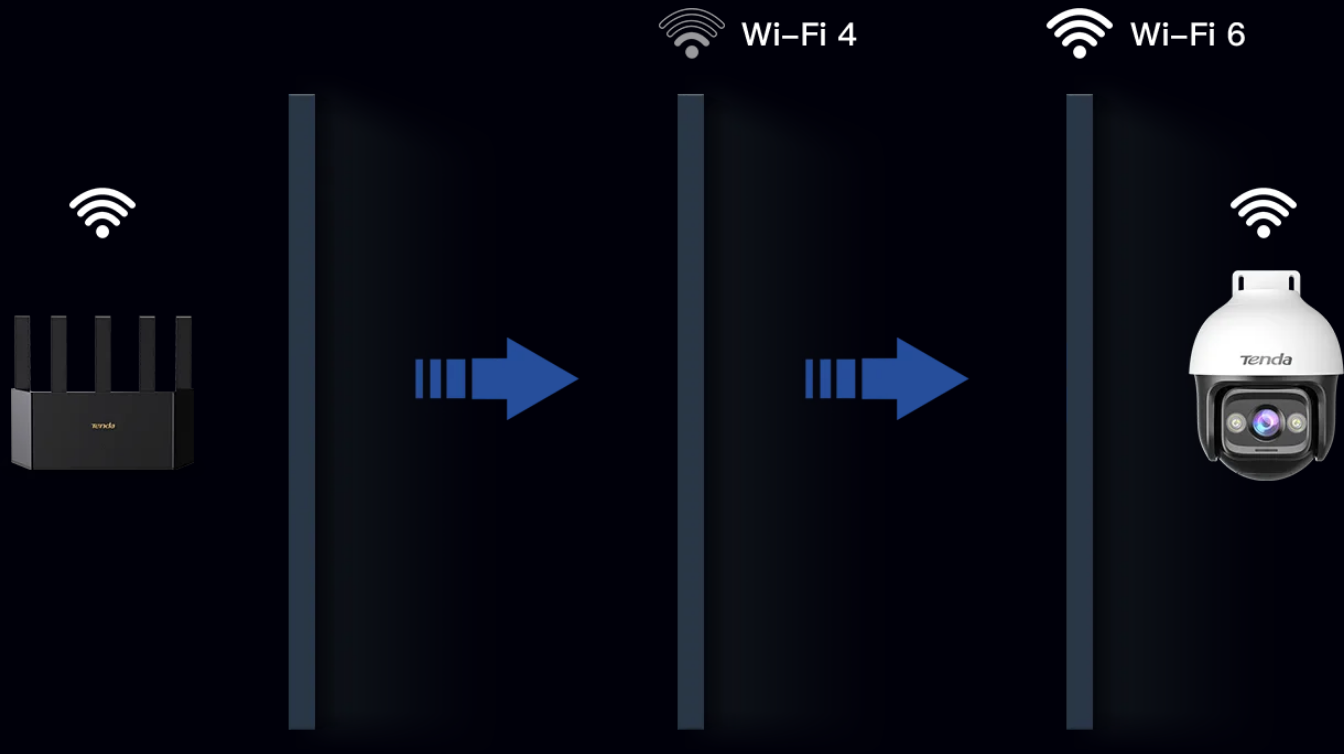

Next-level Wi-Fi6 Technology, Stable and Smooth Video

With the latest Wi-Fi6 technology, built-in special antenna for signal enhancement,it offers better anti-interference performance and lower latency compared to Wi-Fi4, allowing your security range wider.

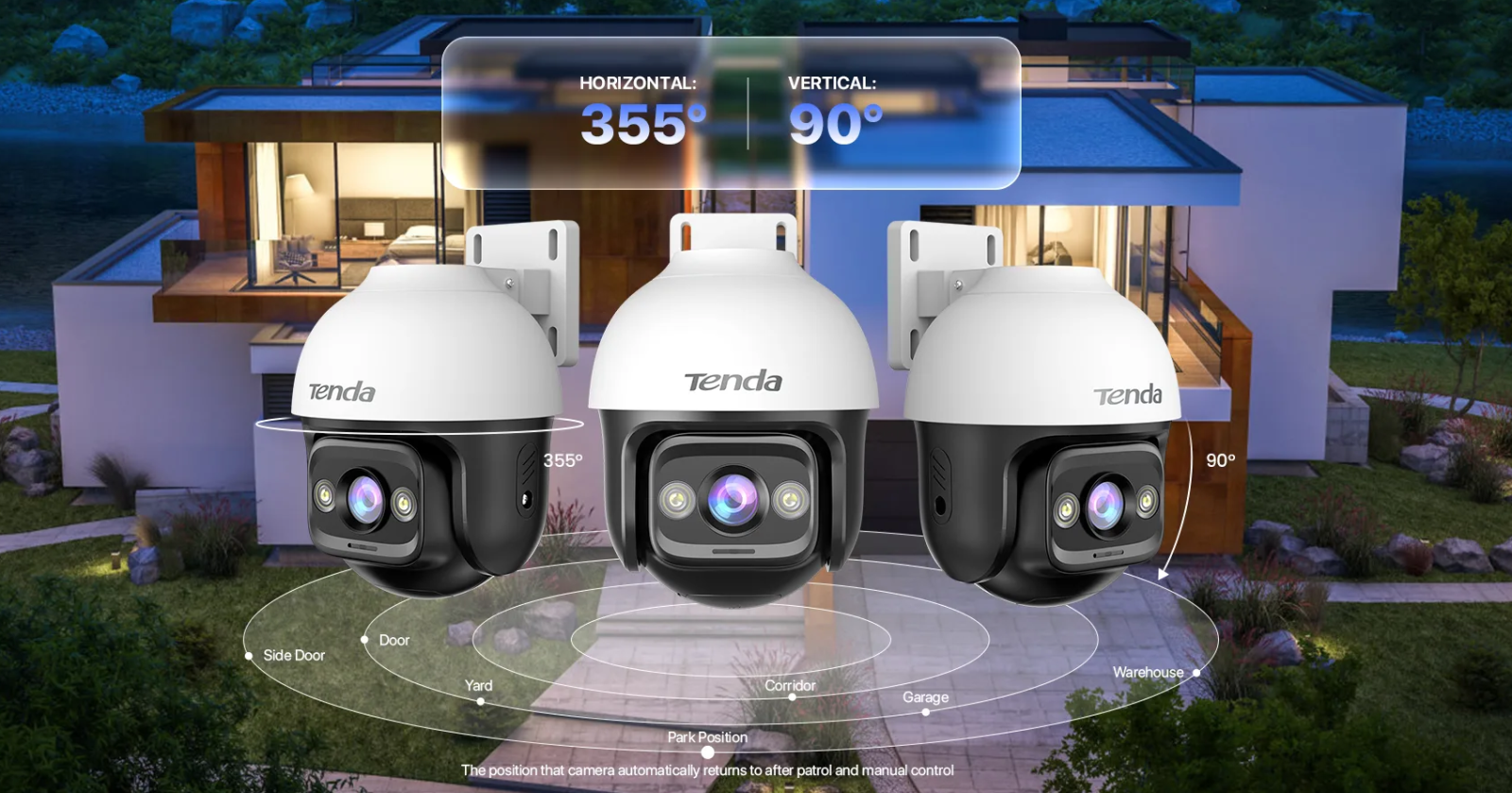

360° Panoramic Coverage Omnidirectional Protection

Being able to pan and tilt to take in a 360-degree field-of-view, providing all-around protection, you can adjust the angle through the TDSEE APP to view every corner in real time.

• Camera

  Image Sensor

  1/3 Progressive Scan CMOS sensor

  Day and Night

  ICR type

• Lens

  Focal Length

  4 mm

  Aperture

  F1.6

  FOV

  Horizontal FOV: 83.3°, Vertical FOV: 53.1°, Diagonal FOV: 91°

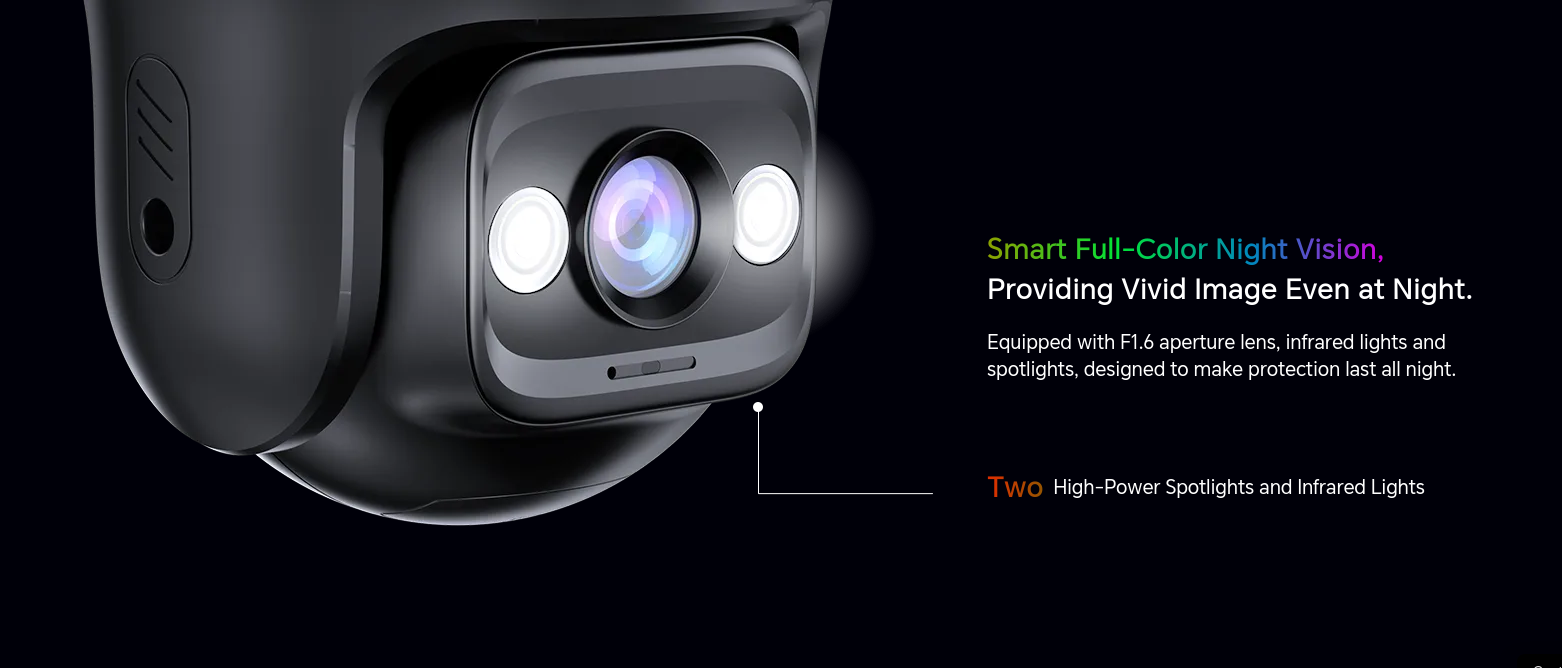

• Illuminator

  Supplementary Light

  2 IR Lights, 2 Spotlights

  Supplementary Light Distance

  Up to 30 m/100 ft (depending on environment)

  IR Wavelength

  850nm

  Night Vision Mode

  Smart Mode, Full Color Mode, Black & White Mode

• Video

  Video Encoding Format

  H.265, H.264

  Main Stream Resolution

  2304 ×1296, 1920 × 1080, 1280 × 720

  Sub Stream Resolution

  640 × 360, 352 × 288

  Frame Rate

  1-30fps, Default 20fps

  Bit Rate

  512kbps -- 4096kbps

  Bit Rate Control

  CBR,VBR

• Audio

  Audio Encoding Format

  G.711A, G.711U, AAC

  Audio Sampling Rate

  8 kHz

  Audio Communication

  Two-way Audio, Voice Input

• Image

  Image Enhancement

  DWDR, BLC, HLC, 3D DNR

  Privacy Mask

  CBR,VBR

• Network

  Ethernet Port

  1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

  ONVIF

  Support

  Protocols

  TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

  Web Browser

  Plug-in free live view: Chrome, Edge, Opera

• Pan&Tilt

  Pan Movement Range

  0°--355°

  Tilt Movement Range

  0°--90°

  Preset

  6

  Patrol

  Panoramic Patrol, Preset Patrol

• Wi-Fi

  Antenna

  Internal antenna

  Wireless Standard

  IEEE 802.11 b/g/n/ax

  Transmission Rate

  Up to 287Mbps

  Channel Width

  20/40 MHz

  Modulation

  DSSS/OFDM/OFDMA

  Frequency Band

  2.4GHz: 2412MHz-2472MHz(CH1-CH13)

  Transmit Power

  2.4GHz: <0.1W(EIRP)

  Security

  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Alarm

  Smart Detection

  Motion Detection, Tempering Detection, Human Detection, Vehicle Detection

  Smart Linkage

  Sound&light Alert, Human Tracking

  DIY Audio

  3 Customized Audios

• Interface

  Audio Input

  Built-in MIC, adjustable microphone volume

  Audio Output

  Built-in Speaker, 79 dBA (Alarm sound at 1 meter), adjustable sound level

  Storage

  Built-in Micro SD Card Slot, Up to 512 GB

  Reset Button

  Support

  LED Indicator

  Dual Color (red & blue)
  LED Indicator

• General

  Power

  12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug

  Material

  Plastic

  Smart Integration

  Amazon Alexa

  Product Dimension

  120mm x 120mm x 146mm (4.7'' × 4.7'' × 5.7'')

  Package Dimension

  167 mm x 131 mm x 251 mm (6.6'' × 5.2'' × 9.9'')

  Product Weight

  367g (0.81lb)

  With Package Weight

  860g (1.89lb)

  Protection Level

  IP65

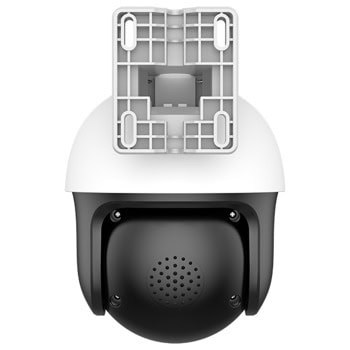

  Installation Method

  Wall Mounting, Ceiling Mounting, Pole Mounting

  Certification

  CE, RoHS, FCC, RCM, UKCA

  Temperature

  Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

  Humidity

  Operating Humidity: 10% ~ 95% RH (non-condensing)
  Storage Humidity: 3% ~ 95% RH (non-condensing)
