Контролер Synology E10M20-T1, от PCI-E x8 към 2x M.2, 1x 10GbE

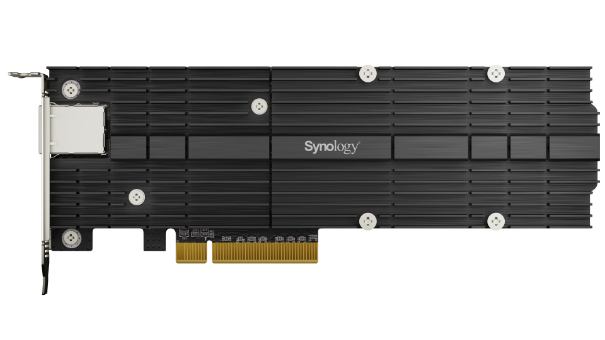

Synology E10M20-T1

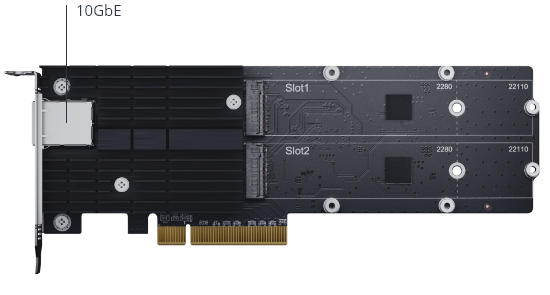

10GbE bandwidth and M.2 SSD cache, all at once

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.



Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.



Спецификации:

General	Host Bus Interface	PCIe 3.0 x8
	Bracket Height	Low Profile and Full Height
	Size (Height x Width x Depth)	71.75 mm x 200.05 mm x 17.70 mm
	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Storage	Storage Interface	PCIe NVMe
	Supported Form Factor	22110 / 2280
	Connector Type and Quantity	M-key, 2 Slots
Network	IEEE Specification Compliance	IEEE 802.3x Flow Control IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet IEEE 802.3an 10Gbps Ethernet
	Data Transfer Rates	10 Gbps
	Network Operation Mode	Full Duplex
	Supported Features	9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s TCP Segmentation Offload (TSO) Large Send Offload (LSO) Receive Side Scaling (RSS) Generic Receive Offload (GRO) Generic Segmentation Offload (GSO)
Compatibility
Applied Models	NVMe SSD	SA series:SA3600, SA3400, SA6400 23 series:RS2423RP+, RS2423+ 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
	Notes	DSM version requirement: 6.2.3-25426 or later version DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version
