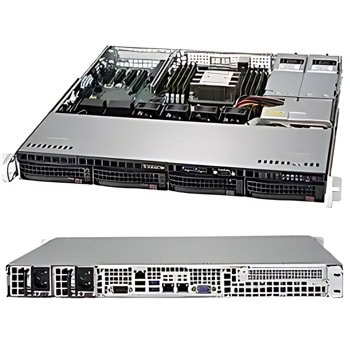

Key Features
- 1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
- 4 x 3.5" hot-swap SAS/SATA
- 1U 4-Port 12Gbps Backplane Support 4x3.5
- 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
- 1 full height expansion slot(s)
- 4 x 40x28mm PWM fan(s)
| Specification | Details |
|---|---|
| Chassis Type | 1U Rackmount |
| Motherboard Support | ATX 12" × 10", Micro-ATX 9.6" × 9.6" |
| CPU Compatibility | Dual and Single Intel® and AMD processors |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 19.85" (503 mm) |
| Gross Weight | 33.5 lbs (15.2 kg) |
| Packaging Dimensions (W × H × L) | 23.4" × 8.5" × 29.7" (594 × 216 × 754 mm) |
| Available Color | Black |
| PCIe Slots | 1 × Full-height expansion slot |
| Hot-Swap Bays | 4 × 3.5" SAS/SATA hot-swap bays |
| Backplane Type | 4-Port 1U 12Gbps backplane (4 × 3.5") |
| Optical Drive | Optional 1 × Slim DVD-ROM |
| Front I/O Tray | Optional 1 × USB + COM port tray |
| Buttons | Power On/Off, System Reset |
| LEDs | Power Status, HDD Activity, System Info, 2 × Network Activity |
| Fans | 4 × 40 × 28 mm PWM fans |
| Operating Temperature | 5°C – 35°C (41°F – 95°F) |
| Non-Operating Temperature | -40°C – 70°C (-40°F – 158°F) |
| Operating Humidity | 8% – 90% (non-condensing) |
| Non-Operating Humidity | 5% – 95% (non-condensing) |
| PSU Type | 1U 400W Redundant Platinum PSU with PMBUS |
| Power Efficiency | 94% |
| Input Voltage | 100–240Vac / 200–240Vdc |
| Input Frequency | 50–60 Hz |
| PSU Dimensions (L × W × H) | 220 × 54.5 × 40.25 mm |
| Output Type | Backplane (gold finger) |
| +12V Rail | Max 33A |
| +5Vsb Rail | Max 3A |
| Model | PDB-PT813M-2424 |
| Outputs | O/P: 120/62 |
| +5V Max Current | 25A |
| +3.3V Max Current | 25A |
| -12V Max Current | 0.6A |
