Name: Barebone сървър ASRock Rack 1U2N2G-AM5/2T, up to 1x AMD EPYC 4005/4004/AMD Ryzen 9000/8000/7000, 4x DDR5, без твърд диск, 2x 10GbE LAN, 2x USB 3.2 Gen 1, HDMI, VGA, без ОС, 1000W PSU, 1U
Brand: ASRock Rack
SKU: BRBSRASROCKRACK1U2N2GAM52T
Price: 3009.84 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

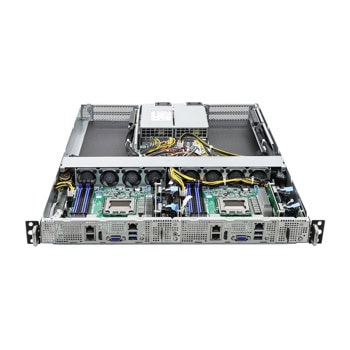

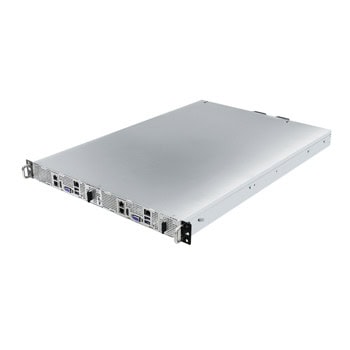

ASRock Rack 1U2N2G-AM5/2T

1U chassis with 2 nodes, 1+1 80-PLUS Platinum, 1600W CRPS
Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 FH dual-slot PCIe5.0 x16 per node
Supports 1 M.2 (PCIe4.0 x4) per node
2 RJ45 (10GbE) by Broadcom BCM57416 per node
Remote management (IPMI)

Specifications

System
Form Factor	1U Rackmount
Dimensions	650 x 438 x 43.5 mm (25.6'' x 17.2'' x 1.7'')
Support Motherboard	AM5D4ID-2T/BCM

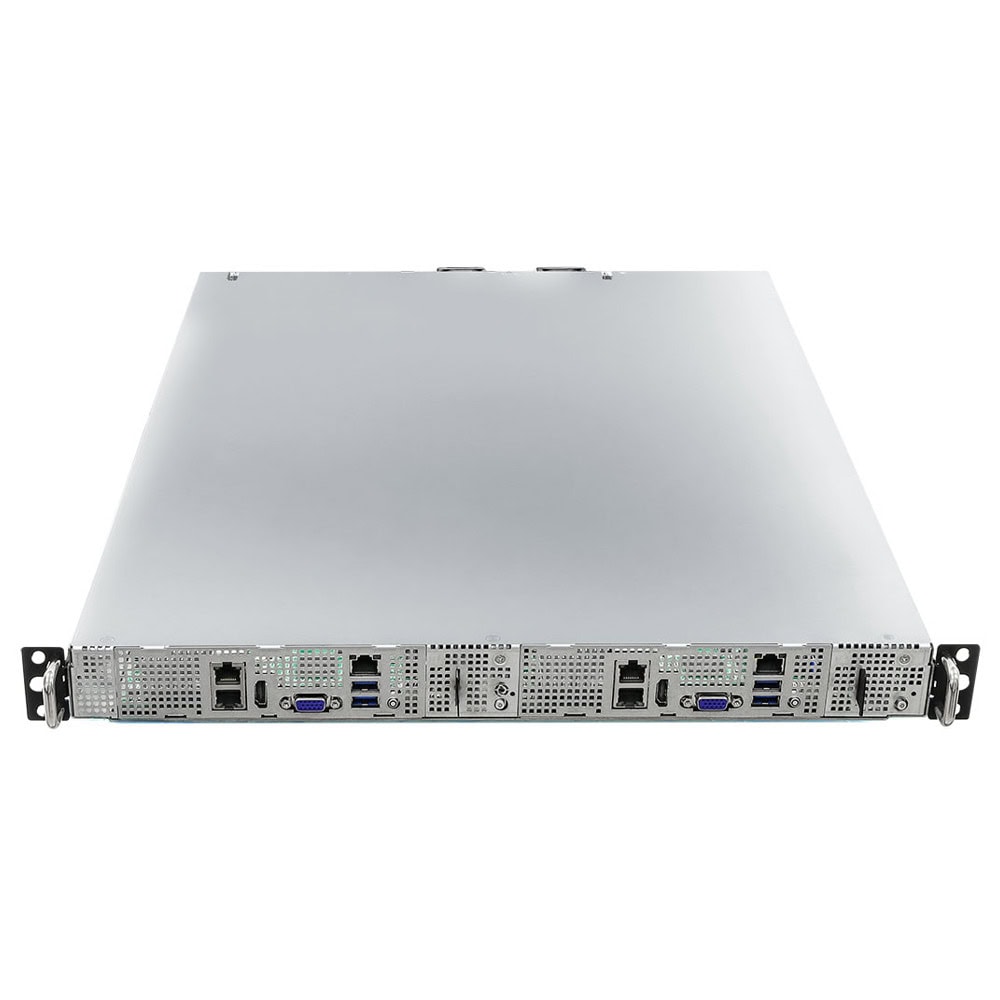

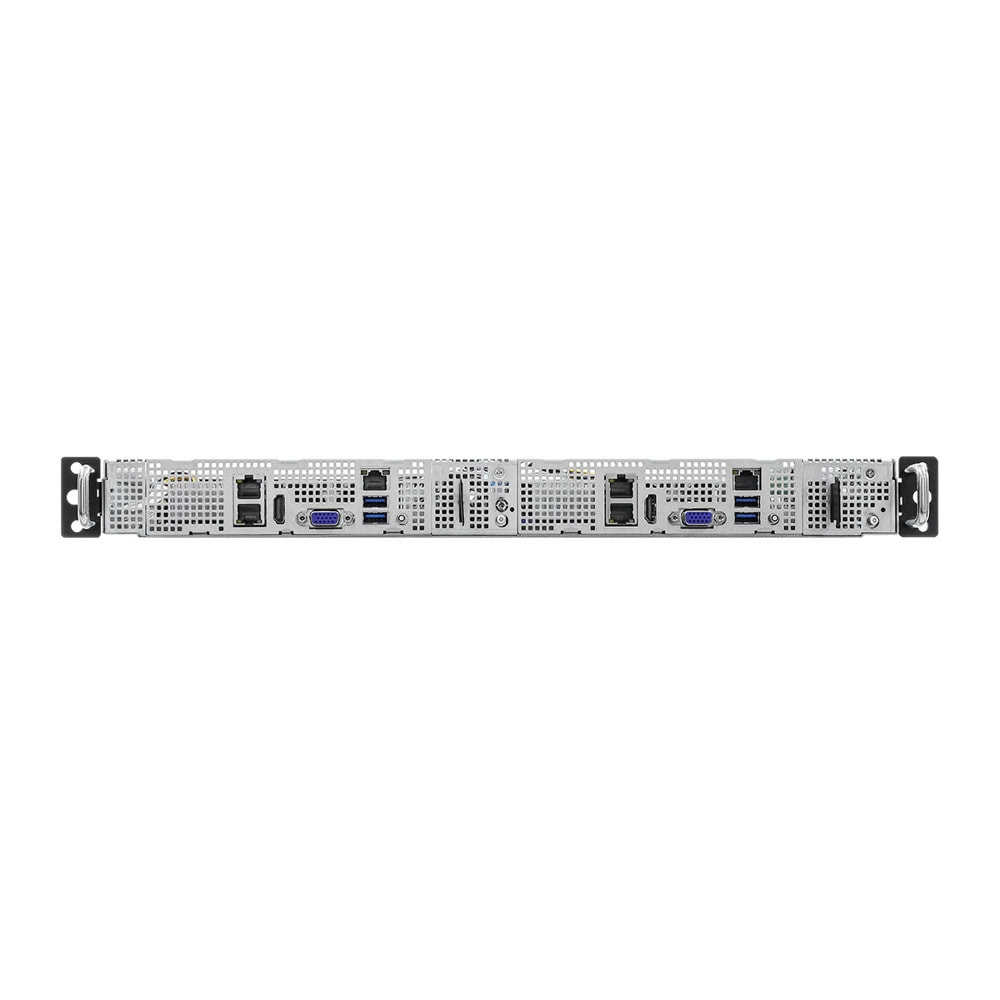

Front Panel
Buttons	UID w/LED, Power w/LED
LEDs	System Fail
I/O Ports	2 RJ45 (10GbE) by Broadcom BCM57416, 2 Type-A (USB3.2 Gen1), 1 DB15 (VGA), 1 HDMI
IPMI LAN	1 dedicated IPMI
External Drive Bay / Storage
Internal Side	1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU]
Power Supply
Type	1+1 CRPS
Output Watts	1000W @100-127Vac input / 1600W @200-240Vac input
Efficiency	80-PLUS Platinum
AC Input	Low-line: 100-127Vac, 60/50Hz; High-line: 200-240Vac, 60/50Hz
System Fan
Fan	8 PWM Hot-swap 40x56 mm fans
Processor System
CPU	Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
Socket	Single Socket AM5 (LGA 1718)
Thermal Design Power	Up to 120W
Chipset	KNOLL3 X300
System Memory
Supported DIMM Quantity	4 DIMM slots (2DPC)
Supported Type	DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM	48GB
Max. DIMM Frequency	5600 MHz (1DPC); 3600 MHz (2DPC)
Voltage	1.1V
PCIe Expansion Slots
PCIe x 16	1 FHFL dual-slot PCIe5.0 x16 or 2 FHFL single-slot PCIe5.0 x8 Support passive-cooling GPU card dimensions (L x W x H): 266.7 x 111.15 x 39.04 mm (GPU power connector on the east edge) *Please contact ASRock Rack for suggested active-cooling GPU card dimensions or further details.
Ethernet
Additional GbE Controller	Broadcom BCM57416: 2 RJ45 (10GbE)
Server Management
BMC Controller	ASPEED AST2600
IPMI Dedicated GLAN	1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller	ASPEED AST2600: 1 DB15 (VGA) AMD Processors with Graphics: 1 HDMI
System BIOS
BIOS Type	AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features	Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3
Hardware Monitor
Temperature	CPU, DDR, MB, Card Side
Fan	Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage	3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V
Supported OS
OS	Microsoft® Windows: Windows® 10 (64 bit) Windows® 11 (64 bit) Linux: UBuntu 22.04.2 (64 bit) * On the Windows® system, Raid mode supports UEFI Boot only. * The Linux system doesn't support Raid Mode.
