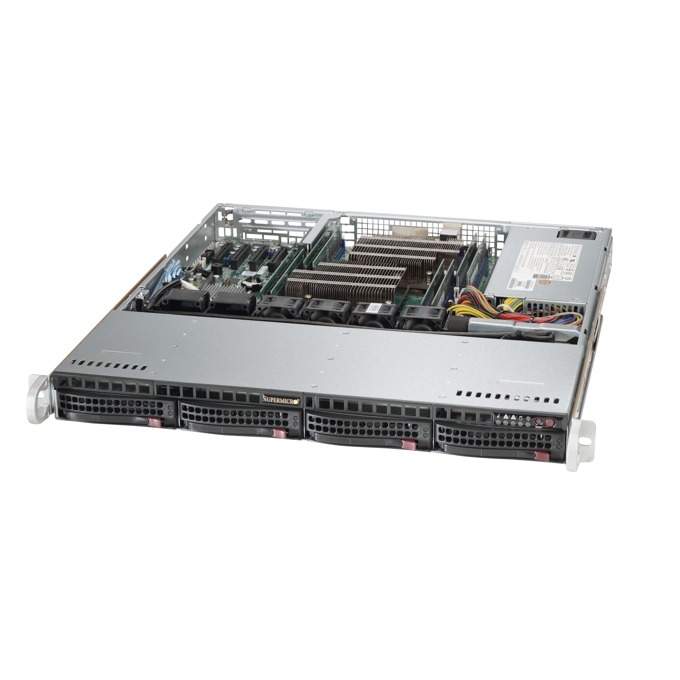

Barebone сървър SuperMicro SuperServer SYS-6018R-MTR, 8x DDR4, без твърд диск, 3x LAN, 9x USB, VGA, без ОС, 2x 400W, 1U

Specifications
Product SKUs
SYS-6018R-MTR
SuperServer 6018R-MTR (Black)

Motherboard
Super X10DRL-i

Processor/Cache
CPU
Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 135W TDP) *
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 22 Cores† / Up to 55MB† Cache
System Bus
QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors

On-Board Devices
Chipset
Intel® C612 chipset
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel® i210 Gigabit Ethernet controller
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC

Input / Output
SATA
4x SATA3 (6Gbps) ports
I-SATA 4 & I-SATA 5 support SATA DOM
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
4x USB 3.0 ports (2 rear, 2 headers)
5x USB 2.0 ports
(2 rear, 2 headers, 1 Type A)
Video
1x VGA port
Serial Port / Header
1x COM port (header)
DOM
2x SuperDOM (Disk on Module) ports

Management
Software
IPMI 2.0
Intel® Node Manager
SuperDoctor® 5
SSM
SPM
SUM
Watch Dog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
Chassis
Form Factor
1U Rackmount
Model
CSE-813MFTQ-R400CB

Dimensions and Weight
Width
17.2" (437mm)
Height
1.7" (43mm)
Depth
19.8" (503mm)
Package
23.4" (W) x 8.5" (H) x 29.7" (L)
Gross Weight
38 lbs (17.24 kg)
Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED

Expansion Slots
PCI-Express
1x PCI-E 3.0 x8 (FHHL) slot

Drive Bays
Hot-swap
4x 3.5" Hot-swap SATA3 Drive Bays

Backplane
SAS2/SATA3 Backplane

System Cooling
Fans
4x 4cm fans with optimal fan speed control

Power Supply
400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
AC Input
100-240V, 50-60Hz, 6-3A
DC Output
+5V standby: 3A
+12V: 33A
DC Output
With Power Distributor
+5V: 25A
+3.3V: 25A
-12V: 0.6A
Certification Gold Level Certified
Gold Certified

System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
