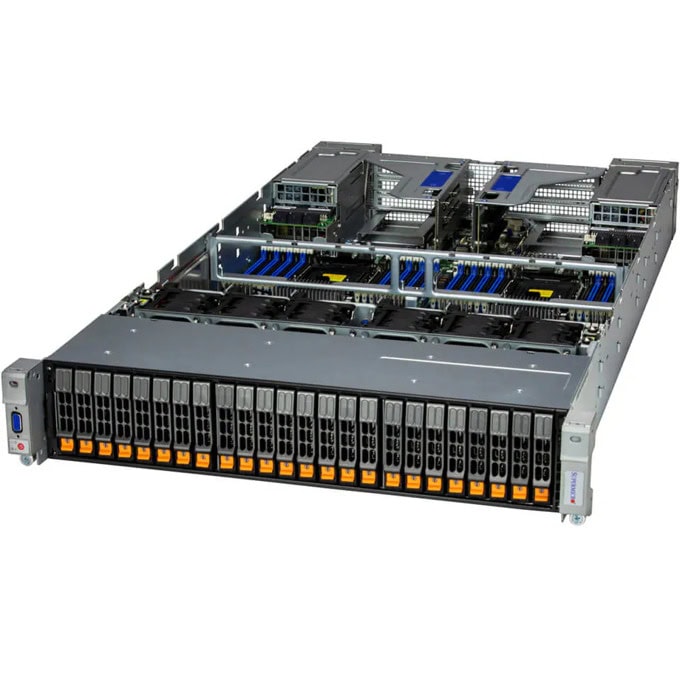

SYS-241E-TNRTTP
Key Applications
- Business Intelligence
- ERP, CRM
- Scientific Virtualization
- In-Memory Database
- HCI
- SAP HANA
- Artificial Intelligence
Key Features

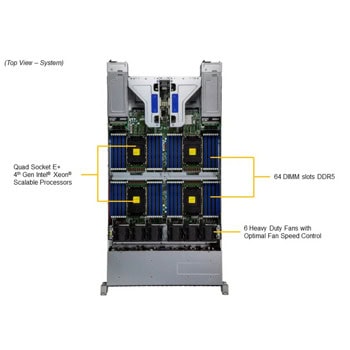

- Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
- 64 DIMM Slots; Up to 8TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
- Optional PCIe configurations up to 8 PCIe slots with support for two double-width GPU/Accelerator cards
- Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
- 24x 2.5" Hot-swap NVMe/SATA/SAS Hybrid Drive bays (Default with 8 SATA drive bays); 2x M.2 NVMe/SATA; Optional RAID support via storage add-on card
- 6 heavy duty fans w/ optimal fan speed control
Liquid cooling solution is available-please contact your Supermicro sales rep for more info.
| Specification | Details |
|---|---|
| Model | Supermicro X13QEH+ |
| Socket | Quad Socket E (LGA-4677) |
| Supported CPUs | 4th Gen Intel Xeon Scalable |
| TDP Support | 165W–250W (Air) / Up to 350W (Liquid) |
| Max GPU Count | Up to 2 double-width GPUs |
| Supported GPUs | NVIDIA PCIe (e.g., RTX A6000) |
| CPU-GPU Interconnect | PCIe 5.0 x16 |
| GPU-GPU Interconnect | PCIe |
| DIMM Slots | 64 slots |
| Max Memory | Up to 8TB DDR5 ECC RDIMM (2DPC) |
| Memory Voltage | 1.1V |
| Chipset | Intel C741 |
| Connectivity | Via AIOM / AOC modules |
| LAN | 1× RJ45 1GbE BMC LAN |
| USB | 2× USB 3.0 (rear), 2× USB 2.0 (front) |
| Video | 1× VGA, 1× DisplayPort |
| Serial | 1× COM (rear) |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Tools | SuperCloud Composer, SSM, SUM, SD5, SDO, TAS, SAA |
| Features | AC Power Recovery, ACPI Power Management |
| TPM | TPM 2.0 |
| Root of Trust | Silicon RoT (NIST 800-193) |
| Features | Secure Boot, Signed Firmware, Secure Updates, Auto Recovery, Remote Attestation, Runtime BMC Protection, System Lockdown |
| CPU Monitoring | Voltage regulators, CPU core/chipset/memory monitoring |
| Fan Monitoring | Tachometer, PWM control, speed status |
| Temperature Monitoring | CPU & chassis temperature monitoring |
| Model | CSE-218HTS-R3K2AWP |
| Form Factor | 2U Rackmount |
| Height | 3.5″ (87.9 mm) |
| Width | 17.3″ (438.4 mm) |
| Depth | 33.4″ (849.3 mm) |
| Package Size | 9.75″ H × 26.5″ W × 43.5″ D |
| Gross | 71.5 lbs (32.43 kg) |
| Net | 45.5 lbs (20.64 kg) |
| Available Color | Black |
| Buttons | Power, UID |
| LEDs | HDD, Network, Power, System Info (Overheat/UID) |
| Default PCIe | 3× PCIe 5.0 x8 FHHL, 3× PCIe 5.0 x16 FHHL, 1× PCIe 5.0 x8 AIOM, 1× PCIe 5.0 x16 AIOM |
| Option A | 2× PCIe 5.0 x16 FHFL (double-width), 2× PCIe 5.0 x16 FHHL, 1× PCIe 5.0 x8 AIOM, 1× PCIe 5.0 x16 AIOM |
| Default | 8× 2.5″ SATA hot-swap bays |
| Option A | 24× 2.5″ NVMe/SAS/SATA hot-swap bays |
| M.2 | 2× PCIe 3.0 x4 NVMe/SATA (2280/22110) |
| Fans | Up to 6× 6cm counter-rotating fans |
| Optional Fans | Up to 4× D2C cold plate fans |
| Air Shroud | 4 air shrouds |
| Liquid Cooling | Direct-to-Chip cold plate (optional) |
| PSU Count | 4× 1600W Redundant (2+2) |
| Efficiency | Titanium Level (96%) |
| Dimensions | 73.5 × 40 × 203 mm |
| Input | 100–127V (1000W) / 200–240V (1600W), 50–60Hz |
| +12V Output | Up to 133A (200–240V) |
| 12VSB | Max 2.1A |
| Output Type | Backplane gold finger |
