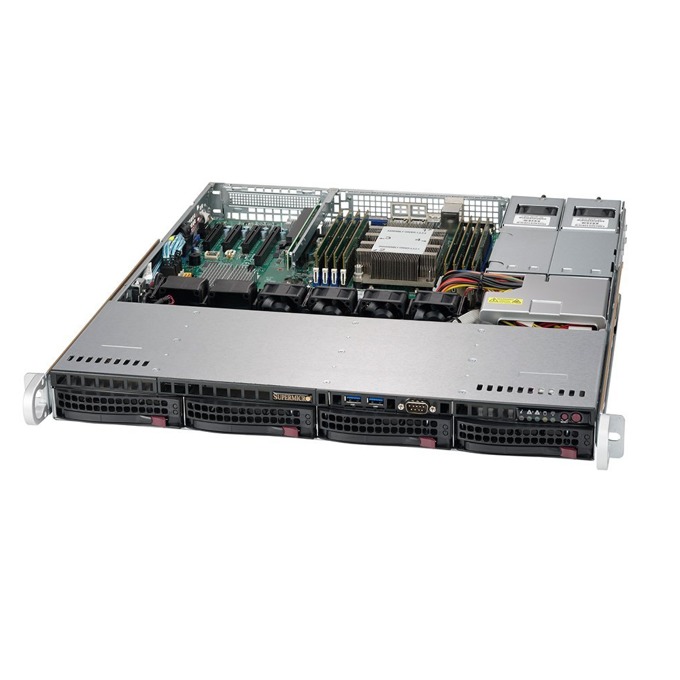

Barebone сървър SuperMicro SuperServer AS-1013S-MTR, 8x DDR4, без твърд диск, 3x LAN, 9x USB, VGA, без ОС, 2x 400W, 1U

Specifications
Product SKUs
AS -1013S-MTR
A+ Server 1013S-MTR
Motherboard
H11SSL-i
Processor/Chipset
CPU
Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
Socket SP3
Supports CPU TDP 225W / cTDP up to 240W*
Cores
Up to 32 Cores (Board revision 1.x + 7001 Processors)
Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
System on Chip (SoC)
System Memory
Memory Capacity
8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus
Memory Type
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Intel® I210 Controller
VGA
ASPEED AST2500 BMC
Expansion Slots
PCI Express
1 PCI-E 3.0 x16 (FH/HL) slot
M.2
Interface: PCI-E 3.0 x4 (NVMe based)
Form Factor: 2280, 22110
Key: Onbard M-key
Number of M.2: Single
Input / Output
SATA
4 SATA3 (6 Gbps) ports
LAN
2x 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4 USB 2.0 ports (2 rear, 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header
System BIOS
BIOS Type
AMI 128Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Chassis
Form Factor
1U
Model
CSE-813MFTQC-R407CB
Dimensions
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
19.85" (503mm)
Weight
Net Weight: 20 lbs (9.1 kg)
Gross Weight: 33 lbs (15.0 kg)
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Drive Bays
Hot-swap
4 hot-swap 3.5" SATA3 drive bays
Peripheral Drives
Optional
Optional 2.5" drive adapter
Optional slim DVD drive
Backplane
HDD Backplane
Supports 4 SATA3 3.5" HDD
System Cooling
Fans
4x 40x28mm 4-pin PWM Cooling Fans
Air Shroud
1 Air Shroud
AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power
400W
Dimension
(W x H x L)
54.5 x 40 x 220 mm
Input
100 - 240Vac / 6.0 - 3.0A / 50-60Hz
200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V
Max: 33A / Min: 0.5A
+5V sb
Max: 3A / Min: 0A
Output Type
Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
Platinum Level Certified
[ Test Report ]
PC Health Monitoring
CPU
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator
FAN
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I²C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
