Product SKUs
SYS-7049GP-TRT
SuperServer 7049GP-TRT (Black)
Motherboard
Super X11DPG-QT
Processor/Cache
CPU
Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores
Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
GPU Support
Please refer to: Compatible GPU list
System Memory
Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††
Memory Type
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
Intel® C621 chipset
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
Intel® X550 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2500 BMC
Input / Output
SATA
10 SATA3 (6Gbps) ports
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
4 USB 2.0 ports (2 rear, 2 via headers)
Video
1 VGA port
Audio
7.1 HD Jacks
Serial Port/Header
2 COM ports (1 rear, 1 Header)
System BIOS
BIOS Type
AMI 32Mb SPI Flash ROM
Management
Software
Intel® Node Manager
IPMI 2.0
SSM, SPM, SUM
SuperDoctor® 5
PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
4U Rackmountable / Tower
Optional Rackmount Kit
Model
CSE-747BTS-R2K20BP
Dimensions and Weight
Height
18.2" (462mm)
Width
7.0" (178mm)
Depth
26.5" (673mm)
Package
27" (H) x 13" (W) x 38" (D)
Weight
Net Weight: 46 lbs (20.9 kg)
Gross Weight: 62 lbs (28.1 kg)
Available Colors
Dark Gray
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat & Power Fail LED
Ports
2 Front USB 3.0 Ports
Expansion Slots
PCI-Express
4 PCI-E 3.0 x16 (double-width) slots
2 PCI-E 3.0 x16 (single-width) slots
1 PCI-E 3.0 x4 (in x8 slot)
Drive Bays / Storage
Hot-swap

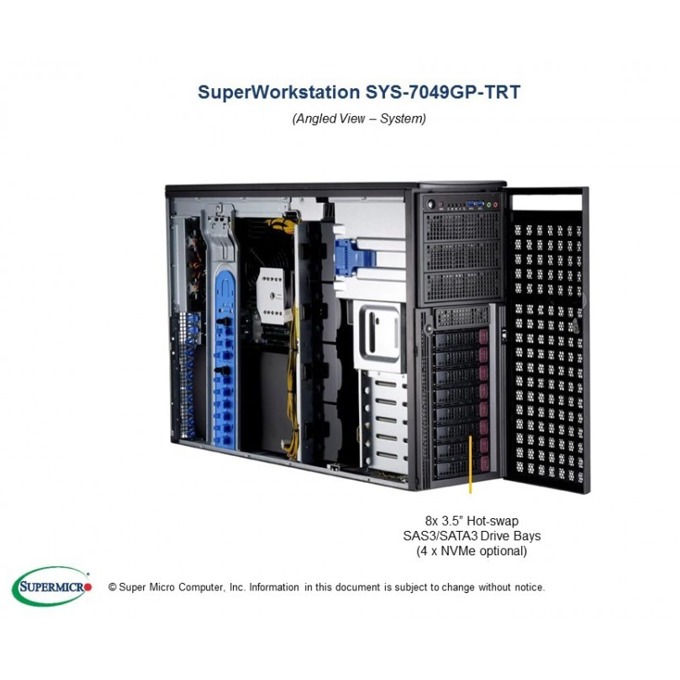

8 Hot-swap 3.5" drive bays
Optional 4x 2.5" NVMe supported
M.2
1 NVMe based M.2 SSD
Form Factors: 2280, 22110
System Cooling
Fans
4 Heavy duty fans
2 Rear exhaust fans
2 Optional Rear fans (required for Passive GPUs)
Heatsink
2 Active heatsink with optimal fan speed control
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
1200W with Input 100-127Vac
1800W with Input 200-220Vac
1980W with Input 220-230Vac
2090W with Input 230-240Vac
2200W with Input 220-240Vac (for UL/cUL use only)
2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
50-60Hz
Dimension
(W x H x L)
76 x 40 x 336 mm
+12V
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 183.3A / Min: 0A (220-240Vac)
5VSB
Max: 1A / Min: 0A
Output Type
Backplanes (gold finger)
Certification Titanium Level96% Titanium Level
[ Test Report ]
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
