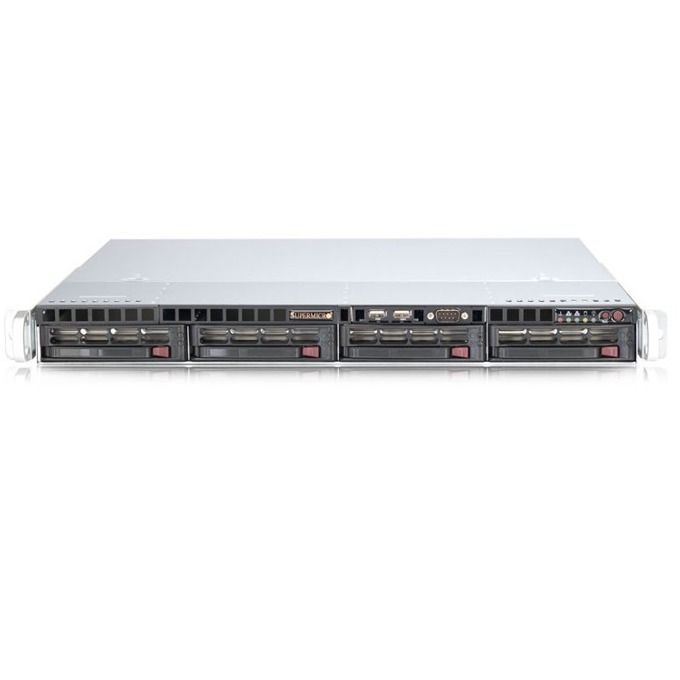

Barebone сървър SuperMicro SuperServer 6017B-MTLF, DDR3, без твърд диск, 2x LAN, 7x USB, VGA, без ОС, 1U

Supermicro SuperServer 6017B-MTLF | SYS-6017B-MTLF

BIOS
BIOS ACPI 4.0
BIOS memory size 8 MB
BIOS type AMI

Design
Colour of product Black
Form factor 1U
LED indicators HDD, LAN, Power, Status

Expansion slots
PCI Express slots version 3.0
PCI Express x16 slots 1

Memory
ECC Y
Maximum internal memory 192 GB
Maximum RDIMM memory 192 GB
Maximum UDIMM memory 48 GB
Memory form factor 240-pin DIMM
Memory voltage 1.35,1.5 V
Non-ECC N
Number of DIMM slots 6
Supported DIMM module capacities 16GB, 1GB, 2GB, 32GB, 4GB, 8GB
Supported memory types DDR3-SDRAM
Supported RDIMM clock speeds 800,1066,1333,1600 MHz

Networking
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000 Mbit/s
LAN controller Intel 82574L, Realtek RTL8201F
Networking features Gigabit Ethernet

Operational conditions
Operating relative humidity (H-H) 8 - 90%
Operating temperature (T-T) 10 - 35 °C
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C

Other features
Graphics adapter G200eW
Graphics adapter family Matrox
Power LED Y

Performance
Intelligent Platform Management Interface (IPMI) support Y

Ports & interfaces
Ethernet LAN (RJ-45) ports 2
IPMI LAN (RJ-45) port Y
USB 2.0 ports quantity 7
VGA (D-Sub) ports quantity 1

Power
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply 350 W
Redundant power supply (RPS) support Y

Processor
Compatible processor series Xeon
Intel Xeon series E5-2400
Motherboard chipset Intel C602
Number of processors supported 2
Processor family Intel
Processor socket Socket B2 (LGA 1356)
System bus rate 8 GT/s

Storage
Hot-swap hard drive bays Y
Number of hard drives supported 4
RAID levels 0, 1, 5, 10
Supported hard disk drive sizes 3.5"
Supported storage drive interfaces Serial ATA II, Serial ATA III

Weight & dimensions
Depth 503 mm
Height 43 mm
Weight 18.1 kg
Width 437 mm
