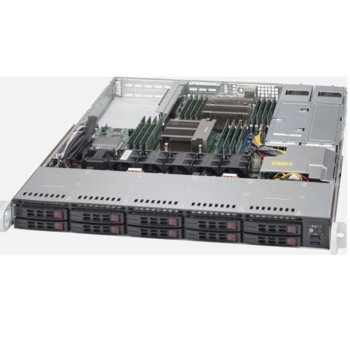

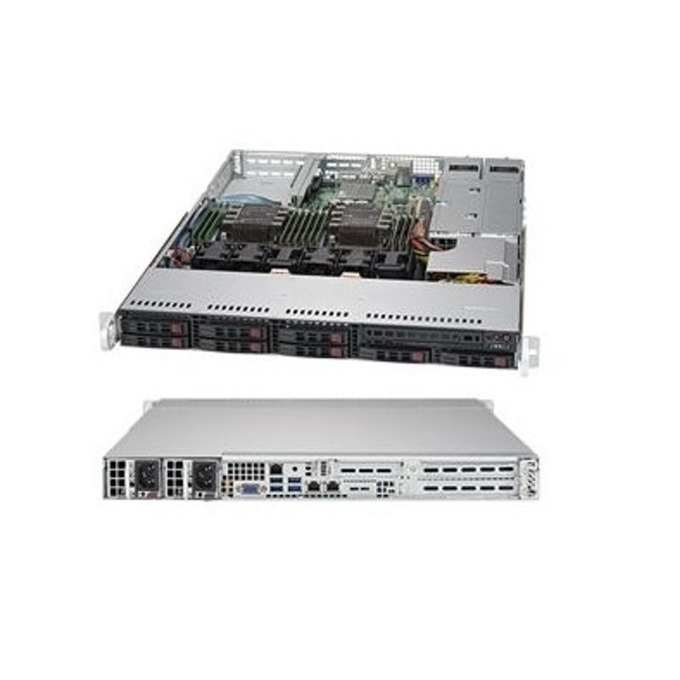

Barebone сървър SuperMicro SuperServer 1029P-WTR, 12x DDR4, без твърд диск, 3x LAN, 4x USB, VGA, без ОС, 2x 700W, 1U

Specifications
Product SKUs
SYS-1029P-WTR
SuperServer 1029P-WTR (Black)

Motherboard
Super X11DDW-L

Processor/Cache
CPU
Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W*
Cores
Up to 28 Cores
Note * Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244 and 6246.
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory
Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††
Memory Type
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
Intel® C621 chipset
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
Dual LAN with Gigabit Ethernet from C621
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC

Input / Output
SATA
8 SATA3 (6 Gbps) ports
LAN
2 RJ45 Gigabit Ethernet ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.0 ports (rear)
Video
1 VGA port
DOM
2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
AMI 32Mb SPI Flash ROM

Management
Software
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI / APM Power Management

PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
1U Rackmount
Model
CSE-113AC2-R706WB2

Dimensions and Weight
Width
17.2" (437mm)
Height
1.7" (43mm)
Depth
23.5" (597mm)
Gross Weight
46 lbs (20.9kg)
Available Colors
Black

Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED

Expansion Slots
PCI-Express
2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x8 (LP) slot
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E 3.0 x4 NVMe M.2 slot

Drive Bays
Hot-swap
8 Hot-swap 2.5" SAS/SATA drive bays
Peripheral
1 Slim DVD-ROM drive bay (optional)

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC

AC/DC240V Input Redundant Power Supply
700W/750W Redundant Power Supplies with PMBus
Total Output Power
700W/750W
Dimension
(W x H x L)
54.5 x 40.25 x 320 mm
Input
100 - 140Vac / 8 - 6A / 50-60Hz
200 - 240Vac / 4.5 - 3.8A / 50-60Hz
200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V
Max: 58A / Min: 0.5A (100 - 140Vac)
Max: 62A / Min: 0.5A (200 - 240Vac)
Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)
+5V sb
Max: 3A / Min: 0A
Output Type
Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
Platinum Certified


Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)f
