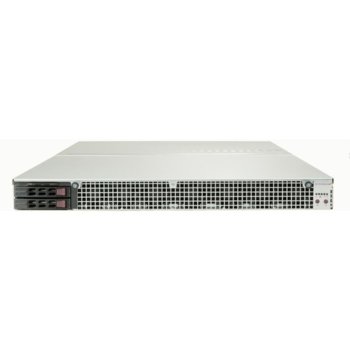

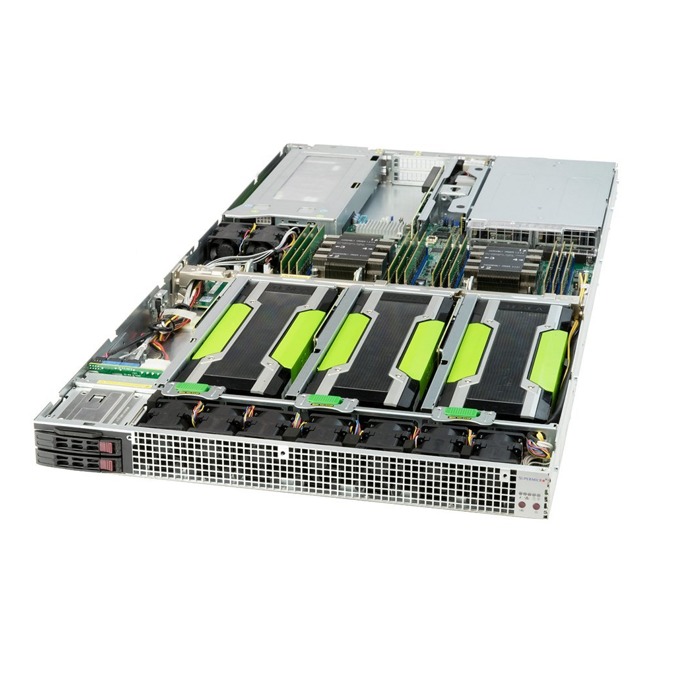

Barebone сървър SuperMicro SuperServer 1029GQ-TRT, 12x DDR4, без твърд диск, 2x LAN, 2x USB, VGA, без ОС, 1U

Specifications
Product SKUs
SYS-1029GQ-TRT
SuperServer 1029GQ-TRT (Black)

Motherboard
Super X11DGQ

Processor/Cache
CPU
Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s
Support CPU TDP up to 165W
Cores
Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.
GPU Support
Please refer to: Compatible GPU list

System Memory
Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††
Memory Type
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
Intel® C621 chipset
SATA
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity
Intel® X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2500 BMC

Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
Video
1 VGA port
Serial Header
1 Fast UART 16550 header

System BIOS
BIOS Type
AMI 32Mb SPI Flash ROM

Management
Software
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI / APM Power Management

PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
1U Rackmount
Model
CSE-118GQETS-R2K05P2

Dimensions and Weight
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
35.2" (894mm)
39.3" (997mm) with rails
Package
24" (H) x 8" (W) x 46" (D)
Weight
Net Weight: 45 lbs (20.4 kg)
Gross Weight: 58 lbs (26.31 kg)
Available Color
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Expansion Slots
PCI-Express
4 PCI-E 3.0 x16 (FHFL) slots
2 PCI-E 3.0 x16 (LP) slots

Drive Bays
Hot-swap
2 Hot-swap 2.5" SAS/SATA drive bays
Fixed
2 Internal 2.5" SATA drive bays
M.2
Support 1x M.2 2242/2260/2280
Support M.2 SATA and NVMe

System Cooling
Fans
9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
1000W: 100 – 120Vac
1800W: 200 – 220Vac
1980W: 220 – 230Vac
2000W: 230 – 240Vac
2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
73.5 x 40 x 265 mm
Input
100-120Vac / 12.5-9.5A / 50-60Hz
200-220Vac / 10-9.5A / 50-60Hz
220-230Vac / 10-9.8A / 50-60Hz
230-240Vac / 10-9.8A / 50-60Hz
200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
Max: 83.3A / Min: 0A (100-120Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 166.7A / Min: 0A (230-240Vac)
Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
Max: 2.1A / Min: 0A
Output Type
25 Pairs Gold Finger Connector
Certification Titanium Level96% Titanium Level

Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
