Name: Barebone сървър SuperMicro Storage SuperServer SSG-521E-E1CR24H, 16x DDR5, без твърд диск, 1x LAN, 2x USB, VGA, без ОС, 2U
Brand: Supermicro
SKU: BRBSRSUPERMICROSSG521EE1CR24H
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Storage SuperServer SSG-521E-E1CR24H

Key Applications

Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks

Key Features

Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processor. Up to 300W TDP.
16 ECC DDR5-5600: LRDIMM/RDIMM
Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller by default)
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node

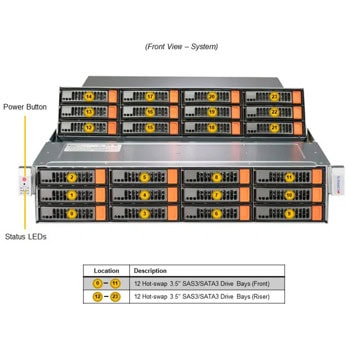

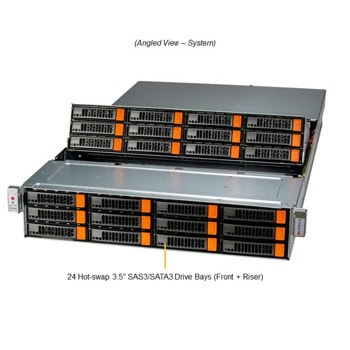

24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280)
4x 8cm hot-swap counter-rotate redundant PWM cooling fans
1600W Redundant Power Supplies Titanium Level (96%)
HW RAID support via Broadcom® 3908

Subcategory	Specification
Model	Super X13SEDW-F
CPU	Single Socket E (LGA-4677), 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 180MB Cache
Note	Supports 120W - 300W TDP CPUs (Air Cooled)
Memory	Slot Count: 16 DIMM slots; Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
Chipset	Intel® C741
Network Connectivity	Via AIOM
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports
BIOS Type	AMI 32MB SPI Flash EEPROM
Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!
Power Configurations	Power-on mode for AC power recovery; ACPI Power Management
Hardware	Trusted Platform Module (TPM) 2.0; Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware; Secure Boot; Secure Firmware Updates; Automatic Firmware Recovery; Supply Chain Security: Remote Attestation; Runtime BMC Protections; System Lockdown
CPU	7 Phase-switching voltage regulator; Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring; PWM fan connectors; Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment; Thermal Control for fan connectors
Form Factor	2U Rackmount
Model	CSE-826S3TS-R1K62P1
Height	3.5"
Width	17.2"
Depth	34"
Package	12" (H) x 29" (W) x 52" (D)
Weight	Gross: 74.5 lbs (33.79 kg); Net: 52 lbs (23.59 kg)
Available Color	Silver
Buttons	Power On/Off
LED	Network activity; Power status; SSD activity; System information (overheat/UID)

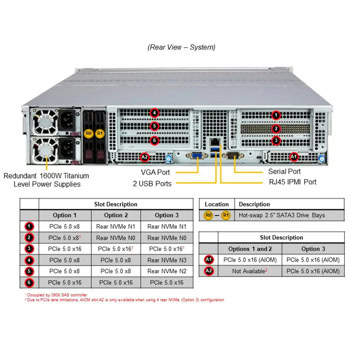

PCI-Express (PCIe) Configuration	Default: 4 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible); Option A2: 2 PCIe 5.0 x16 FHHL slots; Option B2: 2 PCIe 5.0 x16 AIOM slots
Drive Bays Configuration	Default: 26 bays (12 front hot-swap 3.5" SAS/SATA, 12 top-loading hot-swap 3.5" SAS/SATA, 2 rear hot-swap 2.5" SATA); Option A: 28 bays; Option B: 30 bays
M.2	2 M.2 NVMe/SATA slots (M-key 2280/22110)
Fans	Up to 4 Heavy Duty 8cm Fans
Air Shroud	1 Air Shroud
Type & Redundancy	2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimensions (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac / 50-60Hz; 1600W: 200-240Vac / 50-60Hz
+12V Max	83A / Min: 0A (100-127Vac); Max: 133A / Min: 0A (200-240Vac)
12V SB Max	2.1A / Min: 0A
Output Type	Backplanes (gold finger)

Виж още Barebone Сървъри Supermicro
Виж всички Barebone Сървъри в категорията

Технически характеристики

Формфактор:	Rack-Mountable
Брой процесори:	1
