Server SuperMicro SSG-6027R-E1R12N, 2U, поддържа 2x Xeon E5-2600, ECC DDR3

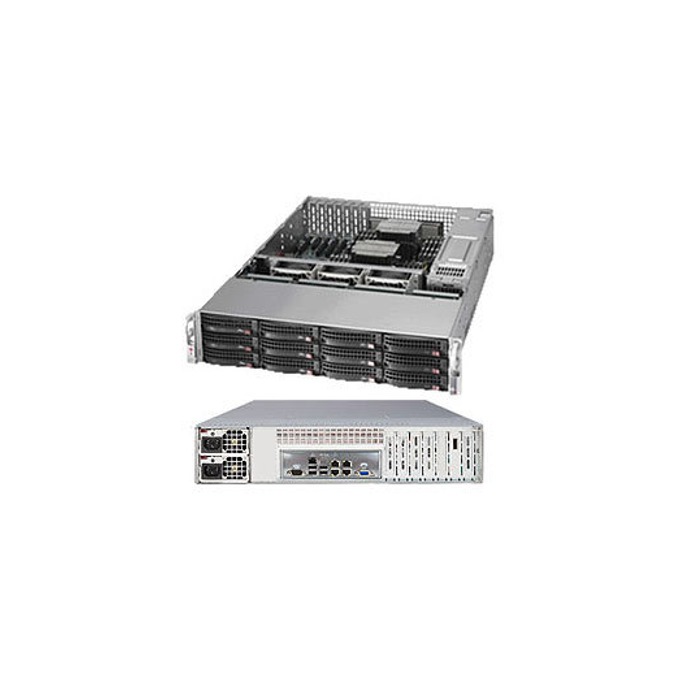

SUPERMICRO SuperStorage Server 6027R-E1R12N

• Product SKUs
SSG-6027R-E1R12N SuperServer 6027R-E1R12N (Black)

• Motherboard
Super X9DRi-LN4F+

• Processor/Cache
CPU Intel® Xeon® processor E5-2600 (up to 130W TDP) Dual Socket R (LGA 2011)
Cache Up to 20MB
System Bus QPI up to 8 GT/s

• System Memory
Memory Capacity
24x 240-pin DDR3 DIMM sockets
Supports up to 768 GB DDR3 ECC Registered memory (RDIMM) in 24 DIMM sockets
Supports up to 192 GB DDR3 ECC Un-Buffered memory (UDIMM) in 24 DIMM sockets
Memory Type 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V, 1.35 V
Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)

• On-Board Devices
Chipset Intel® C602 Chipset
SATA SATA 2.0 3Gbps with RAID 0, 1, 5, 10, SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS AOC LSI 2108 SAS2 RAID AOC (BBU optional), Hardware RAID 0, 1, 5, 6, 10, 50, 60
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers
Intel® i350 Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics Matrox G200eW

• Input / Output
Serial ATA 2x SATA 3.0 ports (6Gbps), 8x SATA 2.0 ports (3Gbps)
LAN 4x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port
JBOD 1x JBOD Expansion Ports
USB 9x USB 2.0 ports total,(4x rear + 4x via header + 1x Type A)
VGA 1x VGA port
Serial Port / Header 1x Fast UART 16550 port / 1 Header

• Chassis
Form Factor 2U Rackmount
Model CSE-826BE16-R920LPB

• Dimensions
Width 17.2" (437mm)
Height 3.5" (89mm)t
Depth 25.5" (648mm)
Gross Weight 61 lbs (27.7 kg)

• Front Panel
Buttons Power On/Off button, System Reset button
LEDs
Power status LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED

• Expansion Slots
PCI-Express 3x PCI-E 3.0 x16 slots (Low-profile), 1x PCI-E 3.0 x8 slot (Low-profile)

• Drive Bays
Hot-swap 12x Hot-swap 3.5" SAS / SATA HDD trays
Optional OS Drive No rear Hot-swap Drive Bay, SATA DOM Recommended

• Backplane
SAS2 / SATA3 backplane

• System Cooling
Fans 3x 8cm 9.5K RPM, 4-pin PWM fans

• Power Supply with Power Distributor
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output 4 Amp @ +5V standby, 75 Amp @ +12V
With Power Distributor +5V: 45 Amp, +3.3V: 24 Amp, -12V: 0.6 Amp

• Certification
80PLUS Platinum Certified

• System BIOS
128Mb SPI Flash EEPROM with AMI BIOS
Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI
