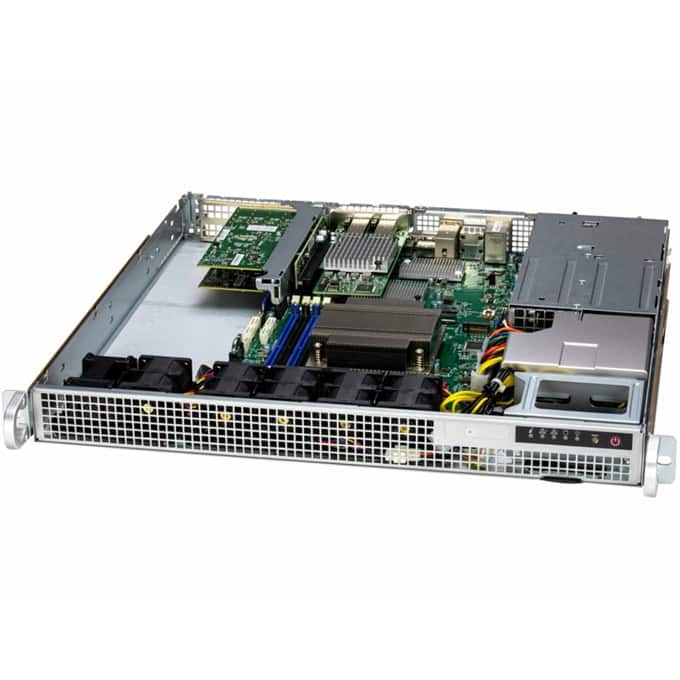

Supermicro IoT SuperServer SYS-111AD-WRN2

Key Applications

Virtualization
Firewall Applications
Edge/Cloud Computing Services
CDN/vCDN/Cloud CDN
VRAN/ORAN for Telecom

Key Features

Intel® 14th/13th/12th Gen Core i9/i7/i5/i3 (ADL/RPL-S) Processor in LGA1700 Socket with R680E Chipset
4 DIMM slots, DDR5-4400MHz memory, support up to 128GB
1x dedicated IPMI LAN, 2x 2.5GbE BaseT LAN ports via Intel® I226 Controller
800W 100-240Vac Platinum Single Power Supply (can be upgraded to redundant power supply)

Here’s a fully merged, standard-format table summarizing all the information you provided in one clean table. I organized it by category, with each key spec clearly labeled:

Specification	Details / Notes
Model	Super X13SAW-F
Socket	Single LGA-1700
Supported CPUs	14th / 13th / 12th Gen Intel® Core™ i9/i7/i5/i3 Processors
Note	Supports up to 80W TDP CPUs (Air Cooled)
Max GPU Count	1 double-width or 1 single-width GPU
Supported GPU	NVIDIA PCIe: L4, RTX A2000, T1000
Slot Count	4 DIMM slots
Max Memory	Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage	1.1V
Chipset	Intel® R680E
Network Connectivity	2 RJ45 2.5GbE with Intel® I226
LAN	1 RJ45 1 GbE Dedicated BMC LAN port; 2 RJ45 2.5 GbE LAN ports (Intel® I226)
USB	2 ports
Video	1 VGA port; 2 DisplayPort 1.4a ports
BIOS Type	AMI 32MB SPI Flash
BIOS Features	Plug and Play (PnP), ACPI 6.5, SMBIOS 3.6 or later, UEFI 2.8, USB Keyboard support
Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!
Power Configurations	800W 100-240Vac Platinum Single Power Supply (upgradeable to redundant)
Hardware	TPM 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown
Temperature	PECI 3.0 support, SuperDoctor® 5, System resource alert via SuperDoctor®5
Form Factor	1U
Model	CSE-514-R00RWNP
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	16.9" (429 mm)
Package	8" (H) x 27" (W) x 24" (D)
Weight	Gross: 25.2 lbs (11.43 kg); Net: 15.5 lbs (7.03 kg)
Available Color	No Paint
Buttons	Power On/Off, System Reset
LEDs	Fan Fail / System Overheat, HDD activity, Network Activity, Power status
PCIe Configuration	Default: 2 PCIe 5.0 x8 FHFL slots, 1 PCIe 4.0 x4 LP slot; Option A1: PCIe 5.0 x16 FHFL double-width slot, 1 PCIe 4.0 x4 HHHL slot
Drive Bays	Default: 2 internal fixed 2.5" NVMe/SAS/SATA bays
M.2 Slots	2 M.2 NVMe slots (M-key 2280/22110), 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280), 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
Fans	Up to 5 heavy-duty counter-rotating 4cm fans
Air Shroud	1 Air Shroud
Wattage	1x 800W, 1x 800W Redundant Platinum Level (94%)
Dimensions	54.5 x 40.25 x 220 mm
Input	750W: 100-127Vac / 50-60Hz, 800W: 200-240Vac / 50-60Hz, 800W: 230-240Vdc / 50-60Hz
Output	+12V Max: 62.5A / Min: 0.5A (100-127Vac), Max: 66.6A / Min: 0.5A (200-240Vac), Max: 66.6A / Min: 0.5A (230-240Vdc); 5V SB Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
