Name: Barebone сървър SuperMicro CloudDC SuperServer SYS-112C-TN, 16x DDR5, без твърд диск, 1x 1GbE LAN, 2x USB 3.2 Gen 1, Mini-DP, без ОС, 1U
Brand: Supermicro
SKU: BRBSRSUPERMICROSYS112CTN
Price: 3064.34 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

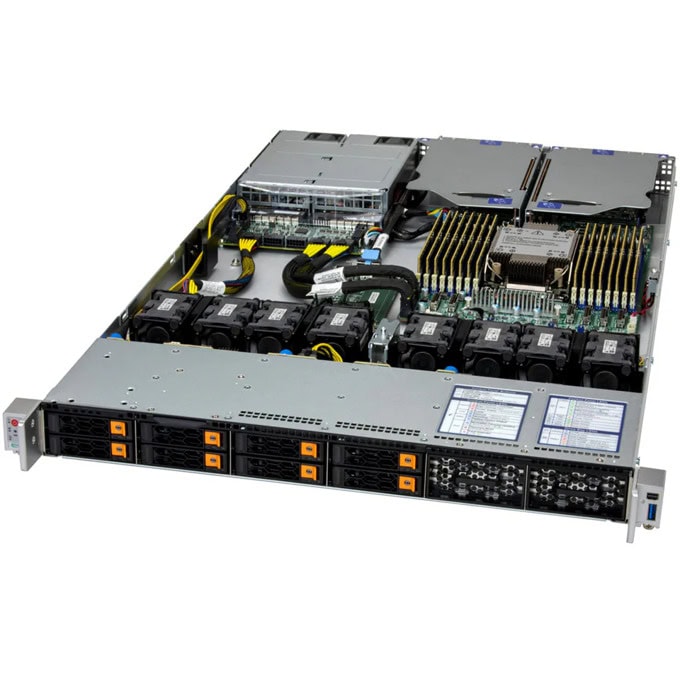

CloudDC SuperServer SYS-112C-TN

Key Applications

Virtualization
HPC
CDN, Edge Nodes
Cloud Computing
Data Center Optimized
Storage Headnode

Key Features

All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)
Support DC-SCM module with OpenBMC
Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
16 DIMM slots supporting DDR5 RDIMM(2DPC/1DPC) or MRDIMM(1DPC)
Support FH DPU and single slot GPU
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support
Trusted Platform Module (TPM) 2.0 9672 onboard

Category	Specification
Motherboard Model	Supermicro X14SBHM
CPU Socket	Single Socket E2 (LGA-4710)
Supported Processors	Intel Xeon 6700/6500 series (P-cores) / Xeon 6700 series (E-cores)
Core Count	P-cores: Up to 86C/172T, 336MB Cache; E-cores: Up to 144C/144T, 108MB Cache
CPU TDP Support	Up to 350W (Air cooled)
Max GPU Count	Up to 2 single-width GPUs
Supported GPU	NVIDIA PCIe L4
CPU–GPU Interconnect	PCIe 5.0 x16
Memory Slots	16 DIMM slots, 8 Channels
Max Memory (1DPC RDIMM)	Up to 2TB DDR5-6400 ECC
Max Memory (1DPC MRDIMM)	Up to 512GB DDR5-8000 ECC (P-core only)
Max Memory (2DPC)	Up to 4TB DDR5-5200 ECC
Memory Voltage	1.1V
NVMe RAID Support	RAID 0/1/5/10 (Intel VROC key required)
Chipset	System on Chip (SoC)
Network Connectivity	Via AIOM (OCP / Add-on cards supported)
LAN Ports	1× RJ45 1GbE Dedicated BMC LAN (via DC-SCM)
USB Ports	2× USB 3.2 Gen1 Type-A (Rear)
Video Output	1× Mini-DisplayPort (Rear)
TPM Header	1× TPM Header
BIOS Type	AMI 32MB SPI Flash EEPROM
Management Software	SuperCloud Composer, SSM, SDO, TAS, SAA
Power Management	ACPI / APM
Security Hardware	TPM 2.0, Silicon Root of Trust (NIST 800-193)
Security Features	Secure Boot, Signed Firmware, Secure Updates, Firmware Recovery, Remote Attestation, BMC Protection, System Lockdown
PC Health Monitoring	CPU voltages, memory, chipset, fan tachometers, PWM fan control, temperature sensors
Chassis Form Factor	1U Rackmount
Chassis Model	CSE-MD101TS-R000NDP
Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	29.4″ (747 mm)
Package Dimensions	8.1″ × 23.8″ × 40.6″
Weight (Gross / Net)	47 lbs (21.3 kg) / 31 lbs (14.1 kg)
Color	Black
Front Panel Buttons	Power, UID
Front Panel LEDs	HDD, LAN1, LAN2, Power Failed, Power Status, System Info
Expansion Slots	2× PCIe 5.0 x16 FHHL + 1× PCIe 5.0 x16 AIOM (OCP 3.0)
Drive Bays (Default)	8× 2.5″ PCIe 5.0 x4 NVMe/SAS/SATA hot-swap
Drive Bays (Option A)	12 bays: 8× NVMe/SAS/SATA + 4× SAS/SATA
Drive Bays (Option B)	12× 2.5″ PCIe 5.0 x4 NVMe/SAS/SATA
M.2 Slots	2× M.2 PCIe 5.0 x2 (2280 / 22110)
System Cooling Fans	Up to 8× 40×40×56mm counter-rotating PWM fans
Air Shrouds	CPU air shroud, M.2 side air shroud
Power Supply	2× 1000W Redundant (1+1) Titanium 96% efficiency
PSU Dimensions	73.5 × 40 × 185 mm
PSU Input Voltage	800W: 100–127V AC / 1000W: 200–240V AC
+12V Output	Up to 83A (200–240V), 66.7A (100–127V)
12V Standby	2.1A
Output Type	Backplane gold-finger
