Проектор Sony VPL-FH65, 3LCD, WUXGA(1920x1200), 2000:1, 6000 lm, HDMI, LAN, DVI, RS232C

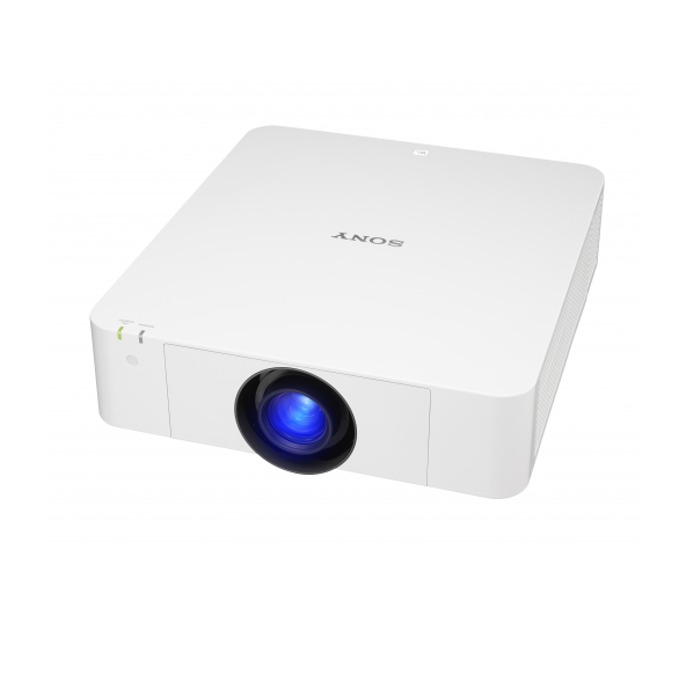

Sony VPL-FH65

Bring presentations to life with impressive brightness and picture quality - plus easy, flexible integration and powerful picture features.

The VPL-FH65 installation projector is ideal for a wide range of business, education and entertainment applications. The energy-efficient High Pressure Mercury (HPM) lamp source is teamed with Sony's advanced BrightEra 3LCD projection engine, delivering extremely bright, detail-packed WUXGA resolution images with generous 6000 lumens brightness and rich, stable colours. Reality Creation and Contrast Enhancer technologes fine-tune image quality even further to assure exceptional clarity, realism and punch with every presentation.

With a stylish blend-in design, neat cable management and low fan noise, the VPL-FH65 integrates smoothly into almost any environment – from academic institutions, corporate, medical training and public sector organisations to visitor attractions and retail spaces. Easy set-up's assisted by a friendly new installation menu.


Display system
3 LCD system

Display device

Size of effective display area
0.76” (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of pixels
6,912,000 (1920 x 1200 x 3) pixels

Projection lens *1

Focus
Powered

Zoom - Powered/Manual
Powered (Approx. 1.6 x)

Throw ratio
1.39:1 to 2.23:1

Lens shift - Powered/Manual
Powered

Lens shift - Range Vertical
-5.0%, +60%

Lens shift - Range Horizontal
+/- 32%

Light source

Type
Ultra high pressure mercury lamp

Wattage
370 W type

Recommended lamp replacement time *2

Lamp mode: High
3000 H

Lamp mode: Low
4000 H

Filter cleaning / replacement cycle (Max.)
20000 H (service maintenance)

Screen size
40" to 600" (1.02 m to 15.24 m) (measured diagonally)

Light output

Lamp mode: High
6000 lm

Lamp mode: Standard
4400 lm

Color light output

Lamp mode: High
6000 lm

Lamp mode: Standard
4400 lm

Contrast ratio (full white / full black)
2000:1

Displayable scanning frequency

Horizontal
15 kHz to 92 kHz

Vertical
48 Hz to 92 Hz

Display resolution

Computer signal input
Maximum display resolution: 1920 x 1200 dots *4

Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p, 1080/24p

Color system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone correction (Max.)

Horizontal
+/- 30 degrees

Vertical
+/- 30 degrees

OSD language
24-language (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Indonesian, Hungarian, Greek)

INPUT OUTPUT (Computer/Video/Control)

INPUT A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack

INPUT B
DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with INPUT A

INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support

INPUT D
HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)

VIDEO IN
Video input connector: BNC
Audio input connector: Shared with INPUT A

OUTPUT A
Monitor output for INPUT A connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack

OUTPUT B
Monitor output for INPUT B connector: DVD-D 24-pin (single link), HDCP not supported
Audio output Monitor out connector: Stereo mini jack

REMOTE
D-sub 9-pin (male) / RS232C

LAN
RJ45, 10BASE-T/100BASE-TX

IR (Control S)
Stereo mini jack, Plug in power DC5V

Acoustic Noise

Lamp mode: Standard
28 dB

Operating temperature / Operating humidity
0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation)

Storage temperature / Storage humidity
-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)

Power requirements
AC 100 V to 240 V, 5.0 A to 2.1 A, 50 Hz / 60 Hz

Power consumption

AC 100 V to 120 V
Lamp mode: High: 498 W

AC 220 V to 240 V
Lamp mode: High: 483 W

Power Consumption (Standby Mode)

AC 100 V to 120 V
0.5 W (when “Standby mode” is set to “Low”)

AC 220 V to 240 V
0.5 W (when “Standby mode” is set to “Low”)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V
15.0 W (LAN)

15.0 W (HDBaseT)
15.0 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")

AC 220 V to 240 V
13.3 W (LAN)

13.3 W (HDBaseT)
13.3 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes

Heat dissipation

AC 100 V to 120 V
1699 BTU/h

AC 220 V to 240 V
1648 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions)
460 x 169 x 515 mm
18 1/8 x 6 21/32 x 20 9/32 inches

Mass
Approx. 13 kg (28 lb)
