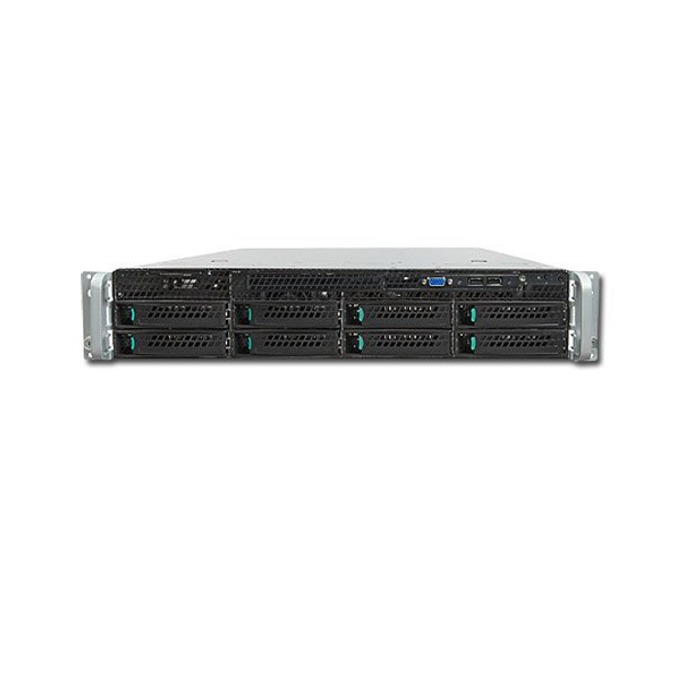

Server Intel R2308GZ4GC, 24x DDR3 ECC, 8x 3.5" HDD, 2U Rack, поддържа 2x Intel Xeon E5-2600 & E5-2600 v2, 10x SATA, RAID (1,0,10), 4x Lan 1000, 3г. гаранция

Server Intel R2308GZ4GC


Specifications

Essentials
Launch Date Q1'12
Status Launched
Expected Discontinuance 2018
Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Compatible Product Series Intel® Xeon® Processor E5-2600 Product Family & Intel® Xeon® Processor E5-2600 v2 Product Family
Chassis Form Factor 2U Rack
Chassis Dimensions 16.93" x 27.95" x 3.44"
Board Form Factor Custom 16.5" x 16.5"
Rack Rails Included Yes
Socket Socket R
Datasheet Link
System Board Intel® Server Board S2600GZ
Board Chipset Intel® C602 Chipset (Intel® BD82C602 PCH)
Description An integrated 2U system featuring an Intel® Server Board S2600GZ4 supporting eight 3.5” hot-swap drives, quad 1 GbE LAN, 24 DIMMs, two 750W redundant power supplies, enterprise class I/O, Intel® RMM4, and Intel® RAID C600 Upgrade Key RKSATA8.
Target Market Cloud/Datacenter
Rack-Friendly Board Yes
Power Supply 750 W
Power Supply Type AC
# of Power Supply Included 2
Redundant Fans Yes
Redundant Power Supported Yes
Heat Sink 2
Heat Sink Included Yes
Backplanes Included
Included Items (1) Intel® Server Board S2600GZ4, (8) 3.5” Hot-swap drive carriers, (1) Backplane, (2) 750W Redundant power supply, (2) Passive CPU heat sinks, Redundant and hot-swap cooling fans, (1) Air duct, (1) Standard control panel, Front 1 x VGA and 2 x USB in dedicated tray, Support for 2 x 2.5” SSD mounting on Air duct, (2) Risers with 3 PCIe x8 slots on each (2 x FHFL, 1 x FHHL), (1) Intel® RAID C600 Upgrade Key RKSATA8, (1) Intel® Remote Management Module 4, (1) Value rail kit, (2) SFF8087 to SFF8087 cables 730mm
# of Front Drives Supported 8
Front Drive Form Factor Hot-swap 2.5" or 3.5"
Additional Information URL Link

-
Memory Specifications
Memory Types DDR3 ECC UDIMM 1333, 1600/ RDIMM 1066,1333,1600,1866/ LRDIMM 1333, 1600, 1866
# of DIMMs 24
Max Memory Size (dependent on memory type) 768 GB
-
Graphics Specifications
Integrated Graphics ‡ Yes
-
Expansion Options
PCIe x16 Gen 3 2
Connector for Intel® I/O Expansion Module 1
Connector for Intel® Integrated RAID Module 1
-
I/O Specifications
# of USB Ports 6
Total # of SATA Ports 10
RAID Configuration Software RAID 1,0,10 optional 5
# of Serial Ports 2
Integrated LAN 4x 1GbE
# of LAN Ports 4
Optical Drive Support Yes
Firewire Yes
Integrated SAS Ports 0
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated InfiniBand* No
-
Package Specifications
Max CPU Configuration 2
-
Advanced Technologies
Intel® Remote Management Module Support Yes
Integrated BMC with IPMI IPMI 2.0
TPM Version 1.2
Intel® Node Manager Yes
Intel® On-Demand Redundant Power Yes
Intel® Advanced Management Technology Yes
Intel® Server Customization Technology Yes
Intel® Build Assurance Technology Yes
Intel® Efficient Power Technology Yes
Intel® Quiet Thermal Technology Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology No
Intel® Rapid Storage Technology enterprise Yes
