Server Intel R1304BTSSFANR, 4x DDR3 ECC, 4x 3.5" HDD, 1U Rack, поддържа Intel Xeon E3-1200/E3-1200 V2 & Intel Core i3 2100/i3-3200, 6x SATA RAID (1,0,10,5), 2x Lan 1000, 3г. гаранция

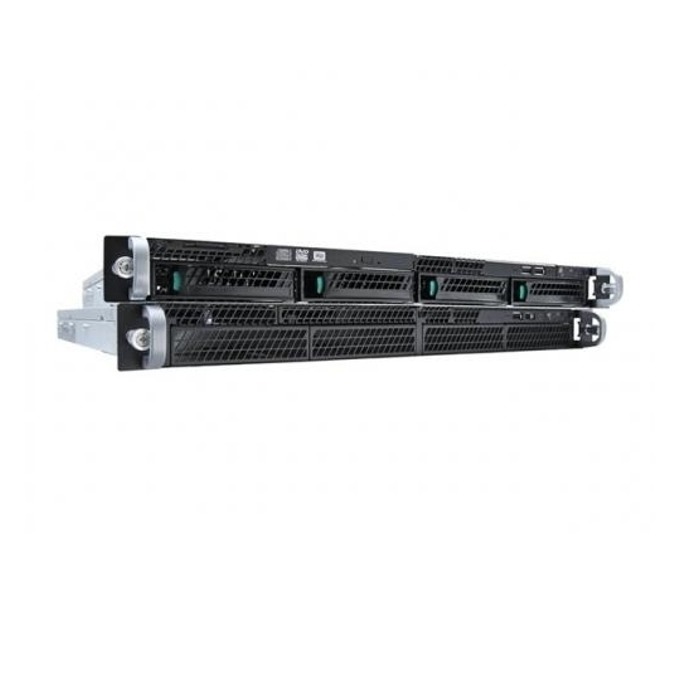

Server Intel R1304BTSSFANR

Specifications
-
Essentials
Launch Date Q2'12
Status Launched
Expected Discontinuance 2014
Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Compatible Product Series Intel® Xeon® Processor E3-1200/E3-1200 V2 Family; Intel® Core™ i3 2100/i3-3200 Processor Series
Chassis Form Factor 1U Rack
Chassis Dimensions 17.24" x 21.8" x 1.75"
Board Form Factor microATX
Rack Rails Included No
Socket LGA1155
Datasheet Link
System Board Intel® Server Board S1200BTS
Board Chipset Intel® C202 Chipset (Intel® BD82C202 PCH)
Description A single socket Intel® Server Board S1200BTSR integrated into a 1U rack chassis, supporting four fixed HDDs, and a 250W non-redundant power supply.
Target Market Small Business/1st Server
Rack-Friendly Board Yes
Power Supply 250 W
Power Supply Type AC
# of Power Supply Included 1
Redundant Fans No
Redundant Power Supported No
Heat Sink 1
Heat Sink Included Yes
Backplanes No
Included Items (1) Intel® Server Board S1200BTSR with Intel® C202 chipset, (4) fixed 3.5” drive carriers, (1) 250W Fixed power supply, (1) Passive CPU heat sink, (3) Non-redundant non-hotswap fans, (1) Riser with one PCIe* x8 wired slot (one x8 connector), (4) SATA cables, (1) Cable for Optical drive bay, (1) Rack handle set
# of Front Drives Supported 4
Front Drive Form Factor Fixed 2.5" or 3.5"
Additional Information URL Link



Memory Specifications

Memory Types DDR3 ECC UDIMM 1333, 1600
# of DIMMs 4
Max Memory Size (dependent on memory type) 32 GB


Graphics Specifications
Integrated Graphics ‡ Yes


Expansion Options
PCIe x8 Gen 2.x 1


I/O Specifications
# of USB Ports 7
Total # of SATA Ports 6
RAID Configuration Intel® RST 0, 1, 10, 5; ESRT2 0, 1, 10, optional 5
# of Serial Ports 2
Integrated LAN 2x 1GbE
# of LAN Ports 2
Optical Drive Support Yes
Firewire No
Integrated SAS Ports 0
Embedded USB (eUSB) Solid State Drive Option No
Integrated InfiniBand* No
-
Package Specifications
Max CPU Configuration 1
-
Advanced Technologies
Intel® Remote Management Module Support No
Integrated BMC with IPMI No
TPM Version 1.2
Intel® Node Manager No
Intel® On-Demand Redundant Power No
Intel® Advanced Management Technology No
Intel® Server Customization Technology No
Intel® Build Assurance Technology No
Intel® Efficient Power Technology No
Intel® Quiet Thermal Technology No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology Yes
Intel® Rapid Storage Technology enterprise No
