Видео карта AMD Radeon RX 7900 XT, 20GB, Sapphire PULSE, PCI-E 4.0, GDDR6, 320-bit, DisplayPort, HDMI

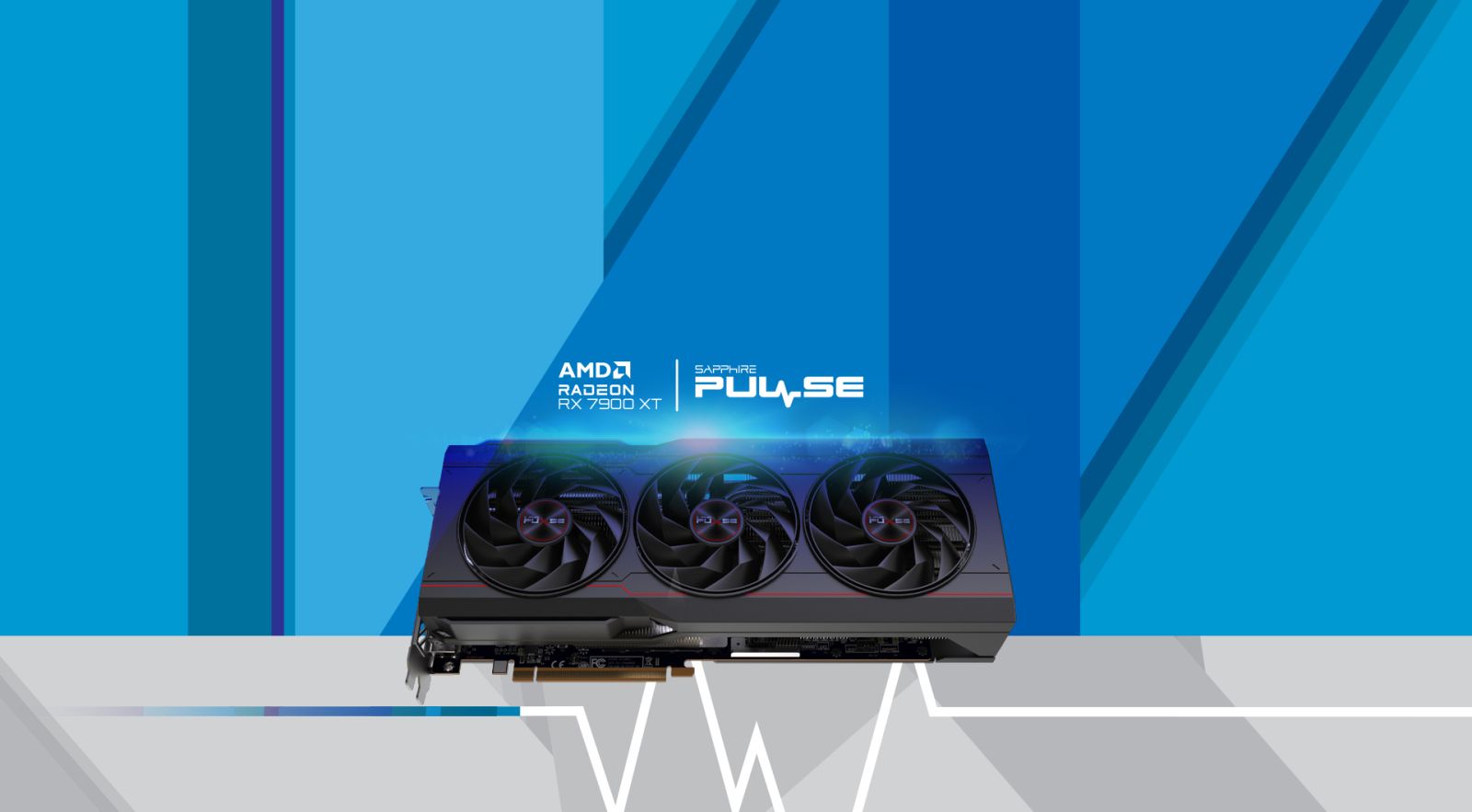

Sapphire PULSE AMD Radeon RX 7900 XT 20GB

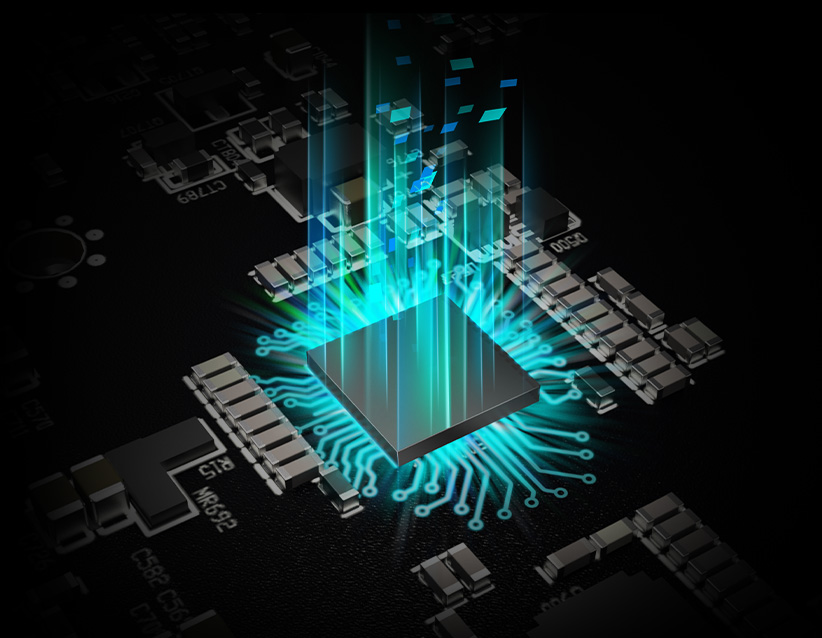

	Digital Power Design SAPPHIRE NITRO+ & PULSE AMD Radeon RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency

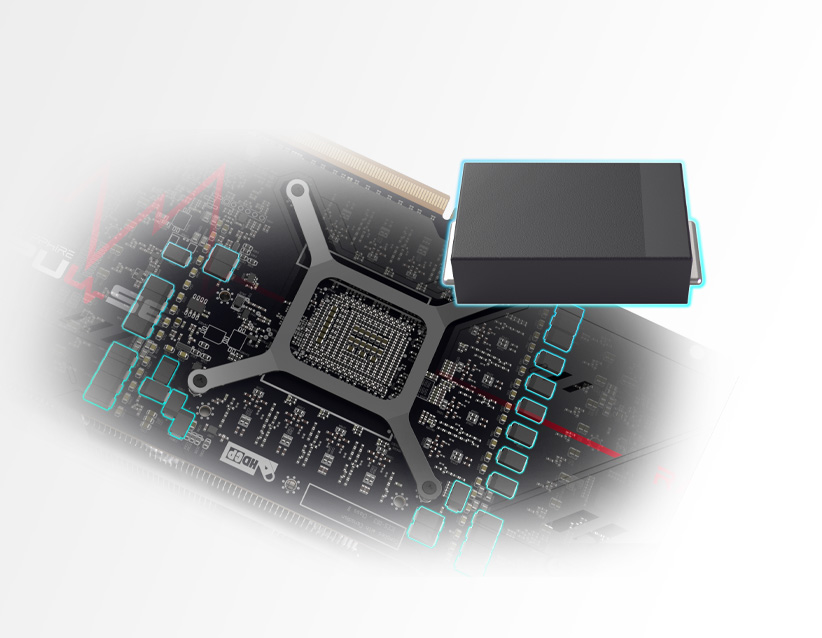

	Ultra High Performance Conductive Polymer Aluminum Capacitor The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

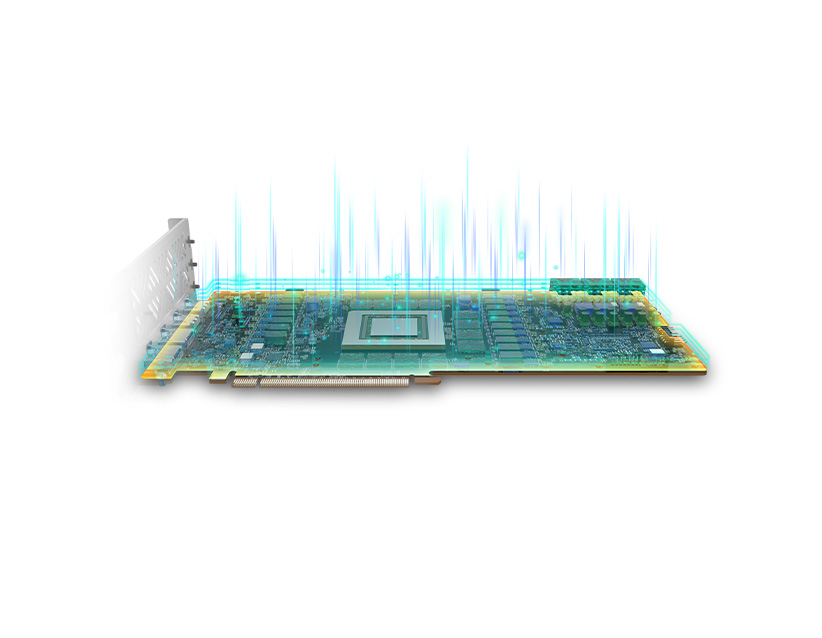

	High TG Copper PCB The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.







Tech specs:

GPU

AMD Radeon RX 7900 XT Graphics Card
5nm GPU
AMD RDNA 3 Architecture

Engine Clock

• Boost Clock: Up to 2450 MHz
• Game Clock: Up to 2075 MHz



Stream Processors 5376

Compute Units 84 CU (with RT+AI Accelerators)

Infinity Cache 80MB

Ray Accelerators 84

Memory Size/Bus 20GB/320 bit GDDR6

Memory Clock 20 Gbps Effective

Displays Maximum 4 Displays

Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320



Interface PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort



BIOS Support

• UEFI

Game Index 4K

Sapphire Features

• Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• High TG Copper PCB
• Optimized Composite Heatpipe
• Tri-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• Angular Velocity Fan Blade
• Dual-Ball Bearing Fans
• TriXX Supported
• TriXX Boost



AMD Features

• AMD RDNA 3 Architecture
• 84 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
• 80MB AMD Infinity Cache Technology
• DisplayPort 2.1Support
• AMD Radiance Display Engine
• 20GB GDDR6 on 320-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD Link
• AMD FreeSync technology



Cooler Type 3 Fans

Form Factor

2.7 slot, ATX
Dimension: 313(L)X 133.75(W)X 52.67 (H)mm

Power Consumption 331W Total Board Power

OS Linux, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 750 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
