Видео карта AMD Radeon RX 7800 XT, 16GB, Sapphire Pulse, PCI-E 4.0, GDDR6, 256-bit, DisplayPort, HDMI

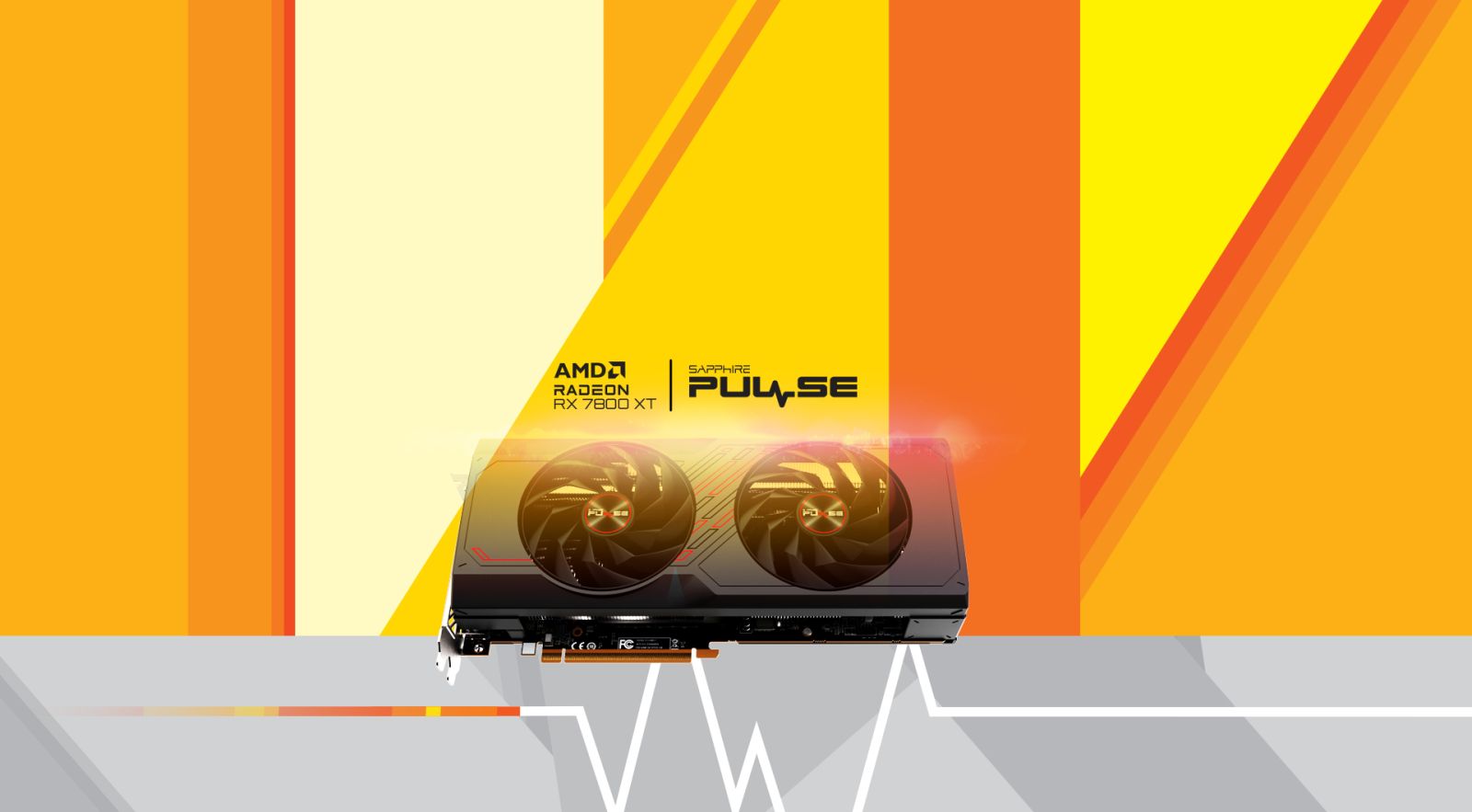

Sapphire PULSE AMD Radeon RX 7800 XT 16GB



Digital Power Design   SAPPHIRE NITRO+ & PULSE AMD Radeon RX 7800 Series are designed with digital power which provides accurate power control and excellent power efficiency
Angular Velocity Fan Blade   The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.



Config specs:

GPU

AMD Radeon RX 7800 XT Graphics Card

5nm GPU
AMD RDNA 3 Architecture



Engine Clock

• Boost Clock: Up to 2430 MHz
• Game Clock: Up to 2124 MHz



Stream Processors

3840



Compute Units

60 CU (with RT+AI Accelerators)



Infinity Cache

64MB



Ray Accelerators

60



Memory Size/Bus

16GB/256 bit GDDR6



Memory Clock

19.5 Gbps Effective



Displays

Maximum 4 Displays



Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320



Interface

PCI-Express 4.0 x16



Output

• 2x HDMI
• 2x DisplayPort



BIOS Support

• UEFI



Game Index

4K



Sapphire Features

• Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• High TG Copper PCB
• Optimized Composite Heatpipe
• Dual-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• Angular Velocity Fan Blade
• Dual-Ball Bearing Fans
• TriXX Supported
• TriXX Boost



AMD Features

• AMD RDNA 3 Architecture
• 60 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
• 64MB AMD Infinity Cache Technology
• DisplayPort 2.1Support
• AMD Radiance Display™ Engine
• 16GB GDDR6 on 256-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Editio
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD Link
• AMD FreeSync technology



Cooling

2 Fans



Form Factor

2.5 slot, ATX


Dimension

280(L)X 128.75(W)X 52.57 (H)mm



Power Consumption

266W Total Board Power



OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required



System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
