Видео карта AMD Radeon RX 7700 XT, 12GB, Sapphire Pulse, PCI-E 4.0, GDDR6, 192-bit, DisplayPort, HDMI

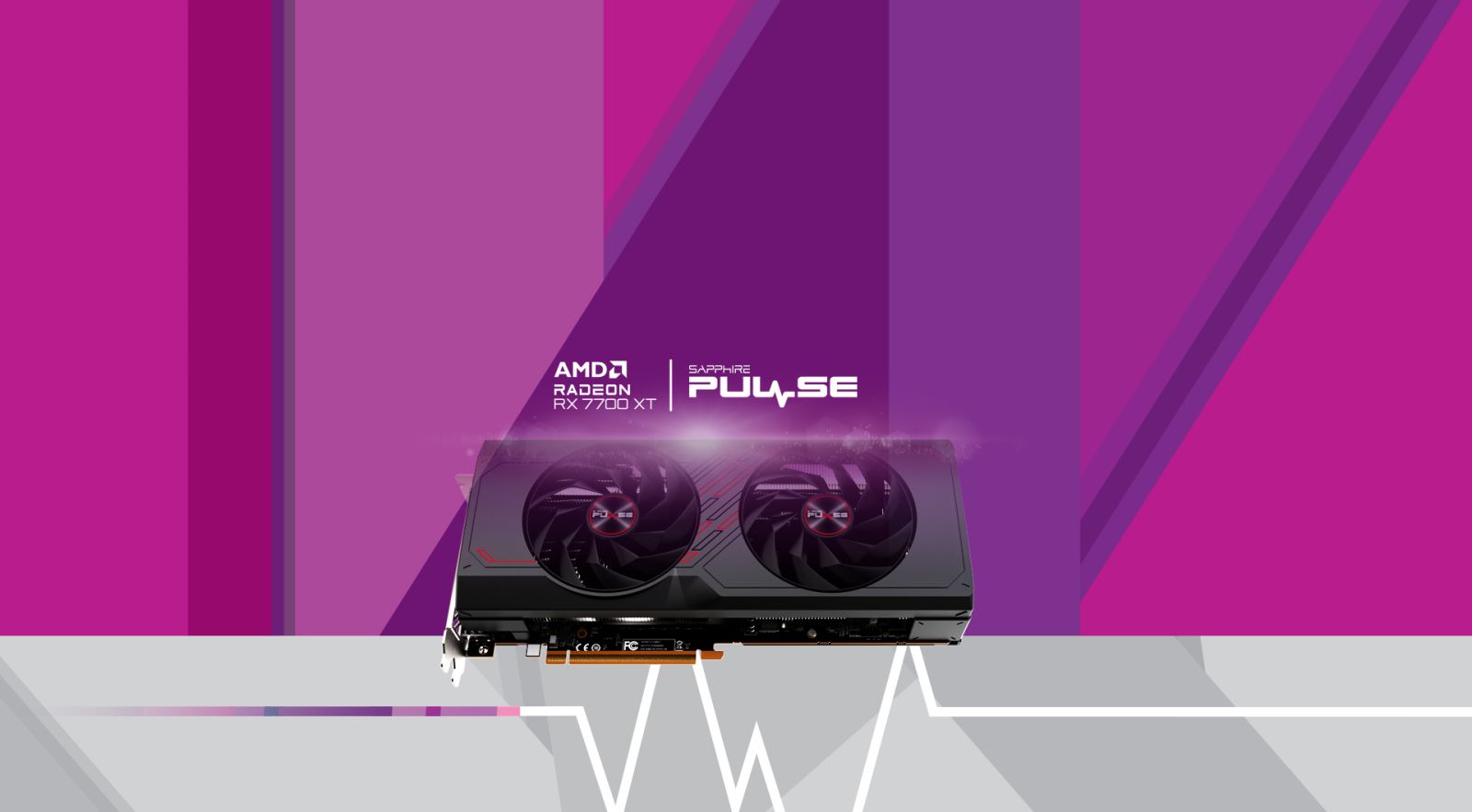

Sapphire PULSE AMD Radeon RX 7700 XT 12GB

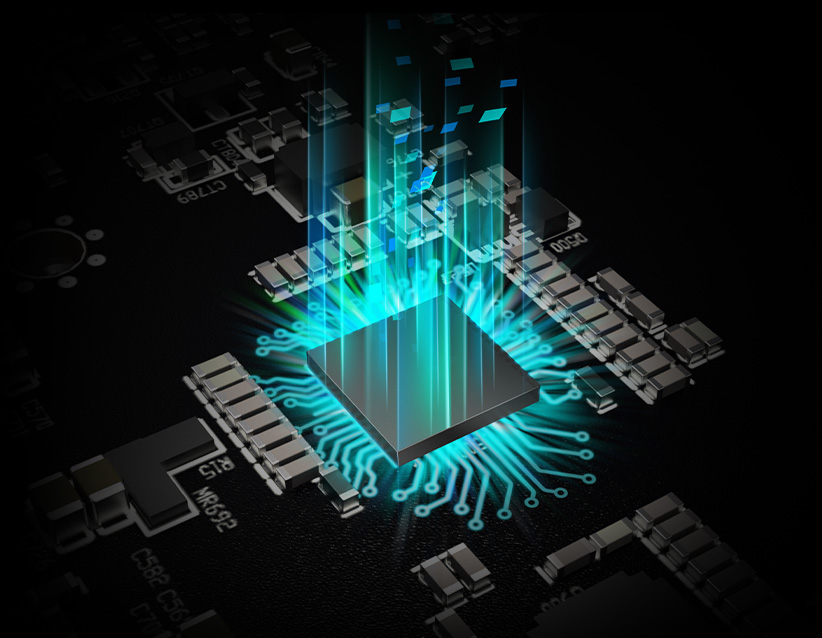

Digital Power Design

SAPPHIRE NITRO+ & PULSE AMD Radeon RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency



Digital Power Design   SAPPHIRE NITRO+ & PULSE AMD Radeon RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency.

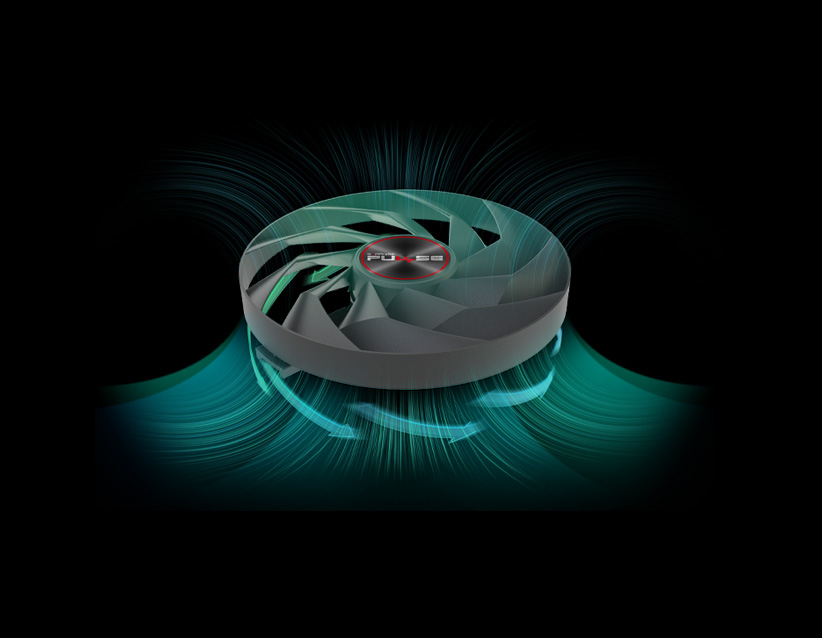

Angular Velocity Fan Blade   The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.



Tech specs:

GPU

AMD Radeon RX 7700 XT Graphics Card


5nm GPU
AMD RDNA 3 Architecture



Engine Clock

• Boost Clock: Up to 2544 MHz
• Game Clock: Up to 2171 MHz



Stream Processors

3456



Compute Units

54 CU (with RT+AI Accelerators)



Infinity Cache

48MB



Ray Accelerators

54



Memory Size/Bus

12GB/192 bit GDDR6



Memory Clock

18 Gbps Effective



Displays

Maximum 4 Displays



Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320



Interface

PCI-Express 4.0 x16



Output

• 2x HDMI
• 2x DisplayPort



BIOS Support

• UEFI



Game Index

1440P



Sapphire Features

• Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• High TG Copper PCB
• Optimized Composite Heatpipe
• Dual-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• Angular Velocity Fan Blade
• Dual-Ball Bearing Fans
• TriXX Supported
• TriXX Boost



AMD Features

• AMD RDNA 3 Architecture
• 54 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
• 48MB AMD Infinity Cache Technology
• DisplayPort 2.1Support
• AMD Radiance Display Engine
• 12GB GDDR6 on 192-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD Link
• AMD FreeSync technology



Cooling

2 Fans



Form Factor

2.5 slot, ATX


Dimension

280(L)X 128.75(W)X 52.57 (H)mm



Power Consumption

230W Total Board Power



OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required



System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
