Видео карта AMD Radeon RX 7600 XT, 16GB, Sapphire PULSE, PCI-E 4.0, GDDR6, 128-bit, DisplayPort, HDMI

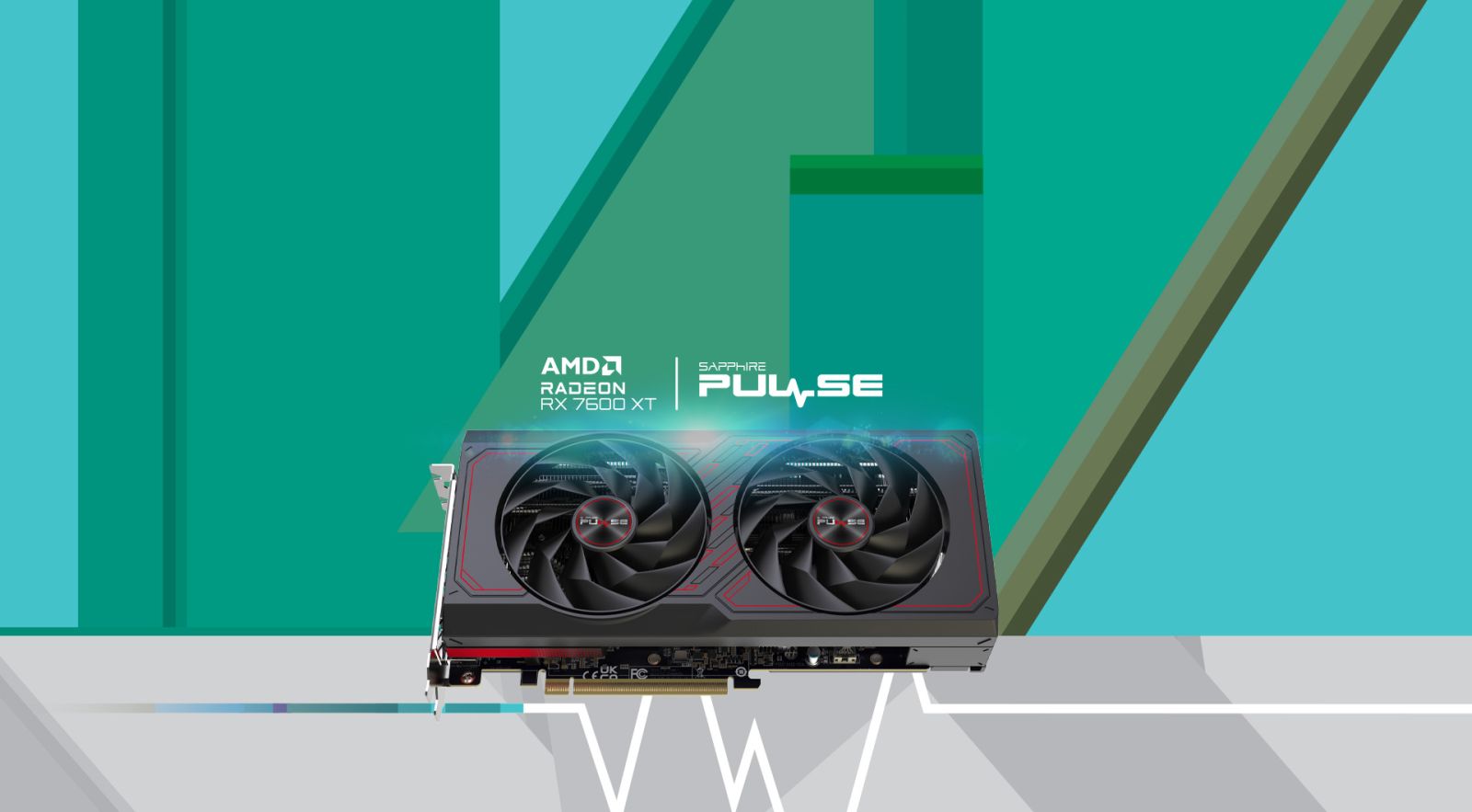

Sapphire PULSE AMD Radeon RX 7600 XT 16GB

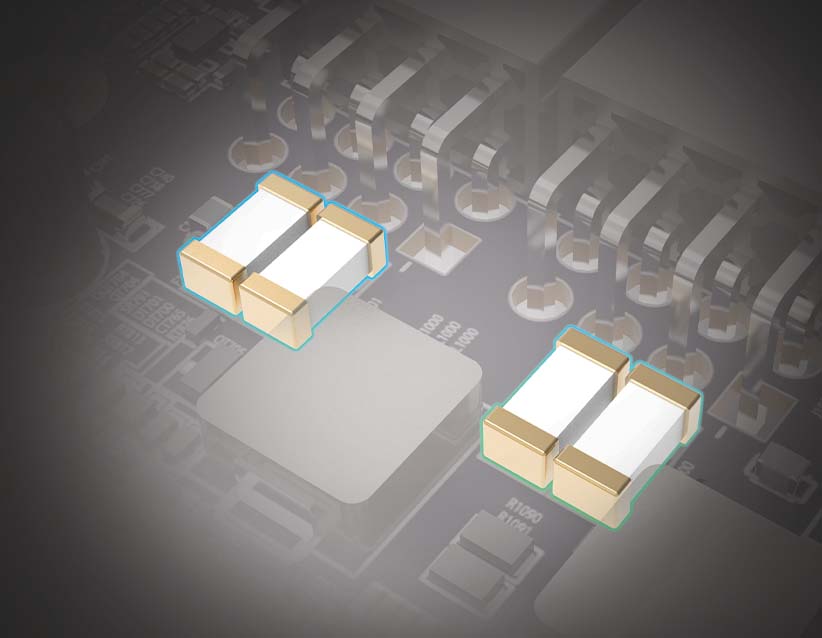

	Fuse Protection In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

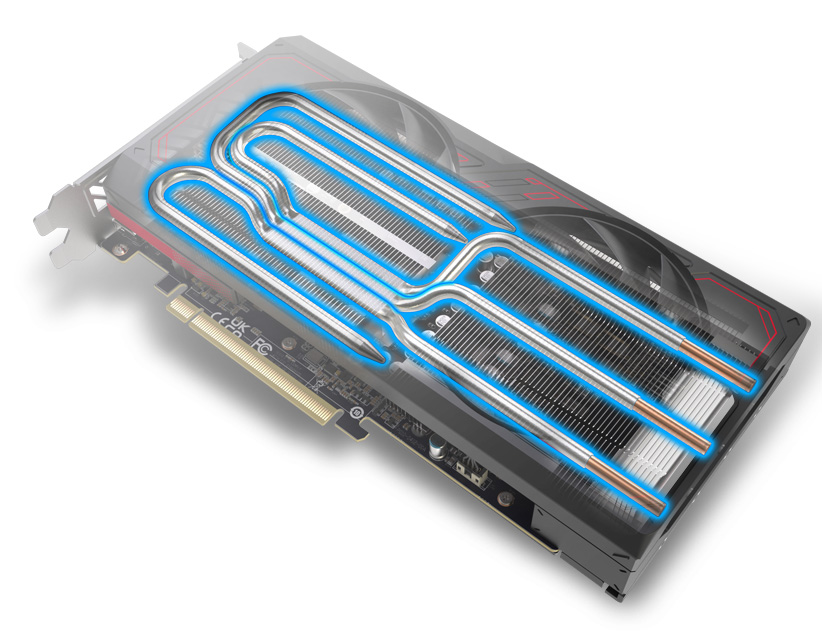

	Optimized Composite Heatpipe The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

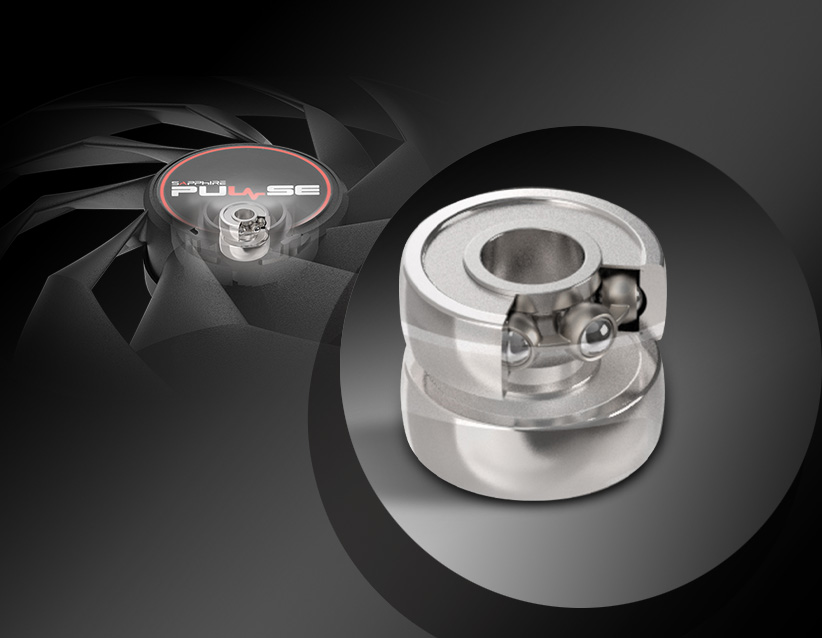

	Two-Ball Bearing These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.





Tech specs:

GPU

AMD Radeon RX 7600 XT Graphics Card
AMD RDNA 3 Architecture



Engine Clock

• Boost Clock: Up to 2810 MHz
• Game Clock: Up to 2539 MHz



Stream Processors 2048

Compute Units 32 CU

Infinity Cache 32MB

Ray Accelerators 32

AI Accelerator 64

Memory Size/Bus 16GB/128 bit GDDR6

Memory Clock 18 Gbps Effective

Displays Maximum 4 Displays

Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface PCI-Express 4.0 x8

Output

• 2x HDMI
• 2x DisplayPort



BIOS Support

• UEFI



Game Index

1080P Ultimate



Sapphire Features

• Fuse Protection
• Dual-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• Two-Ball Bearing Fans
• Optimized Composite Heatpipe
• TriXX Supported
• TriXX Boost



AMD Features

• AMD RDNA 3 Architecture
• DirectX 12 Ultimate Support
• AMD Smart Access Memory
• AMD Infinity Cache
• PCI Express 4.0 Support
• AMD FreeSync Technology
• DisplayPort 2.1 with DSC
• HDMI Support
• Video Streaming up to 8K
• AMD Radeon VR Ready Premium
• AMD Radeon Image Sharpening
• AMD Radeon Anti-Lag
• AMD Software: Adrenalin Edition Application
• Game Driver Optimizations



Cooler Type

2 Fans



Form Factor

2.2 slot, ATX
Dimension: 250(L)X 129.25(W)X 44.56 (H)mm

Power Consumption 192W Total Board Power

OS Linux, Windows 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 600 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
