Видео карта AMD Radeon RX 7700 XT, 12GB, Sapphire Nitro+, PCI-E 4.0, GDDR6, 192-bit, DisplayPort, HDMI

Sapphire NITRO+ AMD Radeon RX 7700 XT 12GB



	12GB of GDDR6 memory   AMD Radiance Display Engine   DisplayPort 2.1   AMD FidelityFX Super Resolution   AMD Radeon Super Resolution   1440P and Beyond

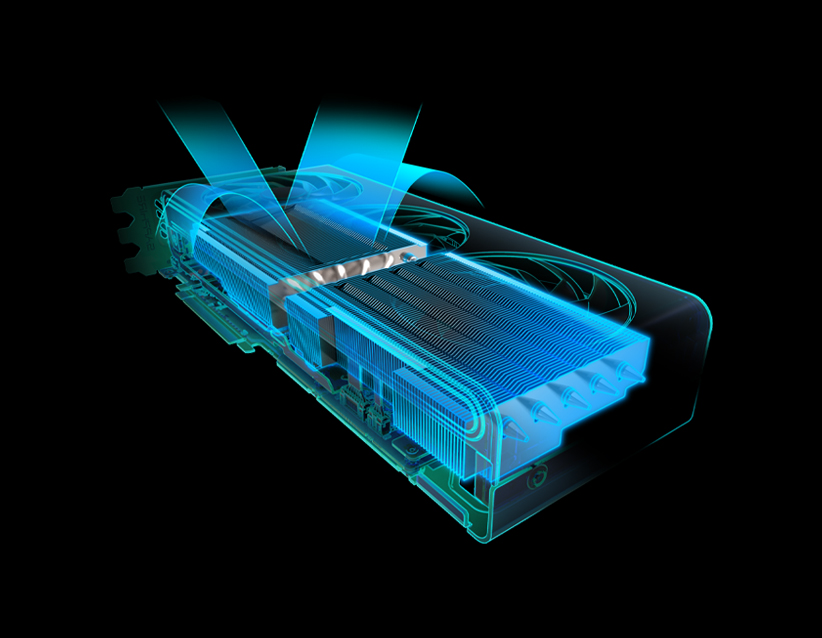

WAVE Fin Design & V-Shape Fin Design for GPU cooling   The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise. The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.

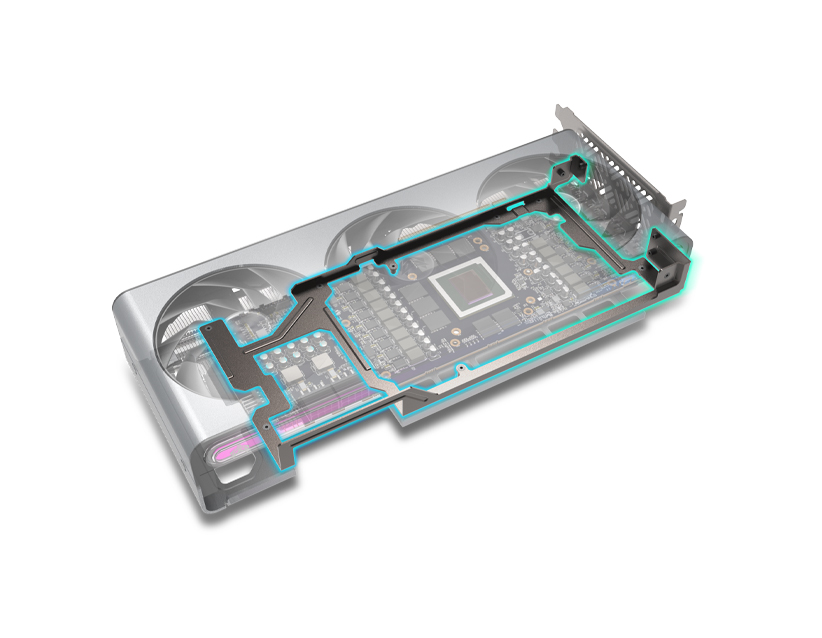

	Cold Rolled Steel Frame   Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon RX 7700 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.
Digital Power Design   SAPPHIRE NITRO+ AMD Radeon RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency
	Assistive System Fan Control   When the temperature of the GPU increases, the graphics card fans speed up accordingly. To further help with cooling and heat dissipation, the Assistive System Fan Control feature in SAPPHIRE’s TriXX software controls the speed of a system fan to automatically increase at the same time as the graphics card fans, this assists in expelling the heated air from the entire system faster.

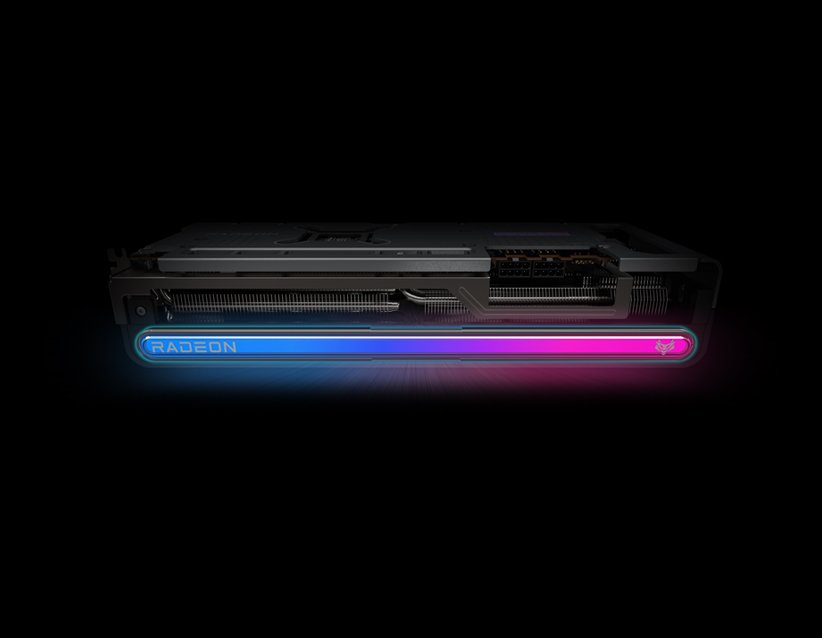

ARGB Light Bar   With tasteful shroud design augmented by ARGB LEDs, you can change the colors of the LED, for a customized design. This can be controlled via TriXX software. Choose from different modes including the colourful rainbow mode or turn off the LEDs.



Specs:

GPU

AMD Radeon RX 7700 XT Graphics Card
5nm GPU
AMD RDNA 3 Architecture



Engine Clock

• Boost Clock: Up to 2599 MHz
• Game Clock: Up to 2276MHz



Stream Processors

3456



Compute Units

54 CU (with RT+AI Accelerators)



Infinity Cache

48MB



Ray Accelerators

54



Memory Size/Bus

12GB/192 bit GDDR6



Memory Clock

18 Gbps Effective



Displays

Maximum 4 Displays



Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320



Interface

PCI-Express 4.0 x16



Output

• 2x HDMI
• 2x DisplayPort



BIOS Support

• Dual UEFI



Game Index

1440P



Sapphire Features

• Dual BIOS
• TriXX Software Switch
• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate with ARGB
• ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• Assistive System Fan Control
• Aluminum Alloy Frame
• Dedicated VRM Cooling
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization



AMD Features

• AMD RDNA 3 Architecture
• 54 AMD RDNA 3 Compute Units
• 48MB AMD Infinity Cache Technology
• DisplayPort 2.1 Support
• AMD Radiance Display Engine
• 12GB GDDR6 on 192-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD Link
• AMD FreeSync Technology



Cooling

3 Fans



Form Factor

3 slot, ATX

Dimension: 320(L)X 134.85(W)X 61.57 (H)mm



Power Consumption

252W Total Board Power



OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required



System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
