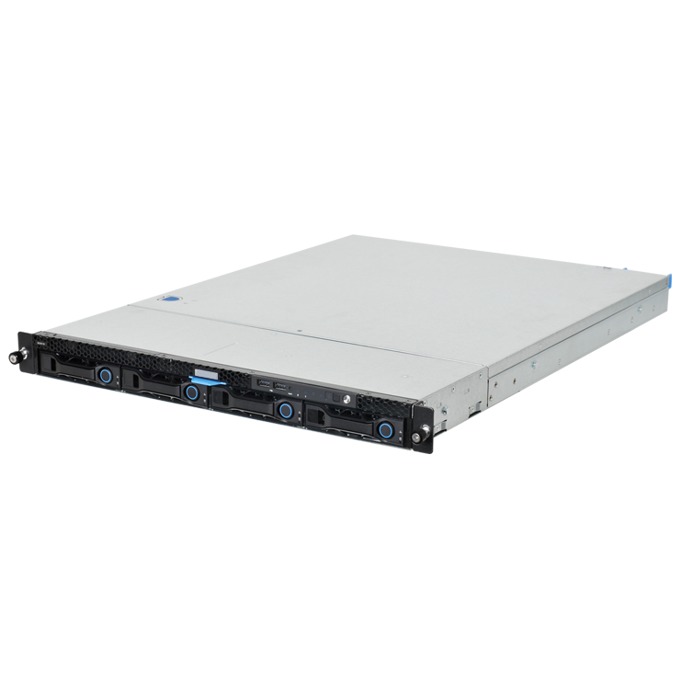

Barebone Сървър Quanta D51PS-1U, поддържа Intel Xeon processor E5-2600 v3/v4 Family, 16x DIMM DDR4 слота, Без твърд диск(4x 3.5" hot-plug HDD, 2x 2.5" fixed SSD), 1U Rackmount, 700W захранване

1U

17.244 x 1.7 x 24

438 x 43.2 x 609.6

Intel® C610

(4) 3.5" hot-plug, (2) 2.5" fixed SSD



16

Up to 512GB RDIMM

Up to 1024GB LRDIMM

2133/2400 MHz DDR4 RDIMM/ LRDIMM

32GB, 16GB, 8GB RDIMM

64GB, 32GB LRDIMM

(2) GbE ports (Intel® i350)

Dedicated (1) GbE management port

Please refer to our Compatible Component List for more information

3.5" SKU: (2) USB 2.0 ports

Intel® 610

(10) SATA 6Gb/s ports

SATA RAID 0, 1, 10

Please refer to our Compatible Component List for more information

700W AC, Redundant, 86 mm (Platinum)

Support (2) SATADOM

(5) dual rotor fans (9+1 redundant)

Integrated AST2400 with 8MB DDR3 video memory

IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager

(QSM)/ Quanta DataCenter Manager(QDCM) (optional) support

(2) USB 3.0 ports

(1) VGA port

(1) RS232 serial Port

(2) 1 GbE RJ45 port

(1) GbE RJ45 management port

(1) ID LED

Operating temperature: 5°C to 40°C (41°F to 104°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 90%RH

Yes

(With TPM 1.2 / 2.0 option)

18.46 (kg)

40.70 (lbs)

Intel® Xeon® processor E5-2600 v3 product family

Intel® Xeon® processor E5-2600 v4 product family

135W

2 Processors

6.4 / 8.0/ 9.6 GT/s

Up to 45MB
